Bussmann Fusetron™ FRS-R-4-1/2 Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 4.5 A, 600 VAC/300 VDC, 200 kA Interrupt, RK5 Class, Cartridge Body

Short Description

600 VAC, 300 VDC, 4-1/2 A, Ferrule with Grooved Ring Terminal, Class RK5, 10 Sec Time Delay, UL Power Fuse

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4.5 A, 600 VAC/300 VDC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size

MFG #: FRS-R-4-1/2

EECO #: BUFRSR41/2

Brand: Bussmann
UPC #: 051712508216
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Approval
UL 248-12, CSA C22.2, CE
Material
Fiberglass
Application
Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects, Safety and Security Systems
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Ferrule
Current Rating
4-1/2 Amp
Voltage Rating
600 VAC/300 VDC
Characteristics
10 Second Time Delay (at 500 Percent Rated Load), Dual Element, Non-Indicating
Interrupting Rating
200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
Type
Advanced Protection Current Limiting Energy Efficient Low Voltage
Series
FRS-R
Diameter
0.81 Inch
Amperage Rating
4.5
Features
  • Dual element feature provides the best time delay performance, allowing closer sizing and superior protection of motors and transformers
  • Closer sizing allows for smaller fuses and less costly switches
  • Class RK5 fuses with a 200 kA interrupt rating for use in a broad range of applications
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads and single phasing when sized properly
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • Time delay of 10 s (minimum) at 500% of rated current
  • The time delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses
  • Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
  • Provides current limitation to help protect downstream components from high fault currents
  • Gives motor running back-up protection to motors without extra cost
  • Renewable
  • 200 kA at 600 VAC rms symmetrical, 20 kA at 300 VDC interrupt rating
COBUSSE03249_1_3
COBUSSE03278_1_1_1_3_1_23_1_24
Qty Unit price
Ea
1 $20.74

Slqt
1 $20.74

Stpk
1 $207.40

Unit
1 $20.74
everwhere

Related Products

600 VAC/VDC, 30 A, Mersen EP 60306R Fuse Block, 1-Pole, Class R
Mersen

MFG #: 60306R
EECO #:GF60306R
Add to Cart
600 VAC/VDC, 30 A, Mersen S.A. 60308R Fuse Block, 3-Pole, Class R
Mersen

MFG #: 60308R
EECO #:GF60308R
Add to Cart

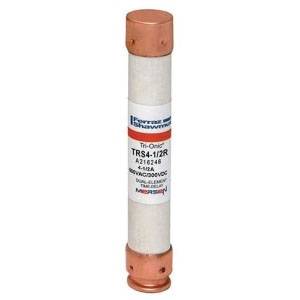

600 VAC/ VDC 4-1/2 A, Class RK5, Mersen EP TRS4-1/2R Tri-Onic® Low Voltage UL Power Fuse, Time Delay, Ferrule Terminal
