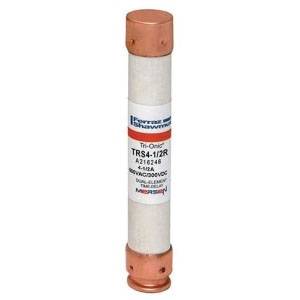

600 VAC/ VDC 4-1/2 A, Class RK5, Mersen EP TRS4-1/2R Tri-Onic® Low Voltage UL Power Fuse, Time Delay, Ferrule Terminal
Share Share Print Print
Mersen

600 VAC/ VDC 4-1/2 A, Class RK5, Mersen EP TRS4-1/2R Tri-Onic® Low Voltage UL Power Fuse, Time Delay, Ferrule Terminal

Short Description

0.81" x 5", 600 VAC 50/60 Hz, 600 VDC, 4-1/2 A, 200 kA AC/20 kA DC Interrupting, Fiberglass, Ferrule Terminal, Class RK5, Rejection, Time Delay, Low Voltage UL Power Fuse

Low Voltage UL Power Fuse; Type Class RK5; Characteristics Time Delay; Voltage Rating 600 Volt AC 50/60 Hertz, 600 Volt DC; Current Rating 4-1/2 Amp; Interrupting Rating 200 Kiloamp (AC), 20 Kiloamp (DC); Terminal Type Ferrule; Diameter 0.81 Inch; Length 5 Inch; Approval UL 248/248-12, CSA C22.2; Indication System Type SmartSpot; Body Style Rejection; Body/Insulating Material Fiberglass; Connection/Terminal Material Copper; Mounting Type Clip; Application Motor Circuit, Main, Feeder, Transformer, Branch Circuit, Service Entrance Equipment, General Purpose Equipment

MFG #: TRS4-1/2R

EECO #: GFTRS41/2R

Brand: Mersen
UPC #: 782001748722
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Approval
UL 248/248-12, CSA C22.2
Terminal Type
Ferrule
Current Rating
4-1/2 Amp
Voltage Rating
600 Volt AC 50/60 Hertz, 600 Volt DC
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (AC), 20 Kiloamp (DC)
Type
Class RK5
Diameter
0.81 Inch
Features
  • Time-delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors
  • Easy-to-read label for quick brand recognition and replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation
Mersen_00104_1_CAD
Mersen_00180_PF12_PF13_CAT
Qty Unit price
Ea
1 $21.54

Slqt
1 $21.54

Stpk
1 $21.54

Unit
1 $21.54
