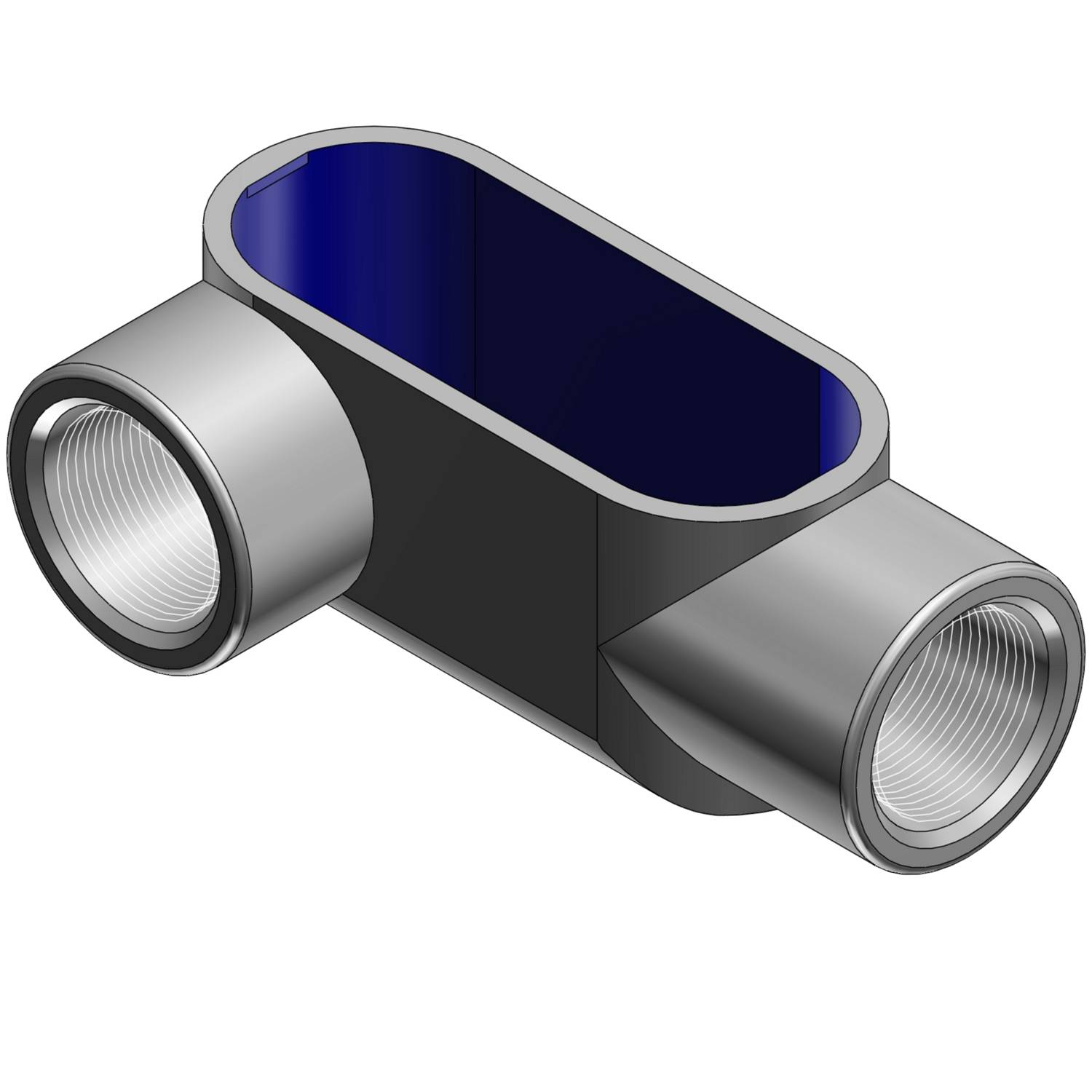

T&B® BlueKote® LR37 Type LR Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LR37 Type LR Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LR37 Type LR Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LR37 Type LR Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
Share Share Print Print
ABB

T&B® BlueKote® LR37 Type LR Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® BlueKote® Conduit Body, Type LR, 1 in Hub, 2 Hubs, 10.6 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6 in L x 2.6 in W x 1.9 in H
MFG #: LR37

EECO #: TBLR37

Brand: Thomas & Betts
UPC #: 786210924960
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Hub Size
1
Material
Iron
Form Type
Form 7
Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
90 Degree
Access Opening
Right Side
Number of Hubs
2
Connection Type
Tapered NPT
Type
Type LR
Capacity
10.6
Dimensions
6 in L x 2.6 in W x 1.9 in H
Features
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
