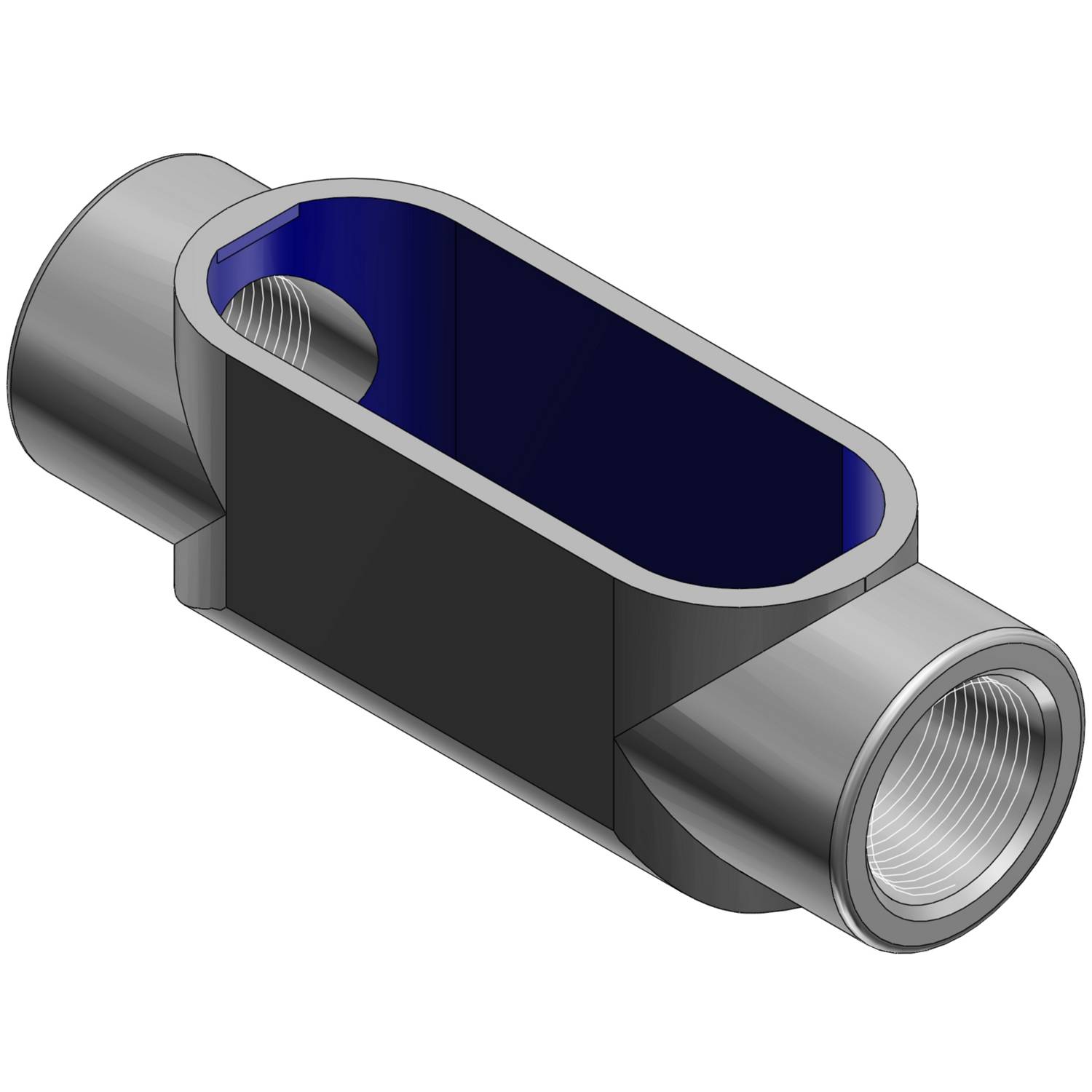

T&B® BlueKote® C37 Type C Straight Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C37 Type C Straight Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C37 Type C Straight Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C37 Type C Straight Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
Share Share Print Print
ABB

T&B® BlueKote® C37 Type C Straight Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® BlueKote® Conduit Body, Type C Straight, 1 in Hub, 10.6 cu-in Capacity, Form 7, Tapered NPT, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.75 in L x 1.8 in W x 1.9 in H
MFG #: C37

EECO #: TBC37

Brand: Thomas & Betts
UPC #: 786210924595
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Hub Size
1
Material
Malleable Iron
Form Type
Form 7
Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
Straight
Access Opening
Straight Side
Connection Type
Tapered NPT
Type
Type C Straight
Capacity
10.6
Dimensions
6.75 in L x 1.8 in W x 1.9 in H
Features
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Thru feed design
  • Zinc plated with epoxy powder coated finish
ABB_Thomas_Betts_00179_65_72_CAT
ABB_Thomas_Betts_00380_1_2_SPEC
IDW_DOCUMENT_c4cc90e904d8b3c9cac0fc5452d6acb094d863c9e7f252cbc381a8ac3422a062
T_B_C37_RoHS
