T&B® C100M 35 Type C Feed-Through Conduit Body, 1 in Hub, 12.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated

Short Description

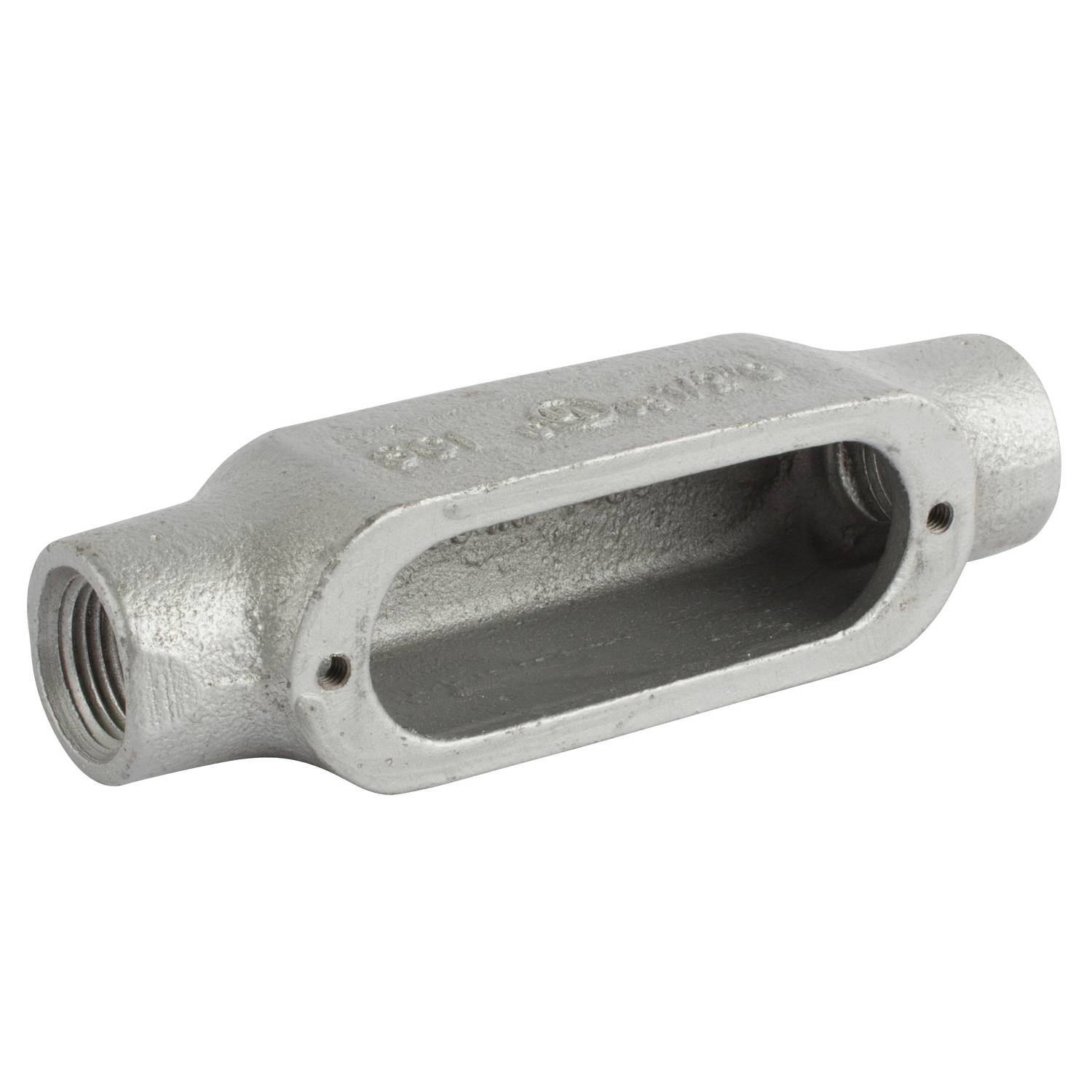

T&B® Conduit Body, Type C Feed-Through, Series: 35 Series, 1 in Hub, 2 Hubs, 12.5 cu-in, NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, 1.8 in L x 7.05 in W x 1.9 in H
MFG #: C100M

EECO #: TBC100M

Brand: Thomas & Betts
UPC #: 786210961941
Attributes
Features
Documents
Product Information
Attributes
Finish
Aluminum Acrylic Coated/Zinc Plated
UNSPSC
39131708
Hub Size
1
Material
Malleable Iron
Form Type
Series 35
Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
Straight
Access Opening
Straight Side
Number of Hubs
2
Connection Type
NPT
Type
Type C Feed-Through
Series
35 Series
Capacity
12.5
Includes
Stainless Steel Captive Screw
Dimensions
1.8 in L x 7.05 in W x 1.9 in H
Features
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact resistance and corrosion resistance
  • Features tapered, threaded NPT hubs
  • Suitable for use in concrete
  • Serve as pulling outlets during conductor installation
  • Provide easy access for splices in branch conductors
  • Make 90 deg bends in conduit runs
  • Act as mounting outlets for wiring devices and lighting fixtures
  • Provide access to conductors for maintenance and future system changes
ABB_Thomas_Betts_00179_65_82_CAT
ABB_Thomas_Betts_00375_1_2_SPEC
ABB_Thomas_Betts_00531_1_CAD
IDW_DOCUMENT_e8b130cf4de9aea727ba9766b19d3df0bf87bee2bd1b1f1d46012f059248bb6b
T_B_LR250M_Catalog
