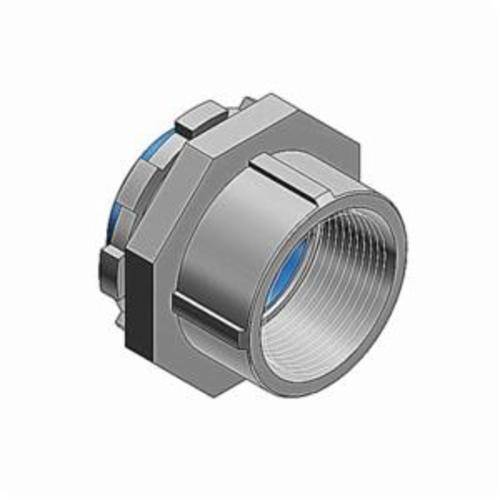

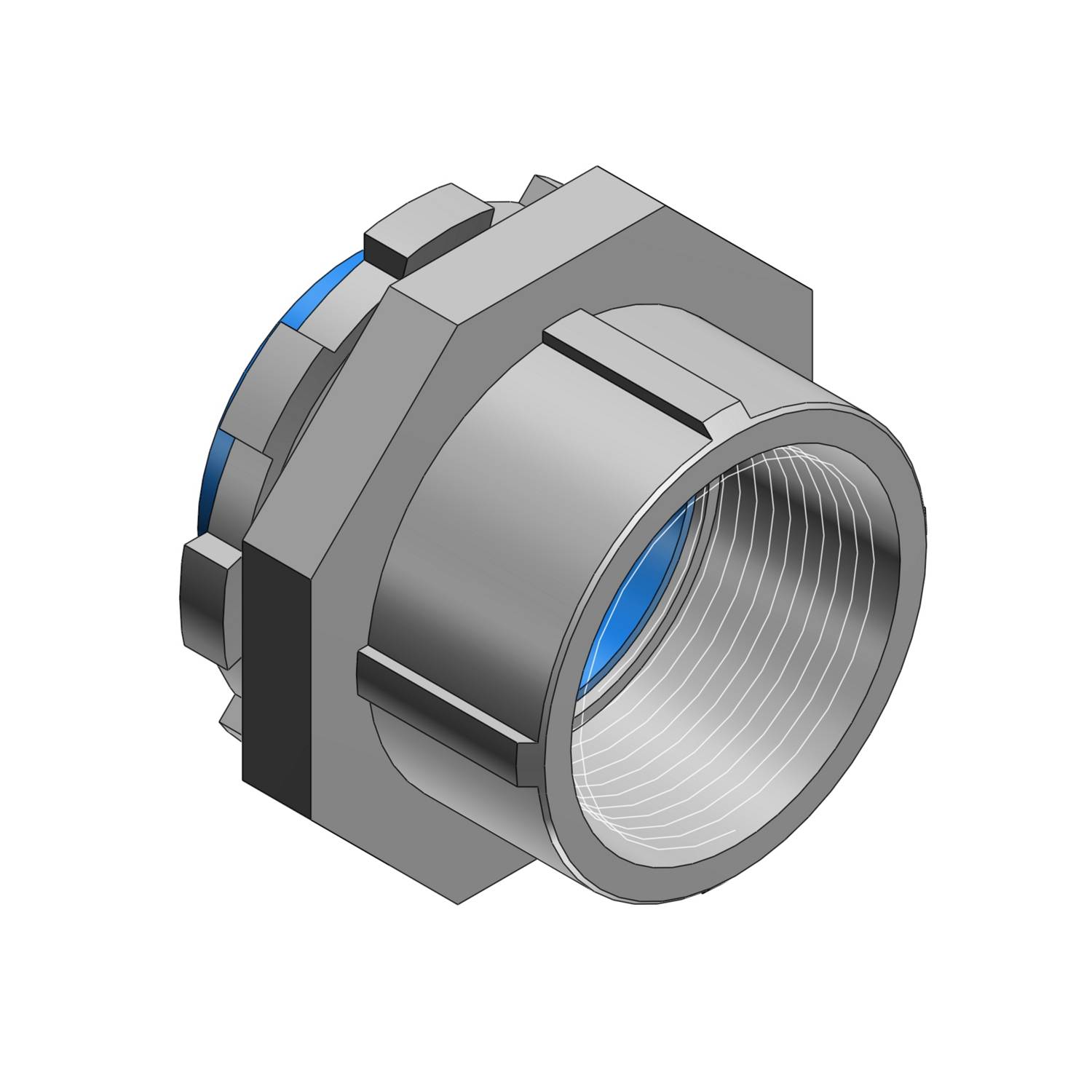

T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated
Share Share Print Print
ABB

T&B® Bullet® 372 Threaded Hub Connector, 1 in, For Use With Rigid/IMC Conduits, Steel, Electro-Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Bullet® Hub Connector, Threaded, 1 in, For Use With: Rigid/IMC Conduits, Steel, Electro-Zinc Plated
MFG #: 372

EECO #: TB372

Brand: Thomas & Betts
UPC #: 786210003726
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121311
Material
Steel
Application
For use to connect threaded metal conduit to a threadless opening in a box or enclosure
Ground Type
Locknut Grounding Screw
Throat Type
Nylon Insulated
Size
1
Type
Threaded
Suitable For Use With
Rigid/IMC Conduits
Constructional Feature
Rain/Dust/Water Tight
Features
  • Tapered internal threads for watertight/dusttight union
  • Threads relieved to prevent bottoming of conduit, ensuring sound assembly
  • Recessed sealing ring at box end, sealing ring captivated
  • Hardened steel/malleable iron/copper-free aluminum locknuts designed to provide high quality ground continuity, extended reach of locknut permits clamping on thin boxes and enclosures
  • Insulated throat, insulates conductors, prevents abrasion and thinning of conductor insulation, reduces wire pull effort
  • When used with neoprene o-ring, provides watertight threaded hub on enclosures
  • 105 deg C temperature
  • 5/16 in THK maximum wall
  • Rain tight, watertight and dusttight
  • Nylon insulated
ABB_Thomas_Betts_00179_24_CAT
ABB_Thomas_Betts_00273_1_2_SPEC
IDW_DOCUMENT_8e7a379d88540fbc5ee3ee4a9cda110b2f37ebf1fb016a8b15fd278cbcaf2b65
