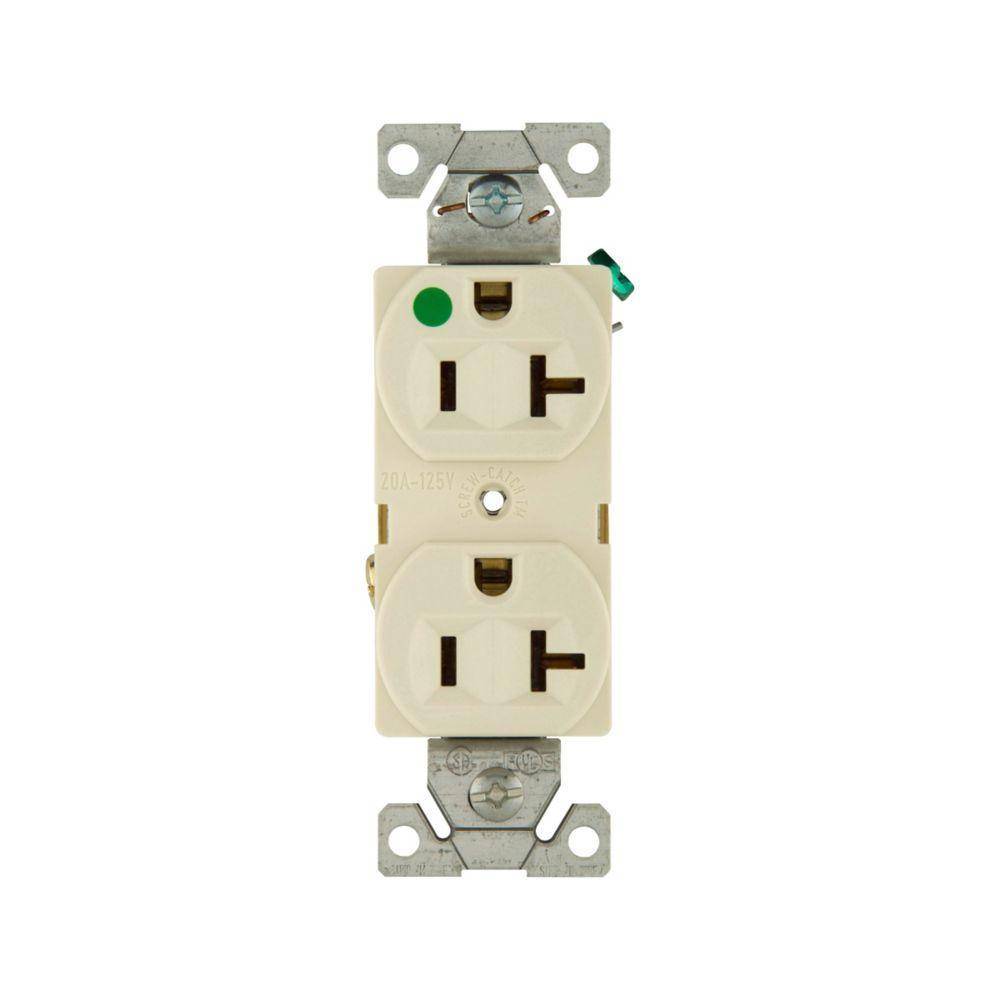

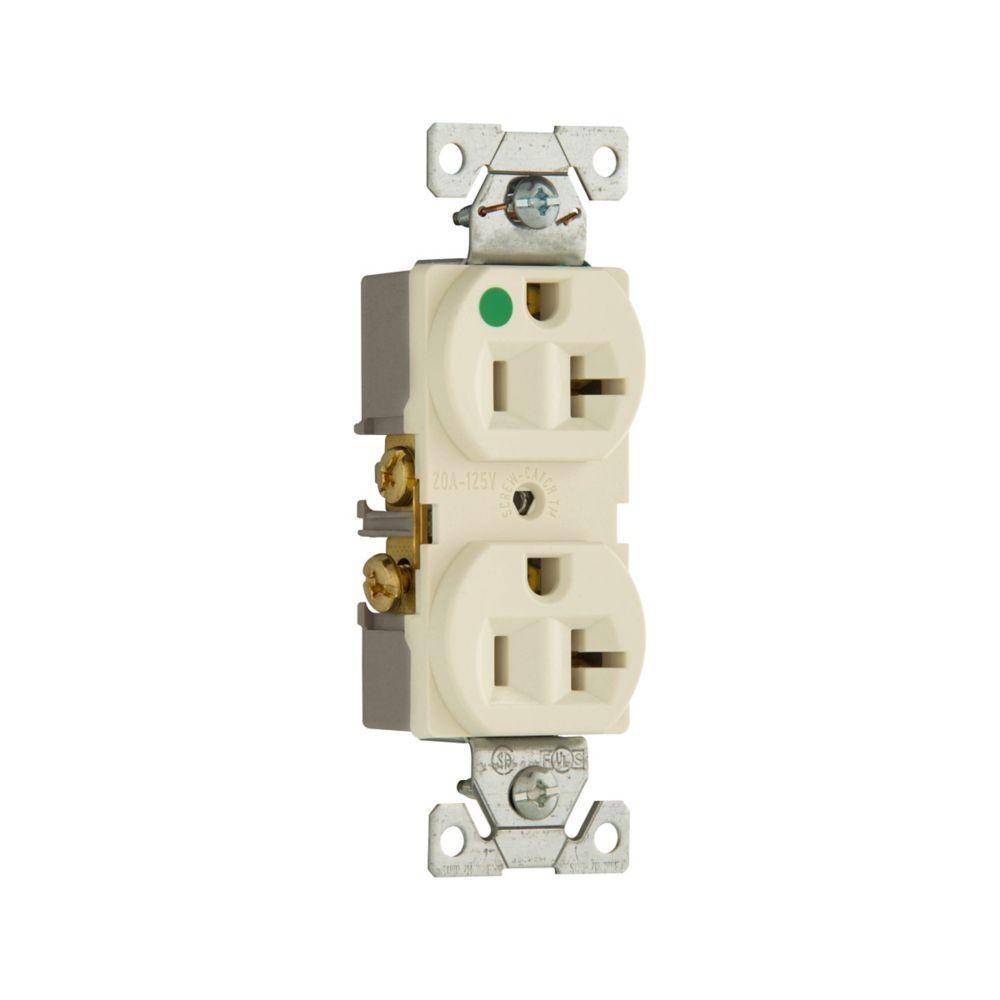

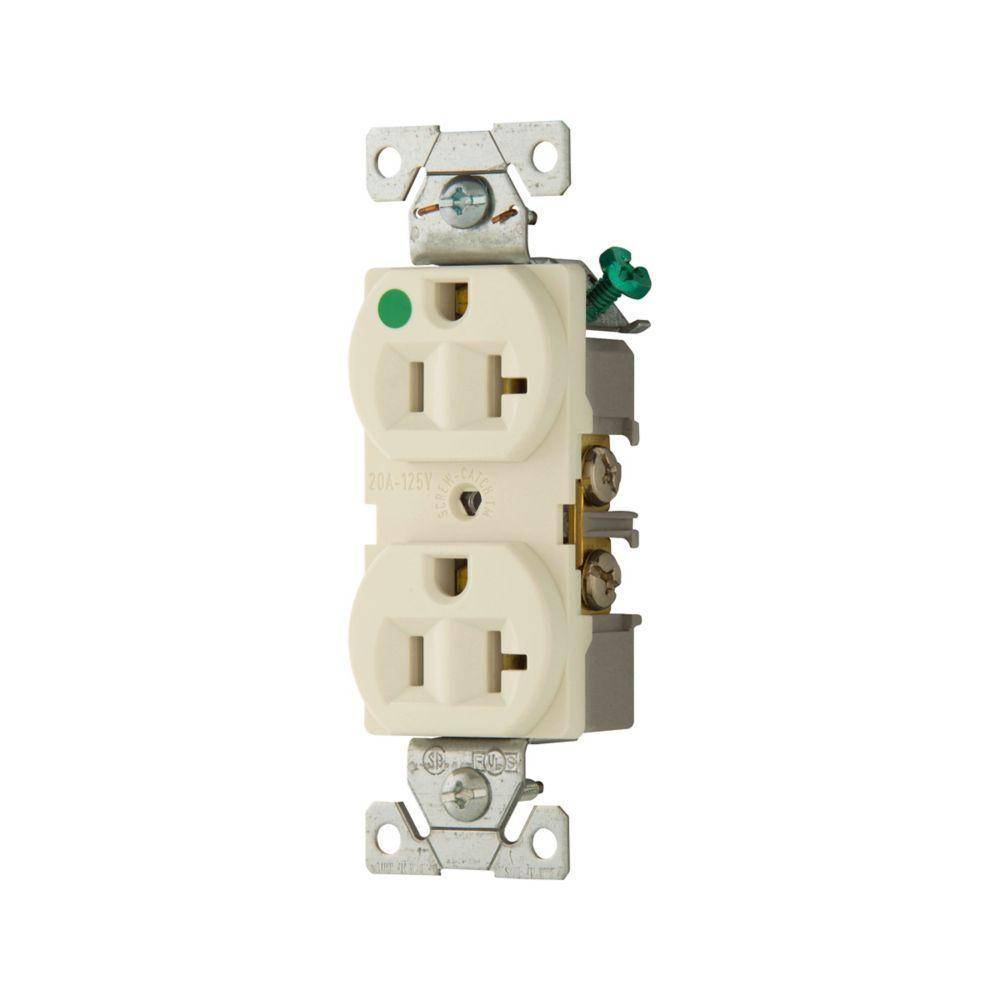

EATON Arrow Hart® 8300LA 8300 Duplex Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

Short Description

Hospital specification grade straight blade receptacles - back wire and side wire. Arrow Hart® feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and federal specification WC596 to provide a consistent means of connectivity where downtime can be critical.

EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding, Series: 8300, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -4 to 194 deg F, Back/Side Wire Terminal, Nylon, Light Almond, 4.19 in H x 1.3 in W x 0.88 in D Dimensions
MFG #: 8300LA

EECO #: HU8300LA

Brand: Eaton
UPC #: 032664719738
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39121406
Material
Nylon
Application
For used to provide a consistent means of connectivity where downtime can be crucial
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-4 to 194
Type
Duplex Grounding
Grade
Hospital
Series
8300
Dimensions
4.19 in H x 1.3 in W x 0.88 in D
Horsepower
1
Amperage Rating
20
Features
  • Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
  • Long, broad mounting strap helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
  • Screw-Catch™ feature on duplex devices speeds mounting of wallplates
