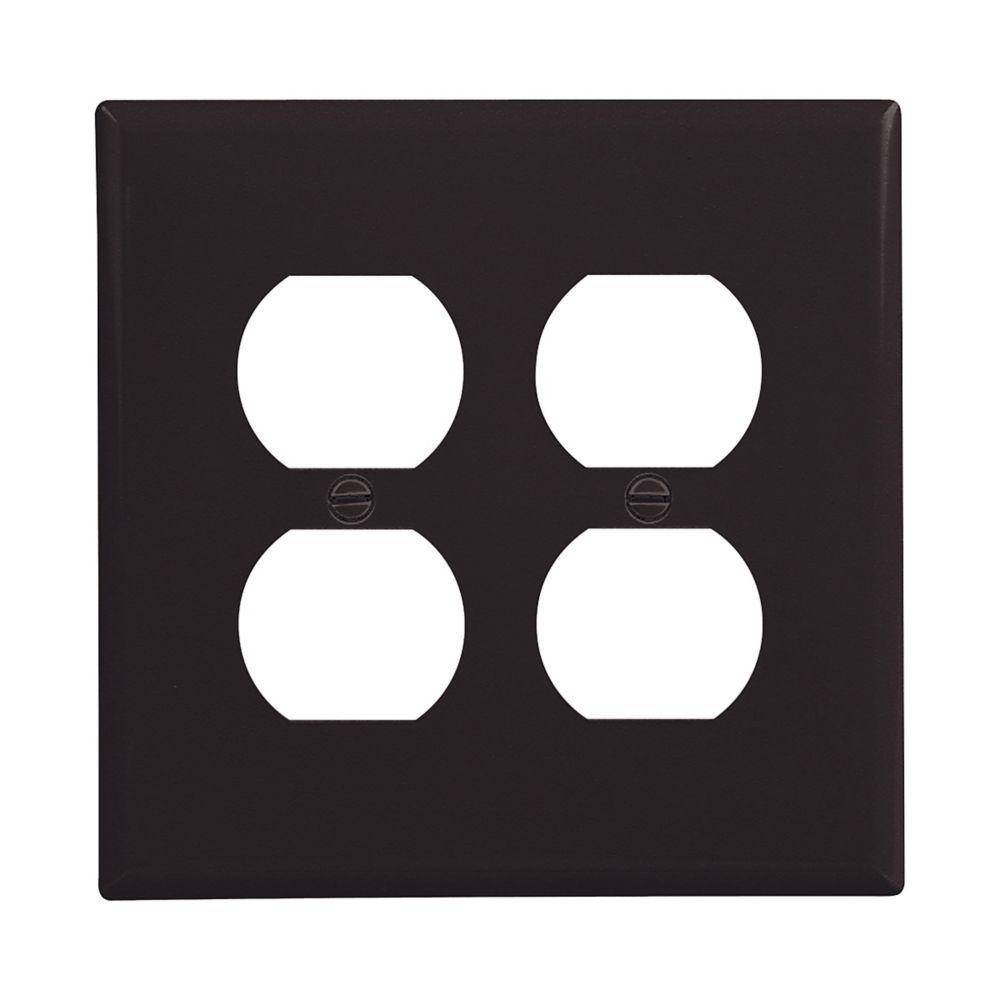

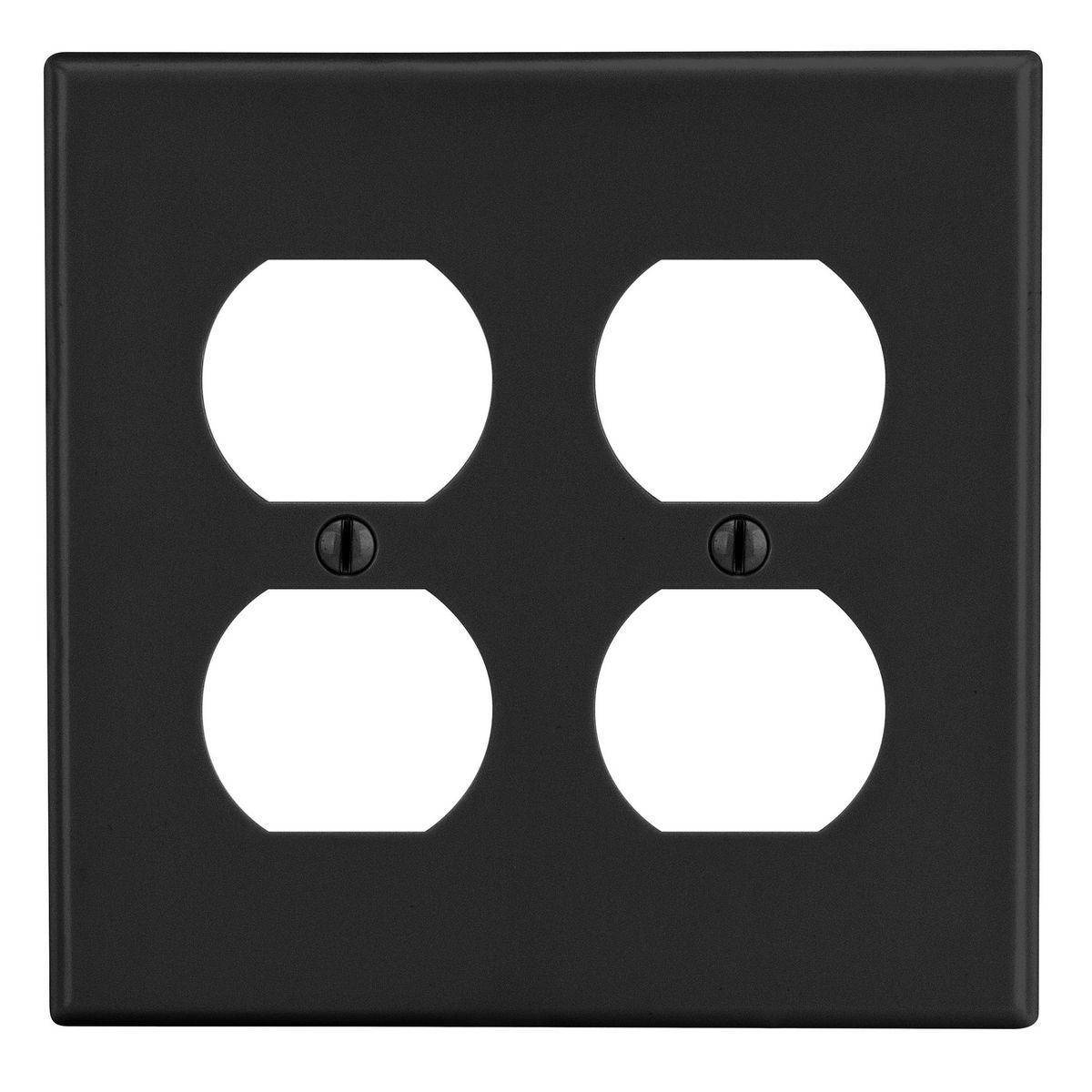

EATON Arrow Hart™ PJ82BK PJ Series Mid-Sized Receptacle Wall Plate, 2 Gangs, 4.94 in W x 4.87 in H, Polycarbonate/Thermoplastic, Black
EATON Arrow Hart™ PJ82BK PJ Series Mid-Sized Receptacle Wall Plate, 2 Gangs, 4.94 in W x 4.87 in H, Polycarbonate/Thermoplastic, Black
EATON Arrow Hart™ PJ82BK PJ Series Mid-Sized Receptacle Wall Plate, 2 Gangs, 4.94 in W x 4.87 in H, Polycarbonate/Thermoplastic, Black
EATON Arrow Hart™ PJ82BK PJ Series Mid-Sized Receptacle Wall Plate, 2 Gangs, 4.94 in W x 4.87 in H, Polycarbonate/Thermoplastic, Black
Share Share Print Print
Hubbell

EATON Arrow Hart™ PJ82BK PJ Series Mid-Sized Receptacle Wall Plate, 2 Gangs, 4.94 in W x 4.87 in H, Polycarbonate/Thermoplastic, Black

Short Description

Mid size wallplates - polycarbonate duplex receptacle wallplates appear to float freely on the surface of the wall and are designed for easy and fast installation. Mounting plate attaches to the wiring device and the wallplate is simply pressed into place. Standard toggle, duplex receptacle and decorator size openings are available. Multi-gang configurations are also available.

EATON, Arrow Hart™, PJ82BK, Receptacle Wall Plate, Mid-Sized, Series: PJ Series, 2 Gangs, 4 Ports, 4.94 in W x 4.87 in H Size, (2) 0.76 in H x 1.31 in W Duplex Receptacle Cutout, Threaded Mounting, Screwless/Superior Impact-Resistant Construction, 0.08 in Thickness, Polycarbonate/Thermoplastic, Black, High Gloss
MFG #: PJ82BK

EECO #: HUPJ82BK

Brand: Eaton
UPC #: 032664580734
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Finish
High Gloss
UNSPSC
39121704
Material
Polycarbonate/Thermoplastic
Application
Commercial, Industrial, Institutional, Non-Residential and Other High Traffic Area Applications
Orientation
Vertical
Construction
Screwless/Superior Impact-Resistant
Number of Gangs
2
Number of Ports
4
Mounting
Threaded
Size
4.94 in W x 4.87 in H
Type
Mid-Sized
Series
PJ Series
Includes
Mounting Screws
Thickness
0.08
Features
  • Virtually unbreakable plates reduce installation and replacement costs
  • Exclusive time-saving screw catch feature holds mounting screws captive and simplifies installation
  • High gloss finish is soil-resistant
  • -40 to 158 deg f temperature rating
  • Injection molded
  • 0.76 in H x 1.31 in W opening configuration
  • Specification grade
