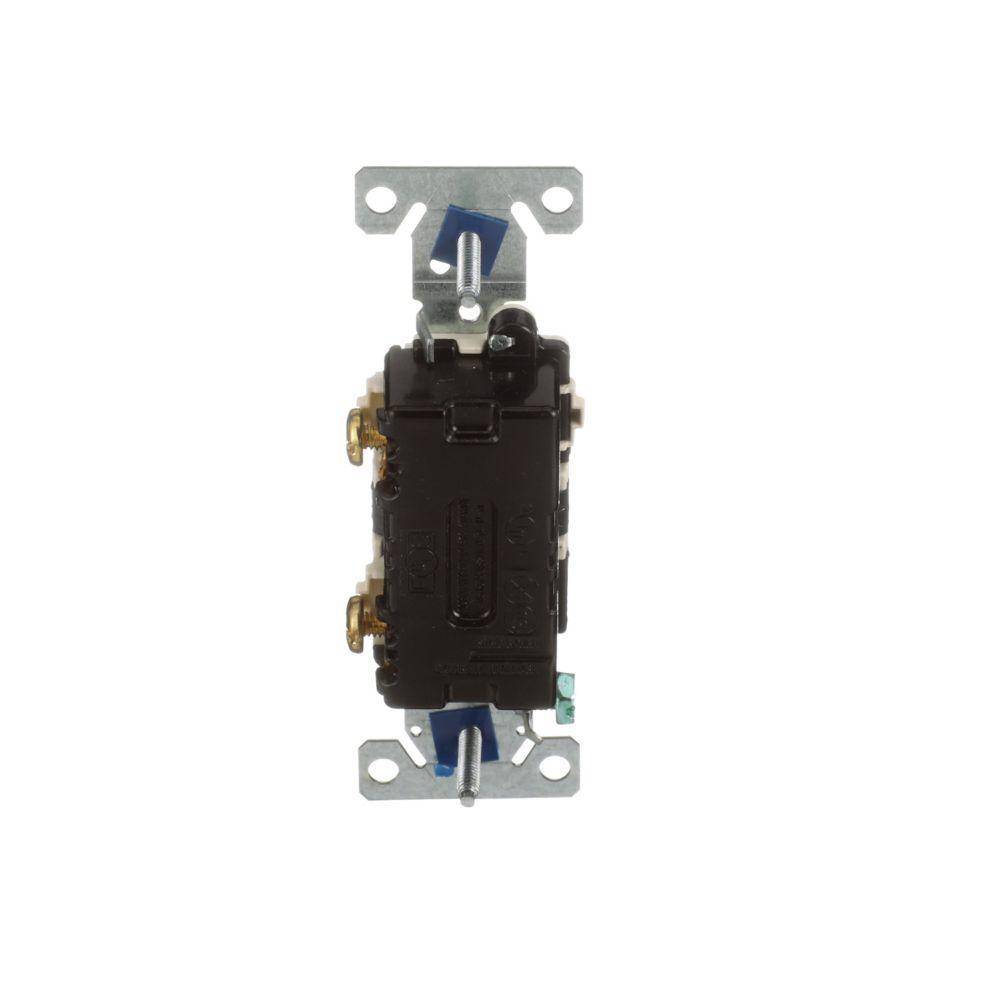

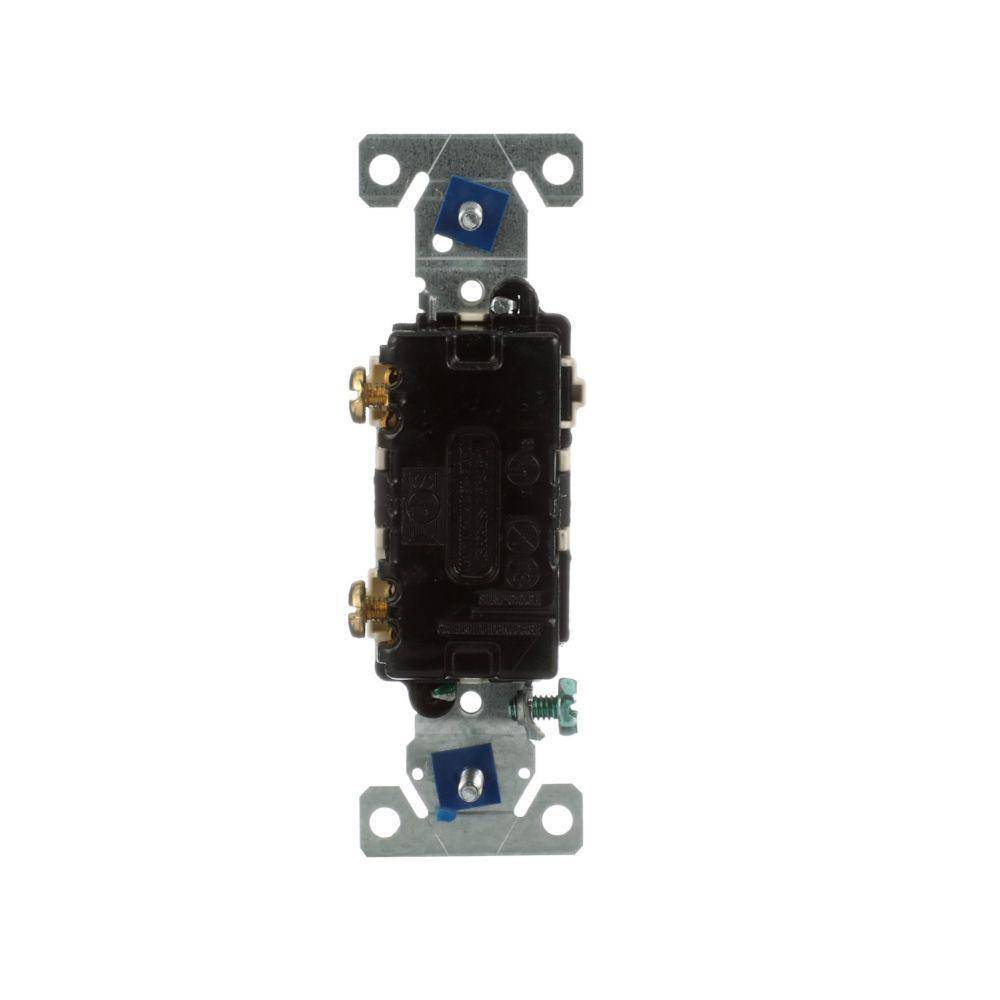

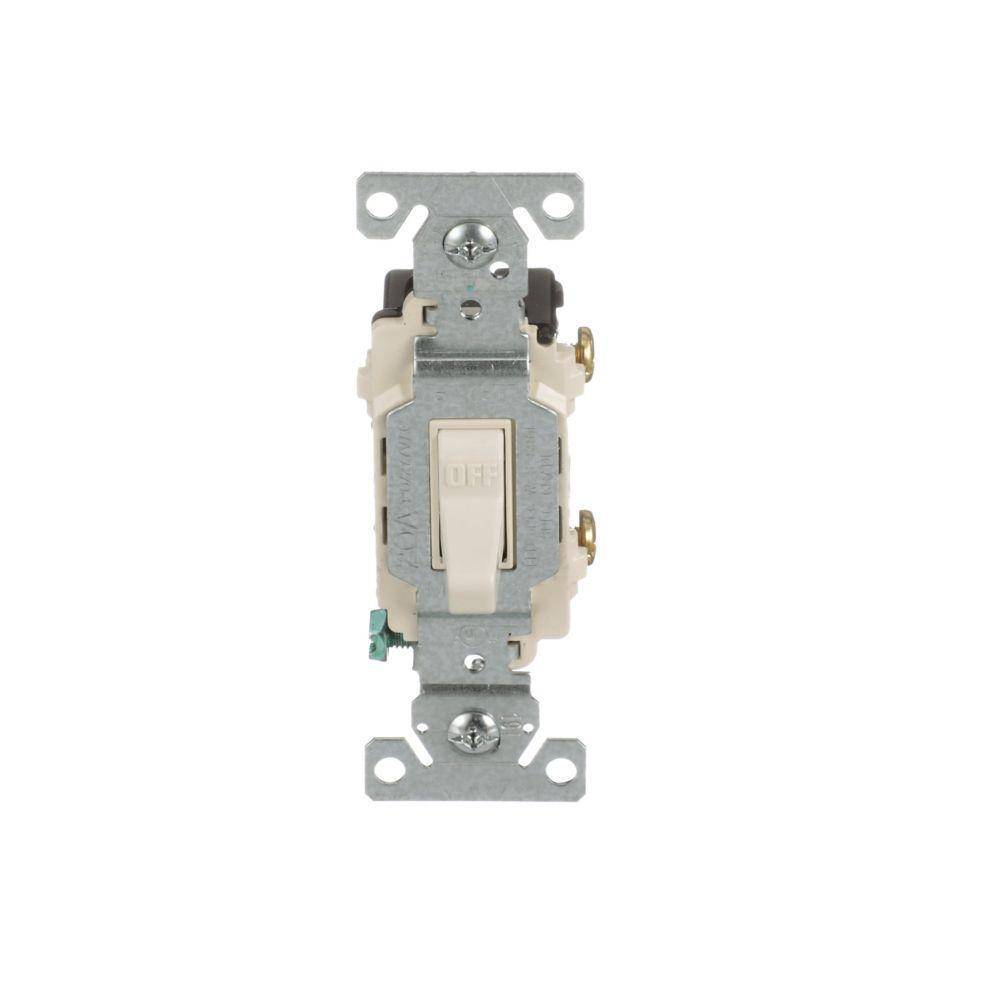

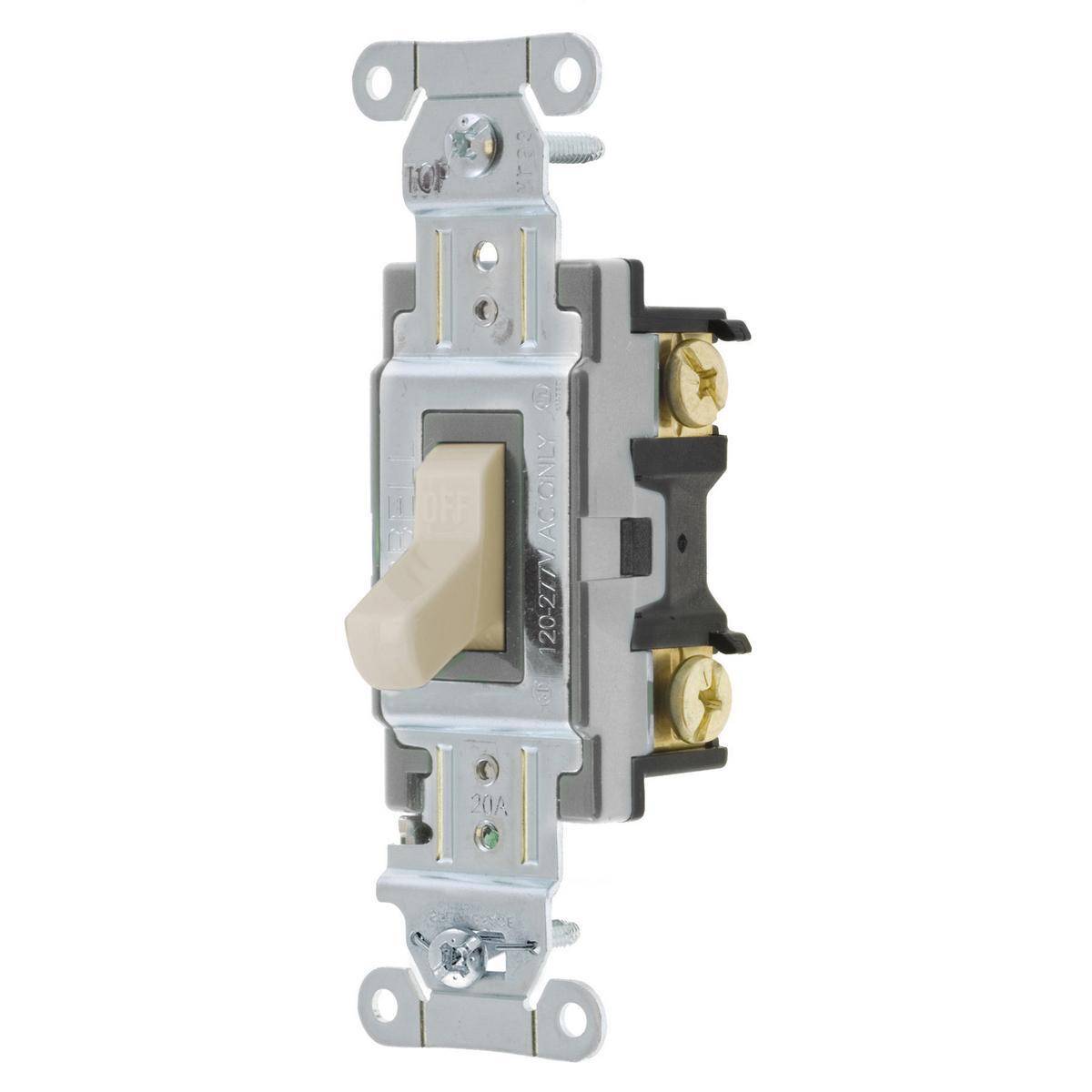

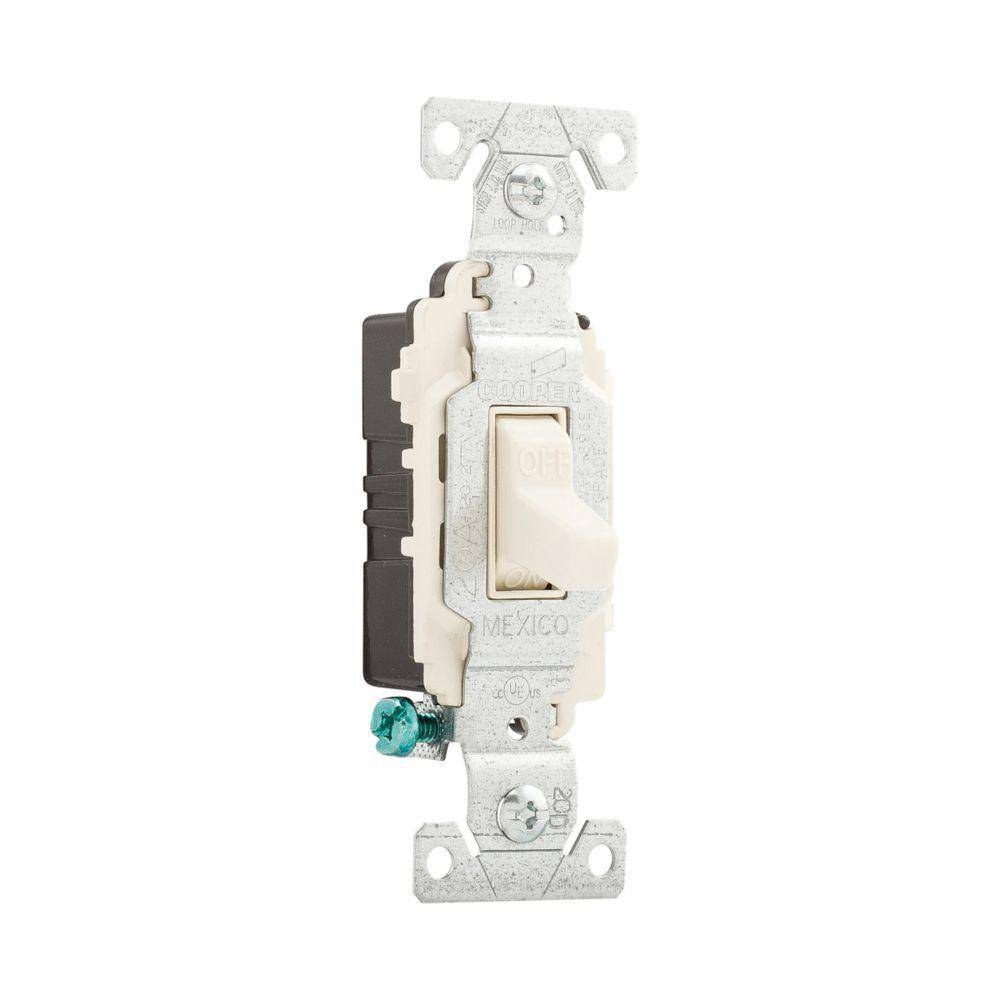

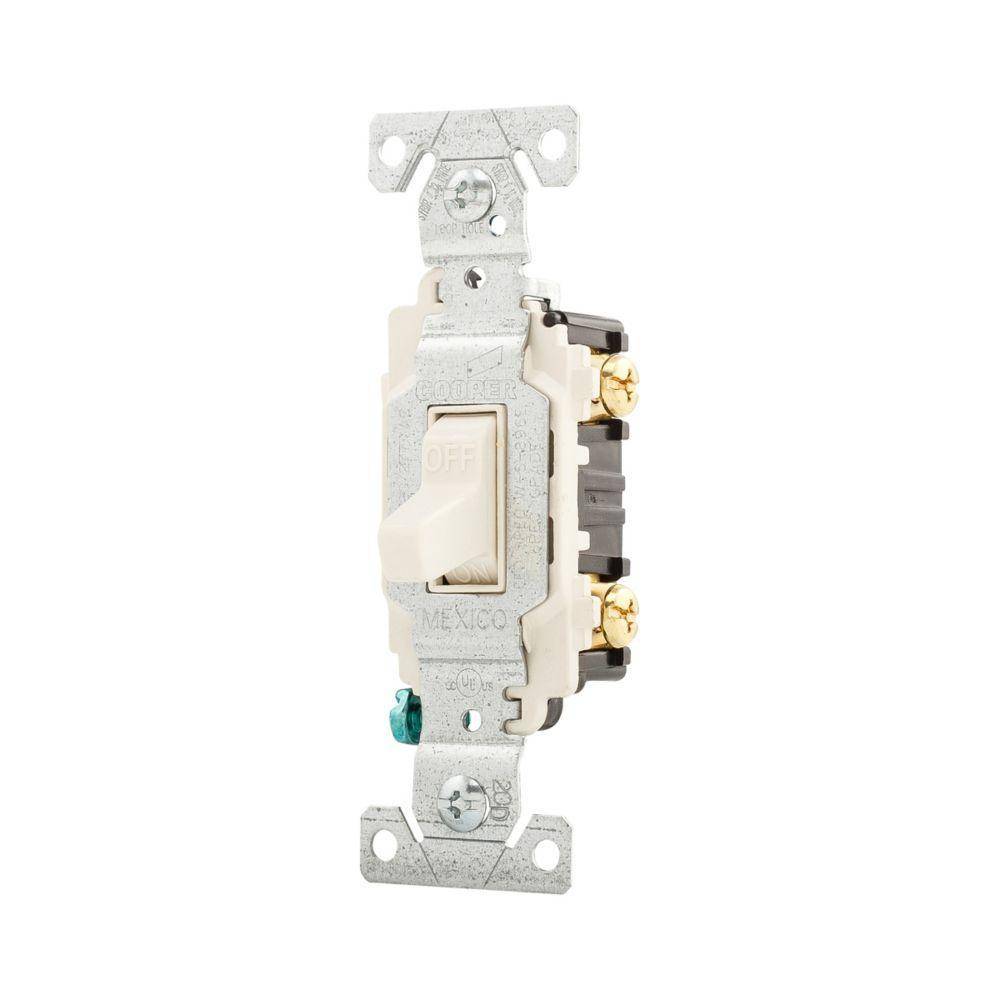

EATON Arrow Hart® CSB120LA Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power Rating

Short Description

Commercial grade AC quiet switches back and side wire. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Side wire and back wire terminals accept up to #10 solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Tri-combination slot/Phillips Robertson head mounting and terminal screws ease installation with power screwdrivers.

EATON Arrow Hart® Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, Light Almond, Environmental Conditions: -20 to 60 deg C Temperature, 3.28 in L x 1.31 in W x 1.05 in H Dimensions
MFG #: CSB120LA

EECO #: HUCSB120LA

Brand: Eaton
UPC #: 032664719042
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122211
Material
PVC
Application
Commercial Applications
Power Rating
1/2
Terminal Type
Screw
Voltage Rating
120/277
Actuator
Toggle
Mounting
Wall
Contact Configuration
2-Position
Environmental Conditions
-20 to 60 deg C Temperature
Type
2-Position Standard
Dimensions
3.28 in L x 1.31 in W x 1.05 in H
Amperage Rating
20
Features
  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wire
  • Tri combo head mounting and terminal screws ease installation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • Specification grade
  • 14 to 10 AWG wire
  • Nylon toggle
