Short Description

Commercial grade - AC quiet switches - side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.

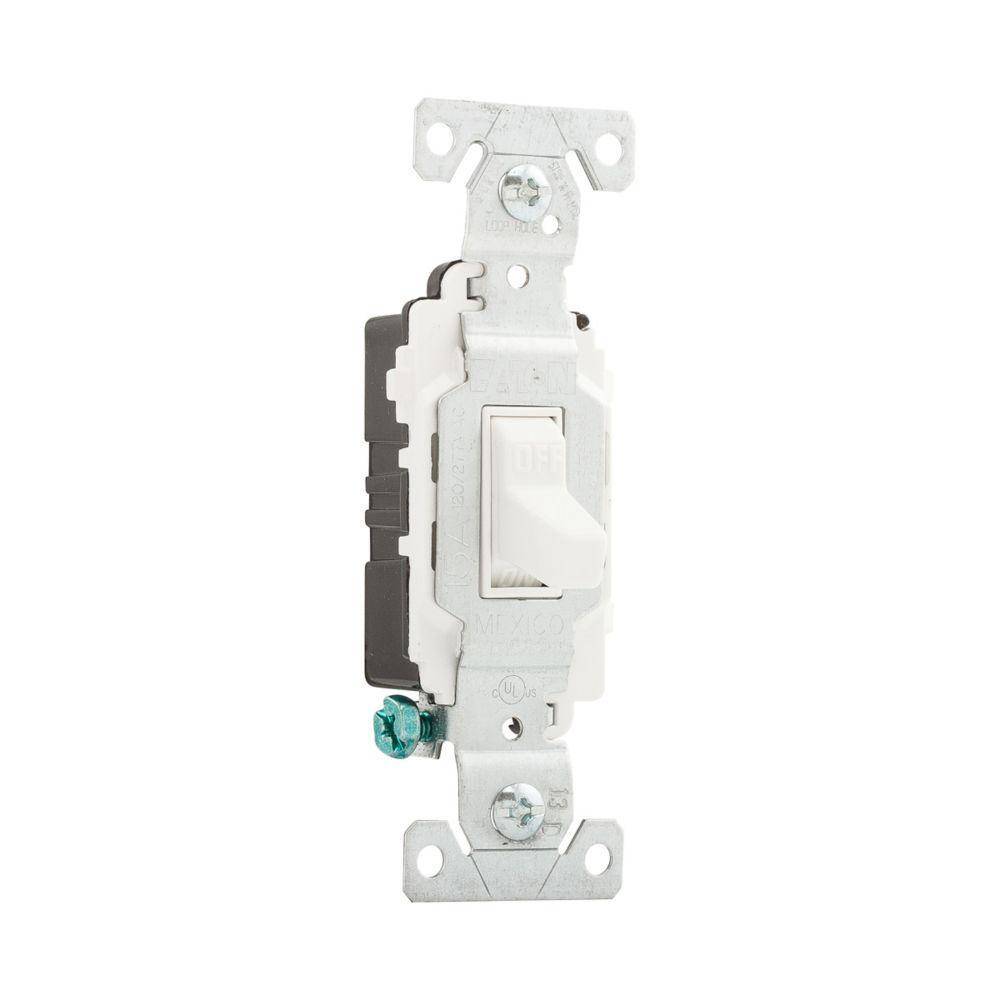

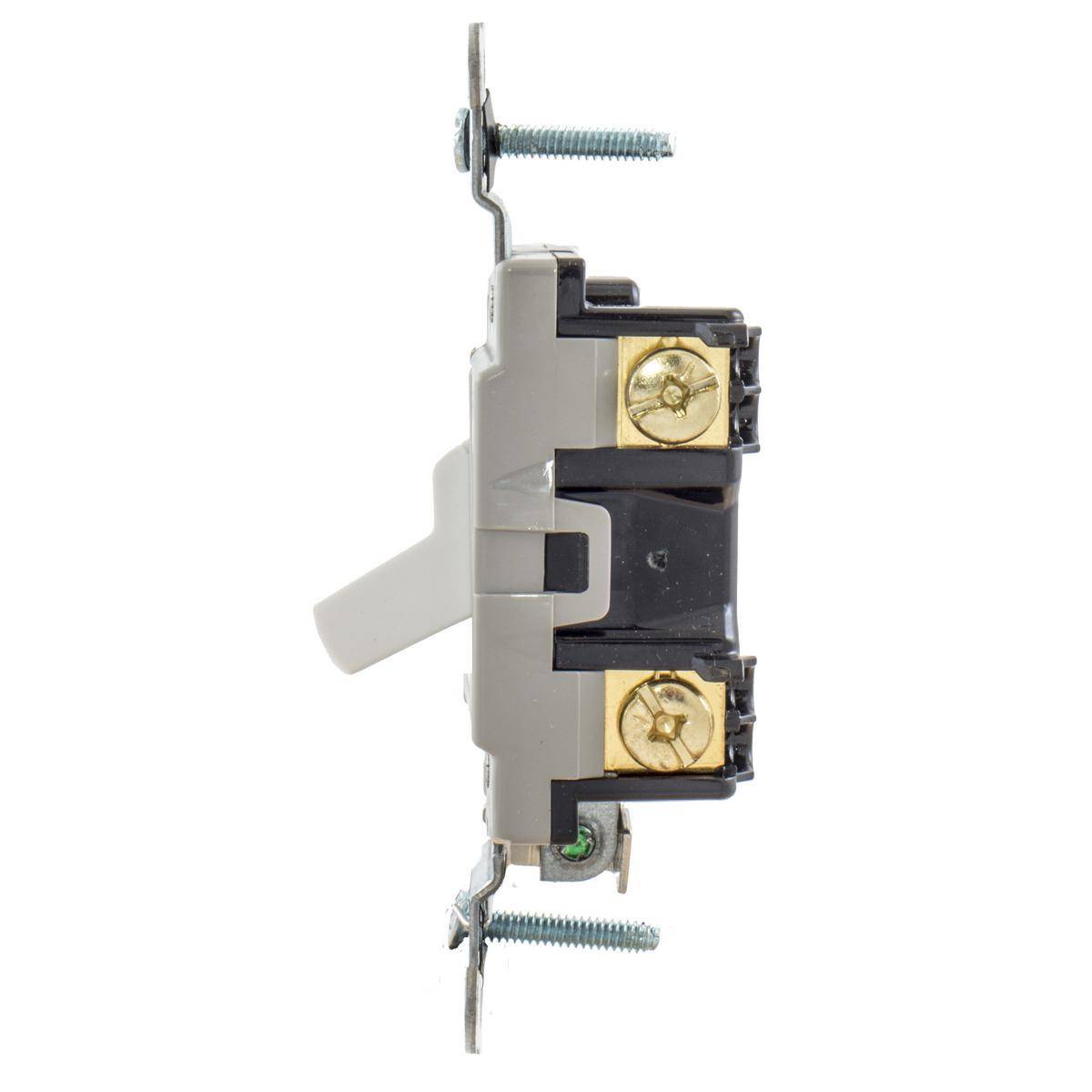

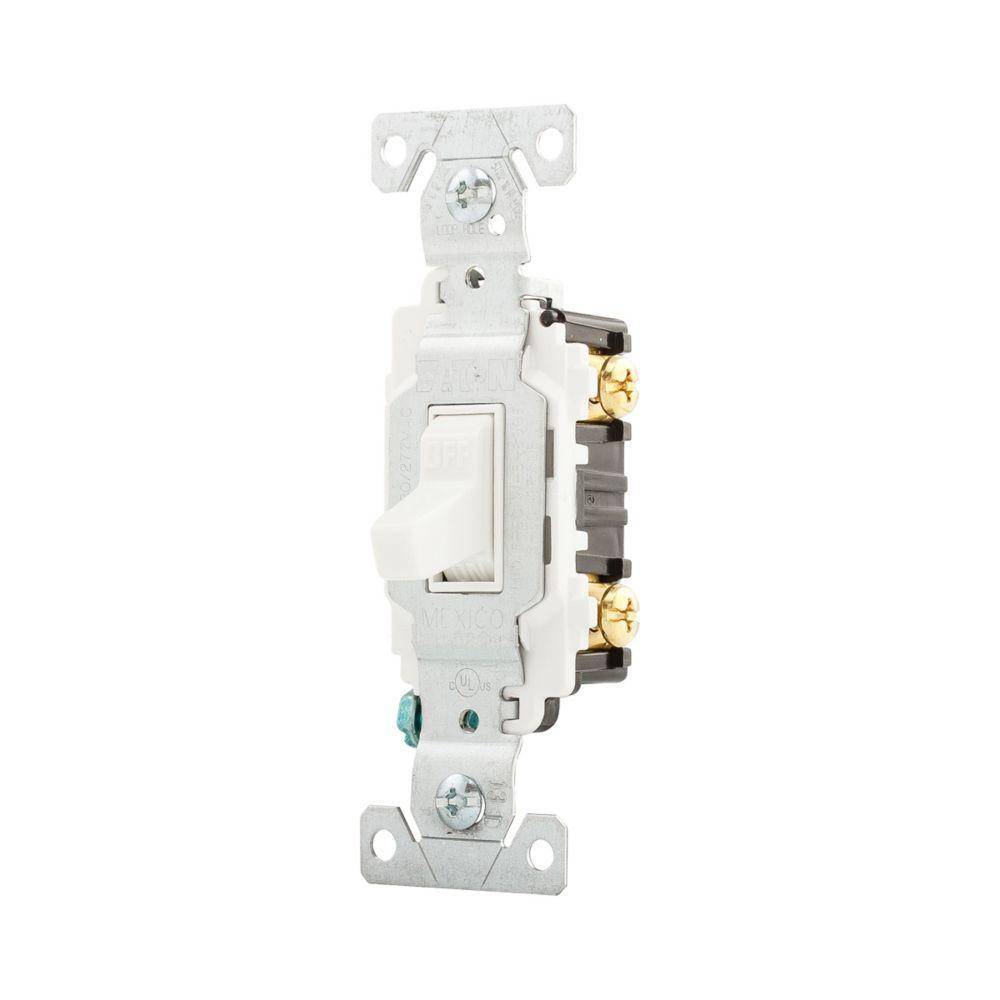

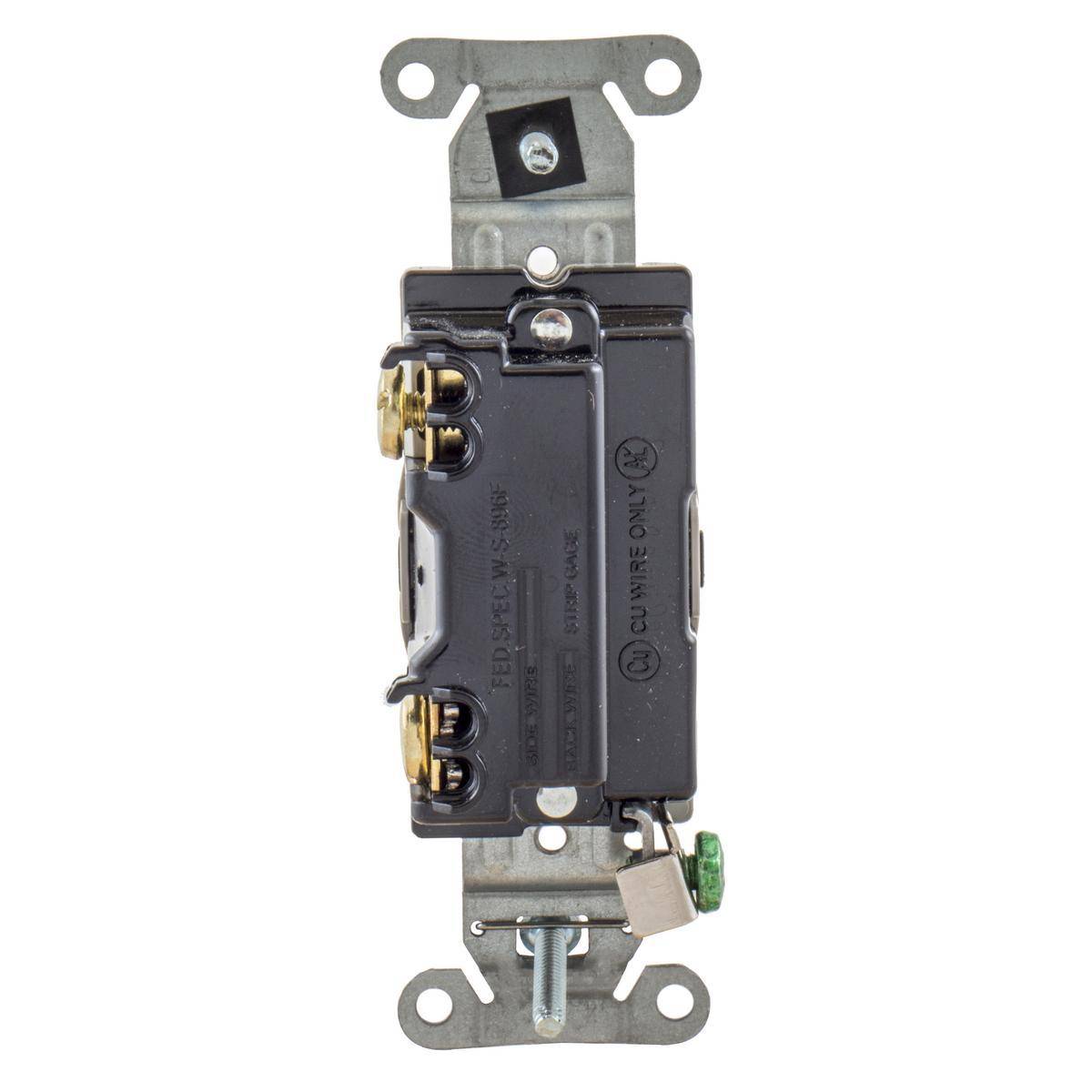

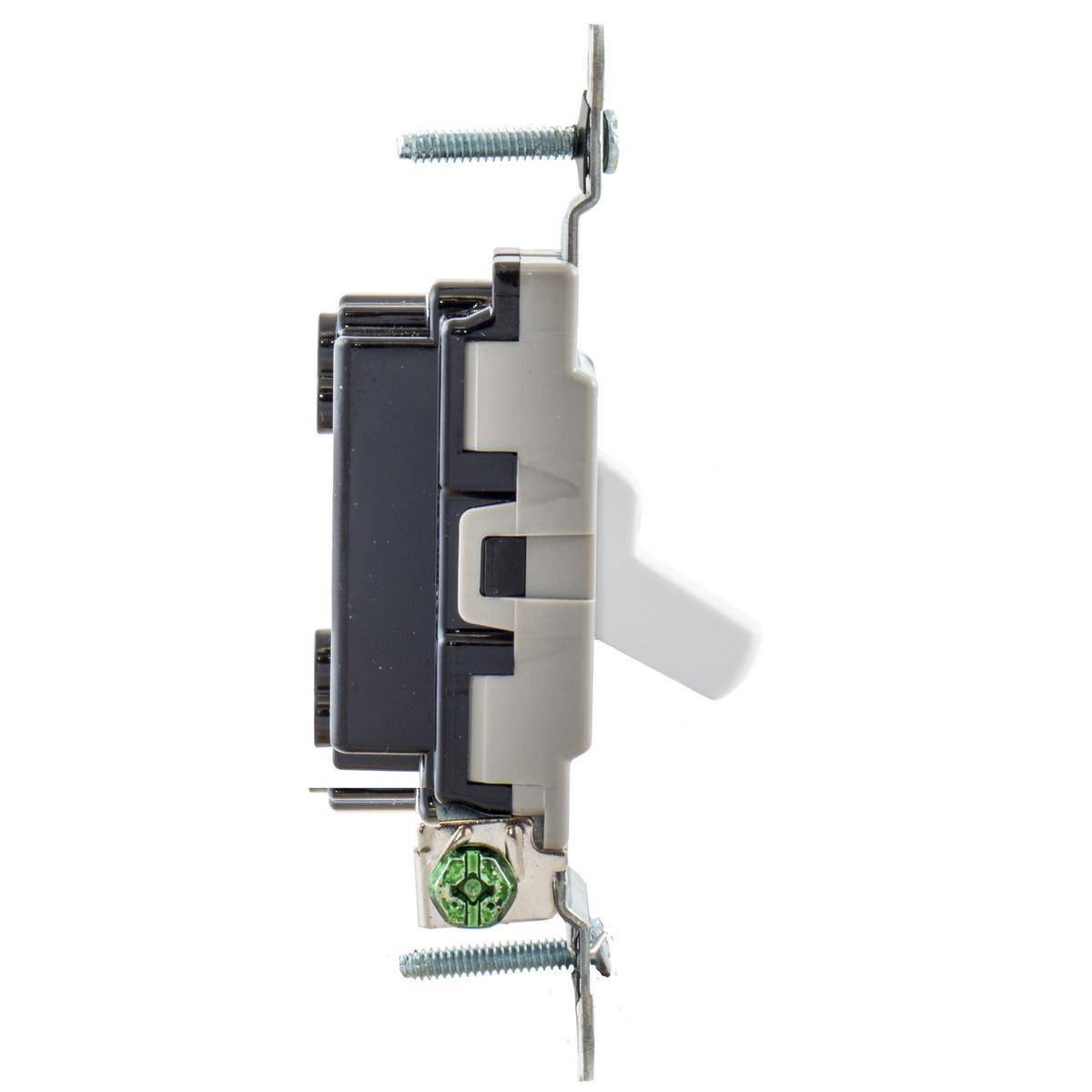

EATON Arrow Hart Toggle Switch, Specification Grade, Series: CS Series, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, White, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.31 in W x 1.05 in D Dimensions
MFG #: CSB115W

EECO #: HUCSB115W

Brand: Eaton
UPC #: 032664558900
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122211
Material
PVC
Application
Commercial, Institutional Buildings, Structures - Fluorescent Lighting Fixtures, Commercial and Non-Residential Applications
Power Rating
1/2 hp, 2 hp
Terminal Type
Screw
Contact Rating
15 A at 120/277 VAC
Voltage Rating
120/277
Actuator
Toggle
Mounting
Wall
Enclosure
NEMA WD-1
Contact Configuration
2-Position
Environmental Conditions
-20 to 60 deg C Operating Temperature
Type
Specification Grade
Series
CS Series
Dimensions
1.31 in W x 1.05 in D
Amperage Rating
15
Features
  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wire
  • Tri-combo head mounting and terminal screws ease installation
  • 14 to 10 AWG terminal accommodation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • 2.38 in L screw to screw
  • Nylon toggle
