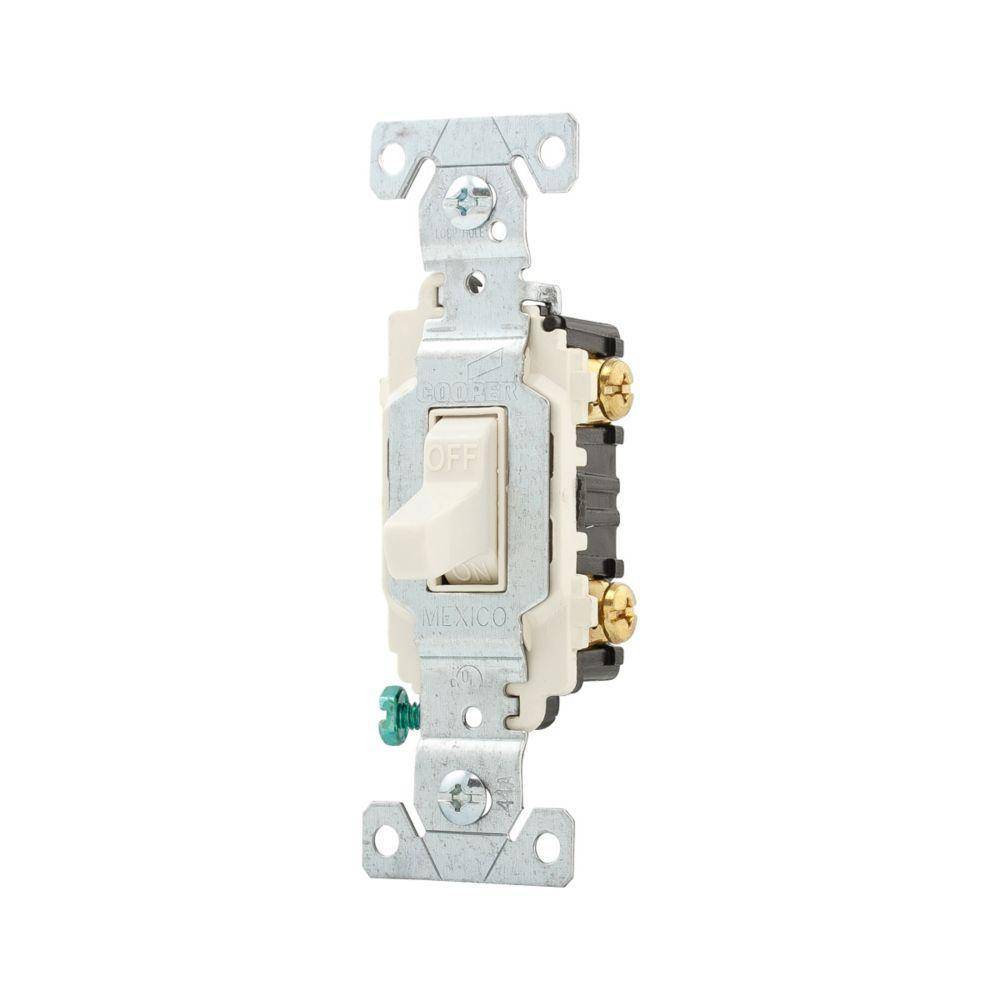

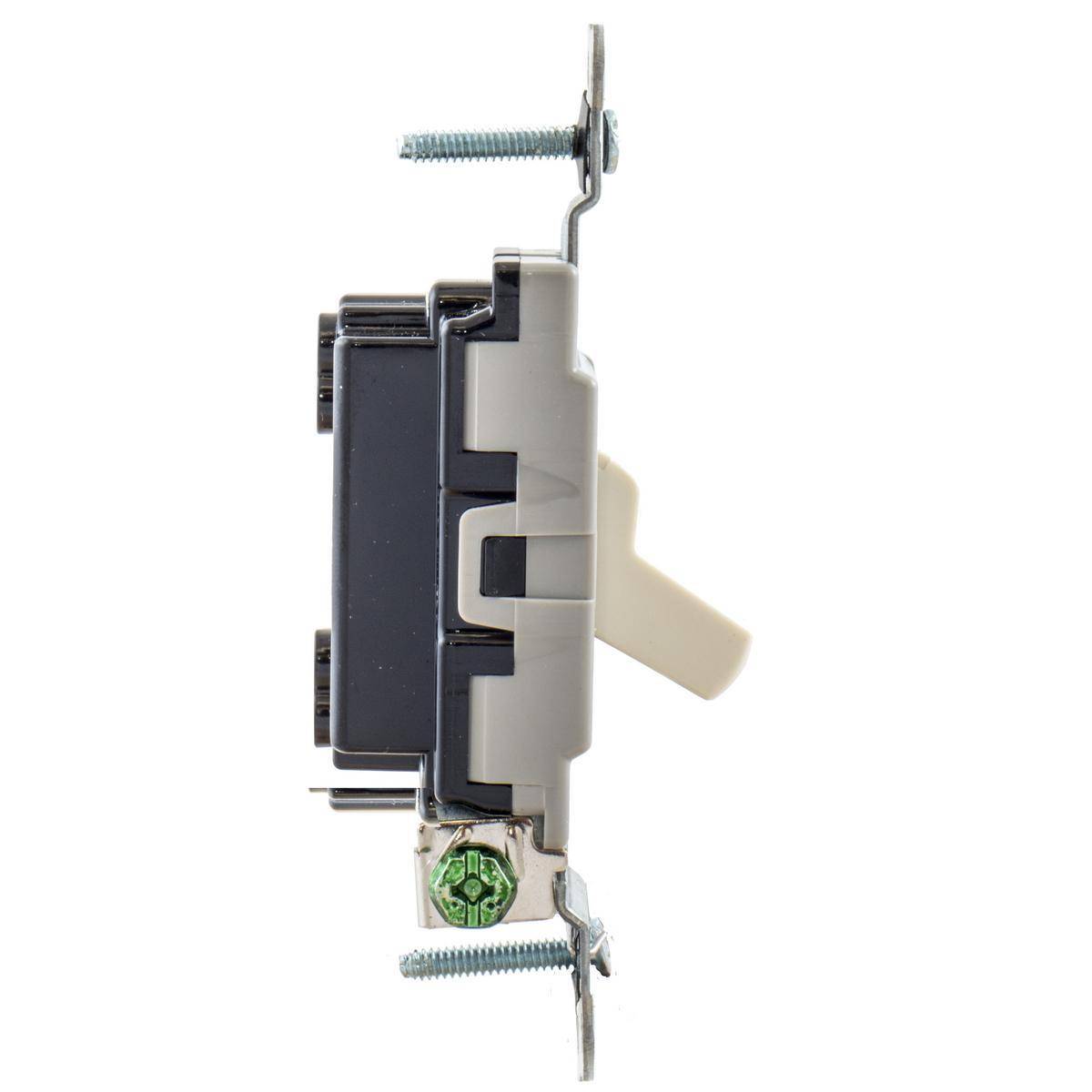

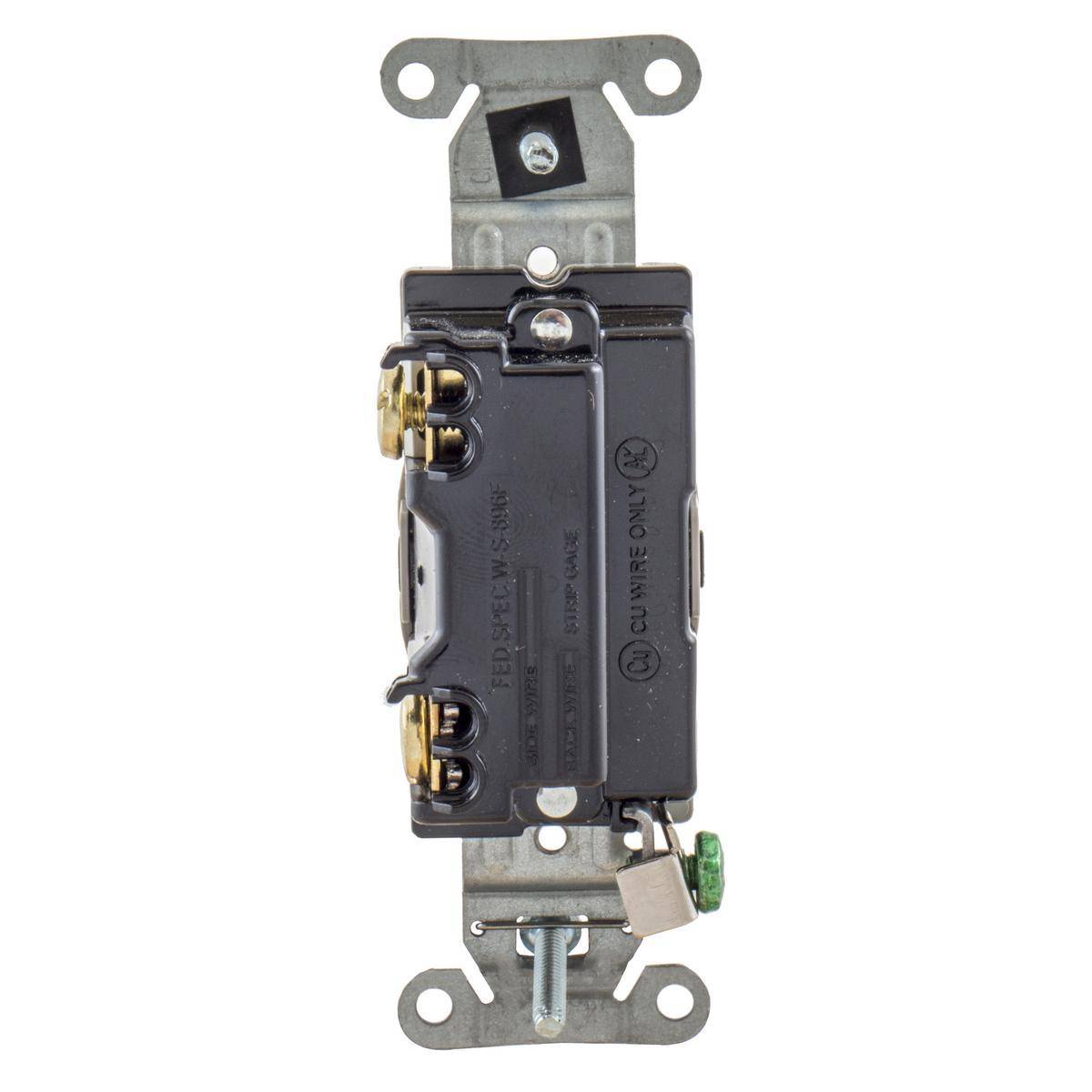

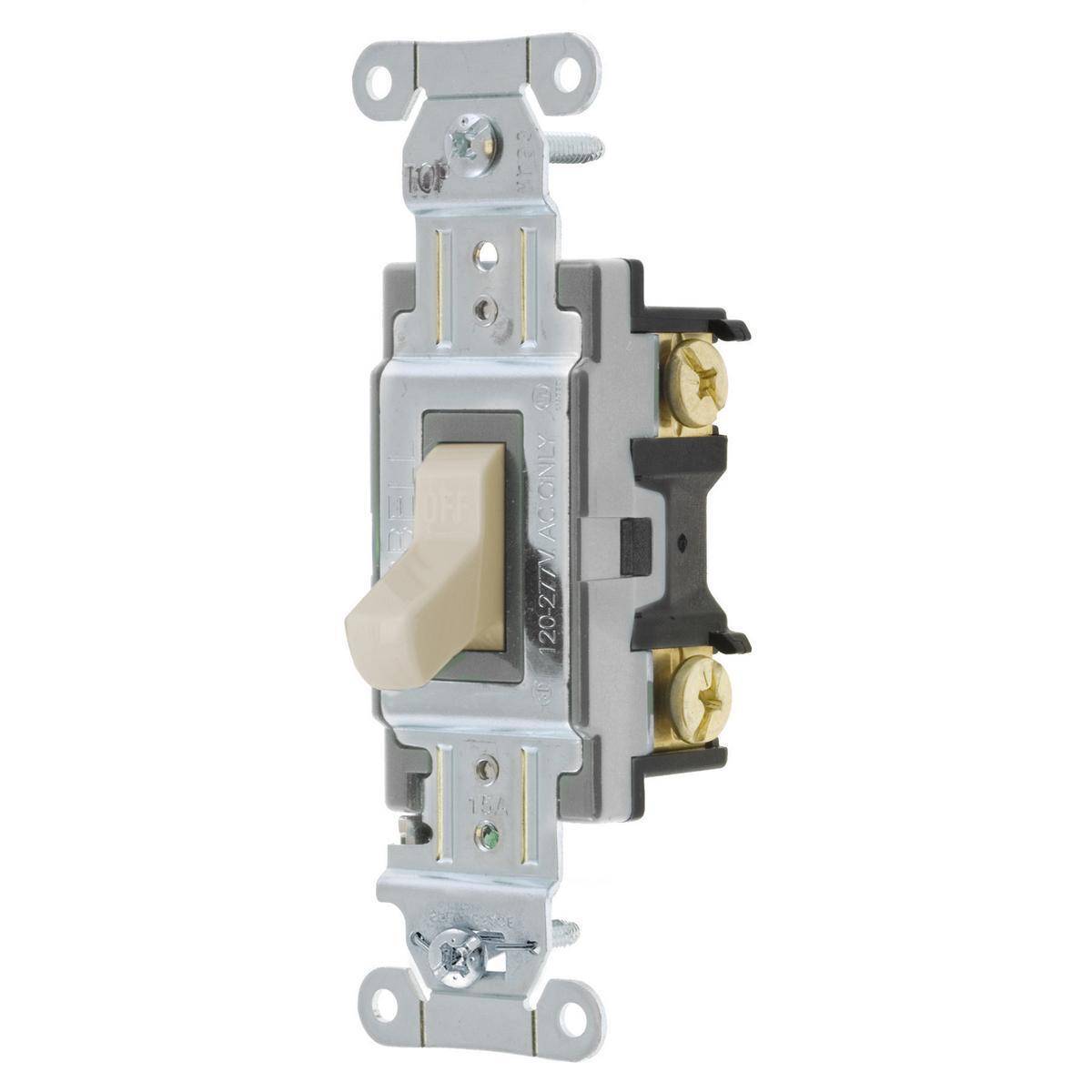

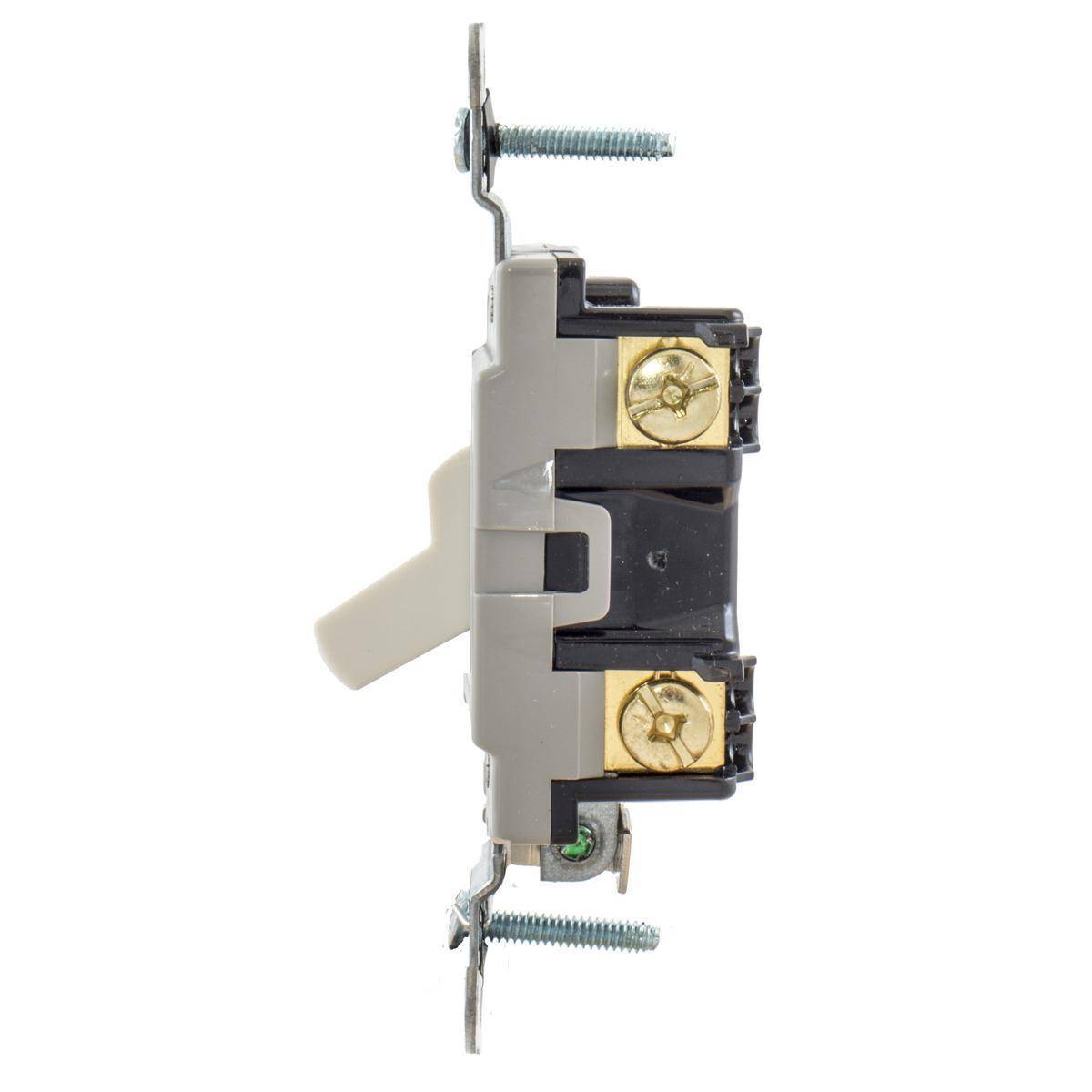

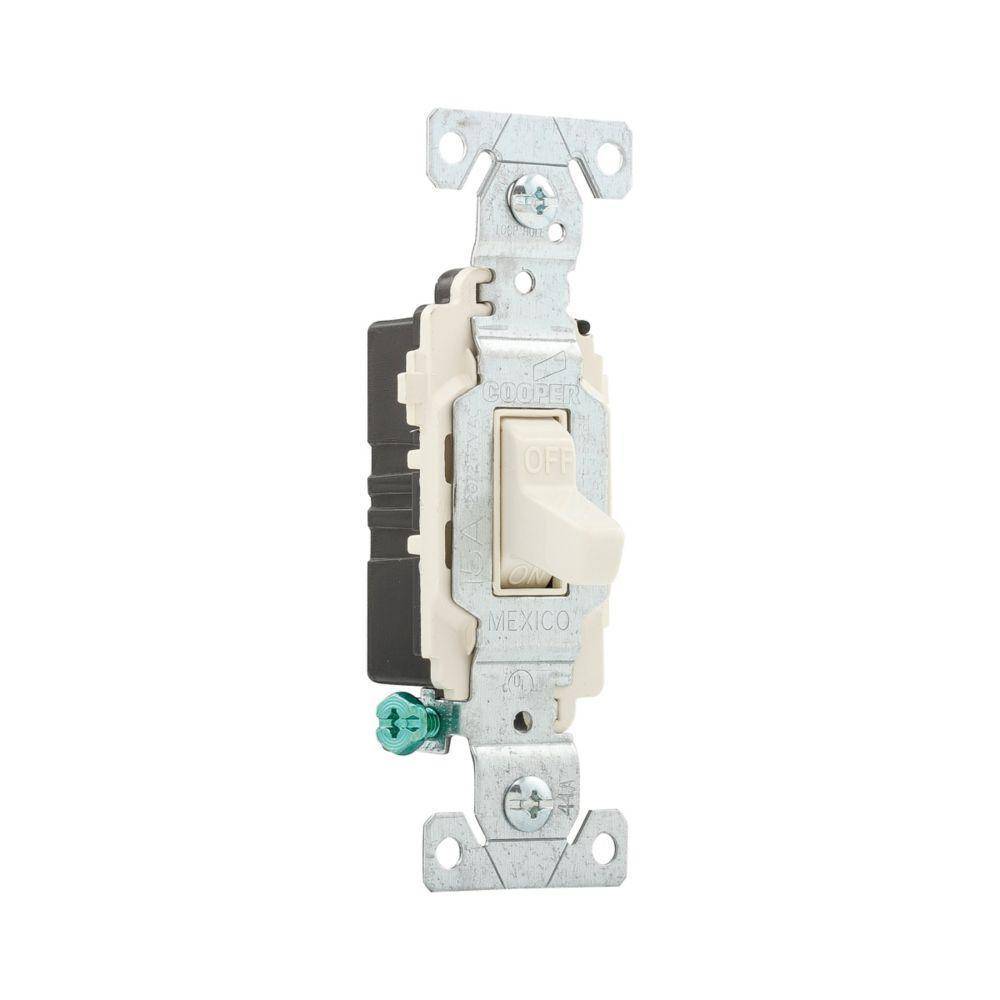

EATON Arrow Hart® CSB115LA CSB Commercial/Specification Grade Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating

Short Description

Upgrade your electrical control with the EATON Arrow Hart® CSB115LA Commercial Toggle Switch. Designed for durability and performance, this switch handles up to 15 A and features a sleek light almond finish, making it perfect for any professional setting.Enhanced by AI

EATON Arrow Hart® Toggle Switch, Commercial/Specification Grade, Series: CSB, 120/277 VAC, 15 A, 1/2, 2 hp Power, 1 Pole, Toggle Actuator, Threaded Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, Light Almond, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.3 in L x 0.902 in W x 4.2 in H Dimensions

MFG #: CSB115LA

EECO #: HUCSB115LA

Brand: Eaton
UPC #: 032664719028
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122211
Material
PVC
Application
General Purpose AC and Indoor Applications
Power Rating
1/2, 2
Terminal Type
Screw
Voltage Rating
120/277
Actuator
Toggle
Mounting
Threaded
Contact Configuration
2-Position
Environmental Conditions
-4 to 140 deg F Operating Temperature
Type
Commercial/Specification Grade
Series
CSB
Dimensions
1.3 in L x 0.902 in W x 4.2 in H
Amperage Rating
15
Features
  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wiring
  • Tri-combo head mounting and terminal screws ease installation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • 1/2 hp at 120 VAC, 2 hp 240/277 VAC
