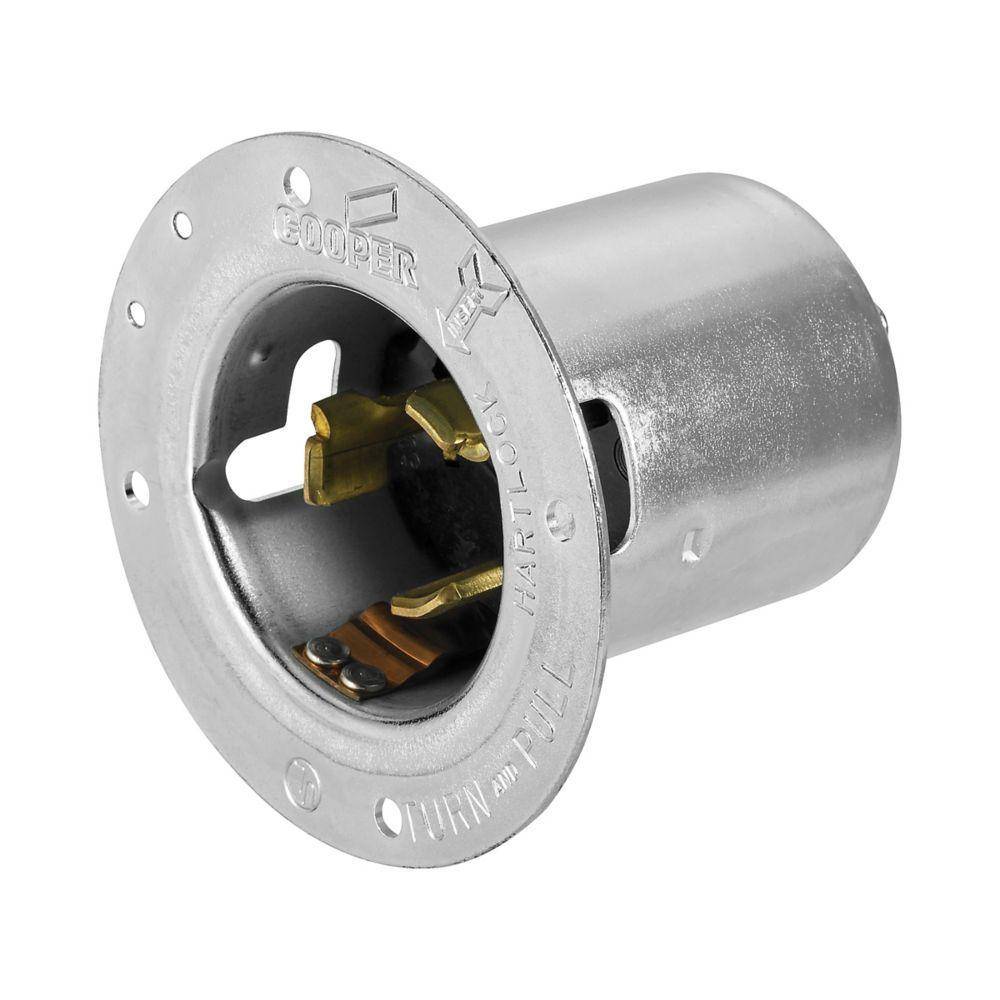

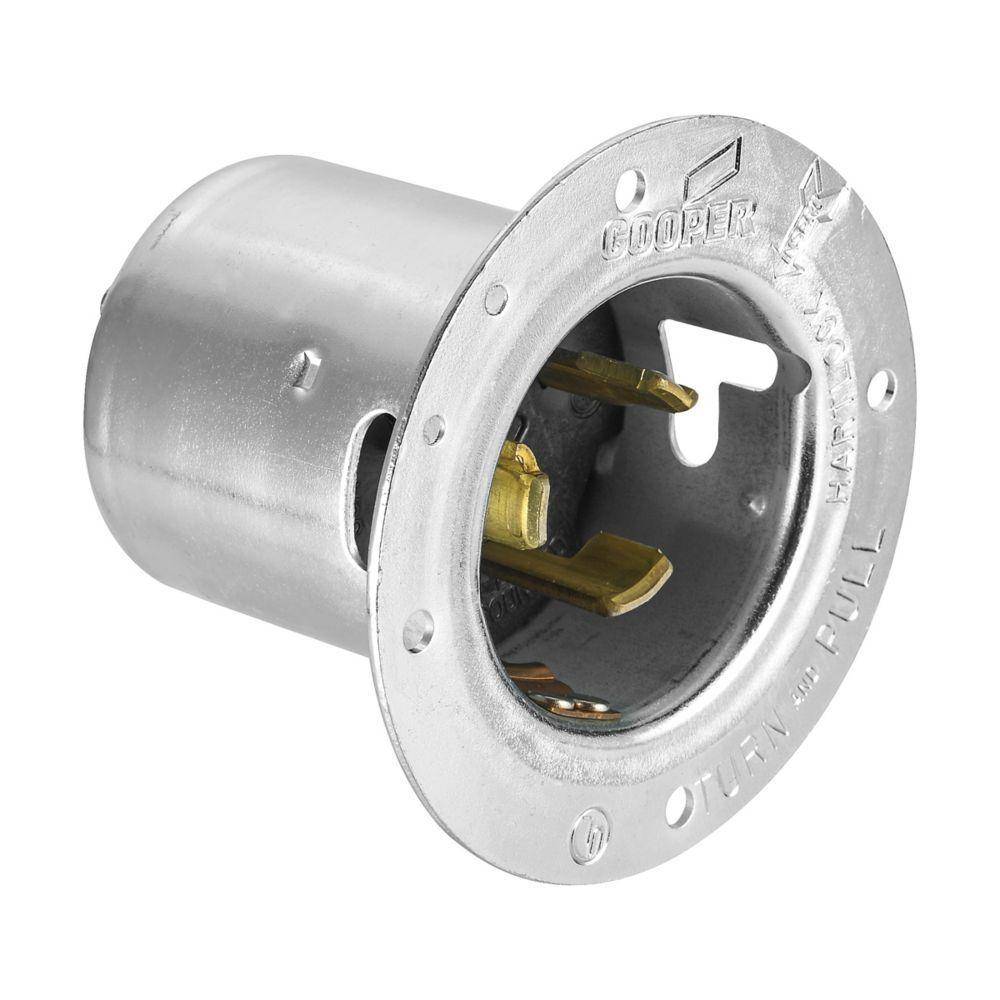

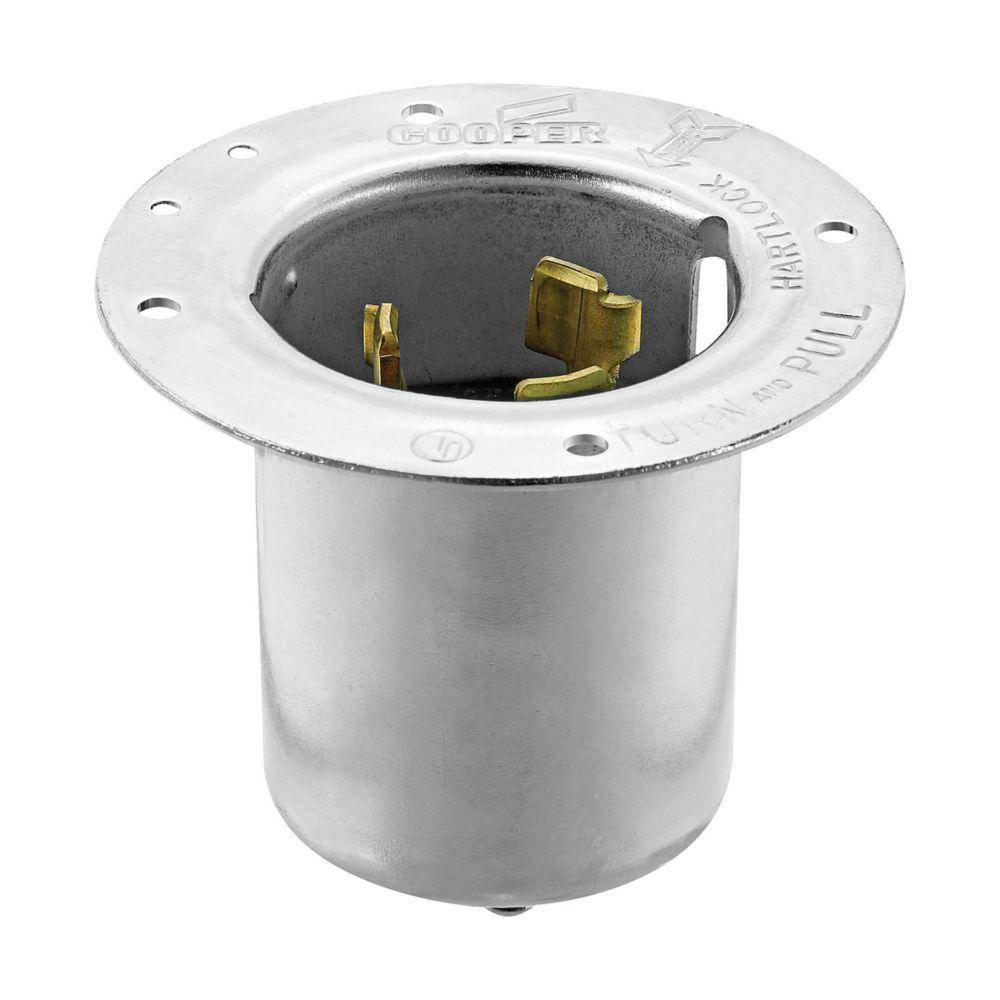

EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires
Share Share Print Print
Hubbell

EATON CS8475 3-Pole 4-Wire 3-Phase Standard Locking Flanged Inlet, 480 V, 50 A, 3 Poles, 4 Wires

Short Description

Plugs and connectors utilize Arrow Hart®'s unique pro grip design allows for quick and easy termination and assembly, saving valuable time on the job site. Superior design combined with rugged materials make Arrow Hart® 50 A devices ideal for temporary power applications.

EATON Locking Flanged Inlet, 3-Pole 4-Wire 3-Phase Standard, 480 V, 50 A, 3 Pole, 4 Wires, Non-NEMA, Grade Industrial, Steel
MFG #: CS8475

EECO #: HUCS8475

Brand: Eaton
UPC #: 040893683997
Attributes
Features
Documents
Product Information
Attributes
Color
Metallic
UNSPSC
39121403
Material
Steel
Application
Dry Locations and Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
480
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Pole 4-Wire 3-Phase Standard
Grade
Industrial
Dimensions
3.5 x 2.62 x 2.17
Amperage Rating
50
Features
  • Metallic flanged casing provides maximum strength and protection
  • Ratings are molded-in or stamped-on
  • 50 A, 6 AWG terminal accommodation
  • Indoor dry unless protected by additional mean environmental conditions
  • Non-NEMA rating
  • 6 AWG wire
  • Thermoset interior provides superior heat resistance
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Withstands 2000 VAC minimum dielectric voltage
  • Brass blade
  • Steel pressure screw zinc plated terminal and ground screw
  • Steel weldment flanged casing
