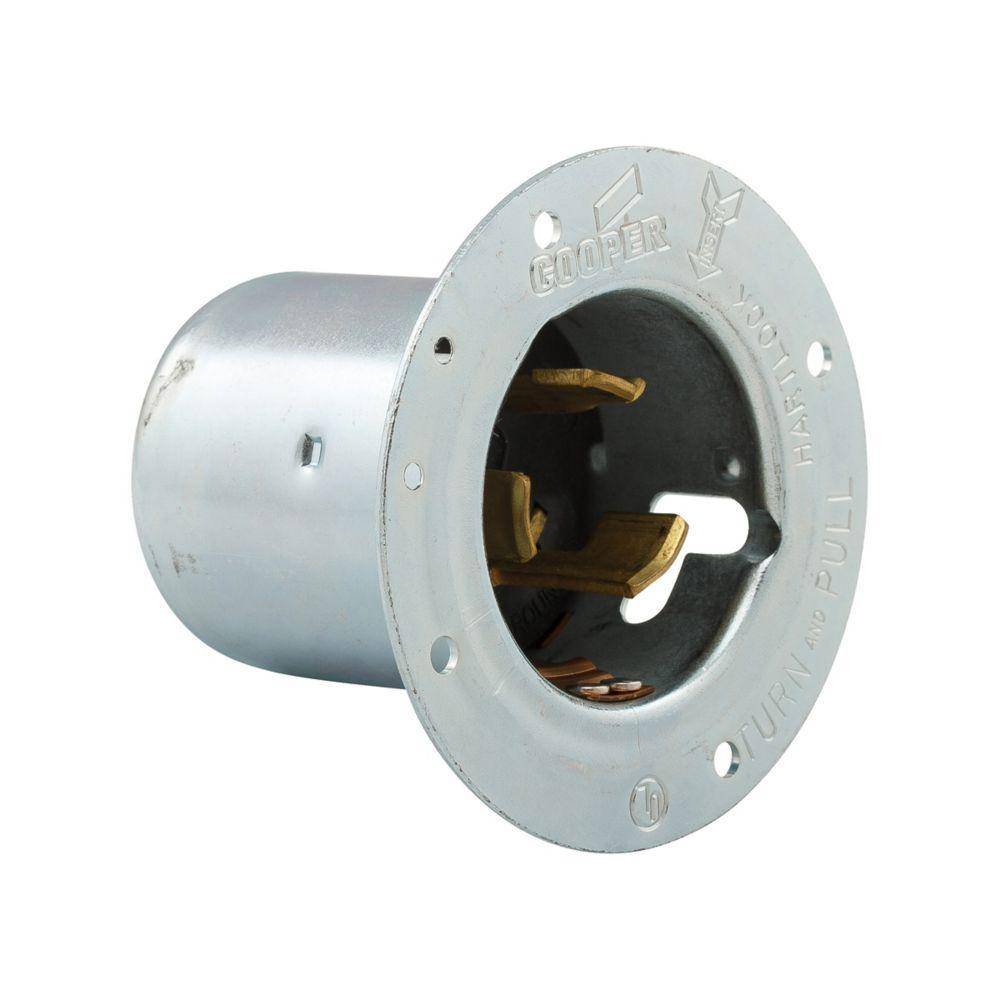

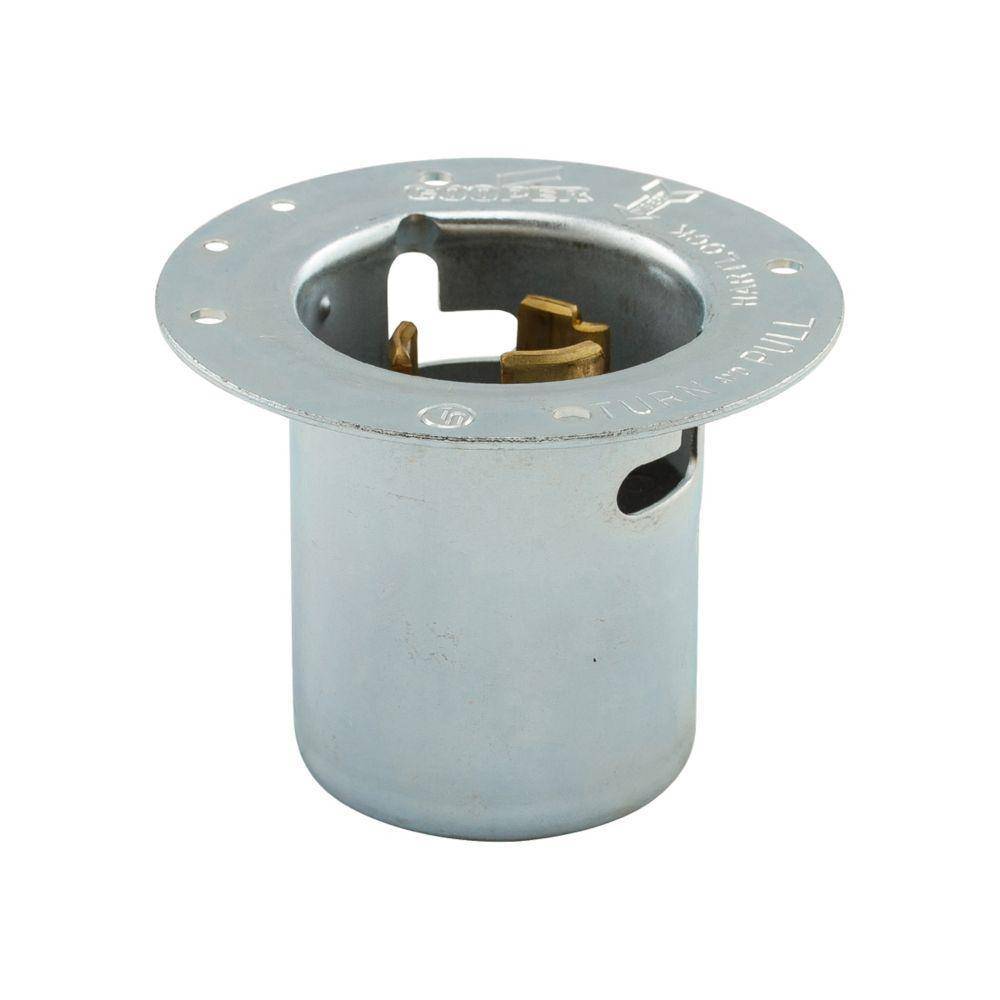

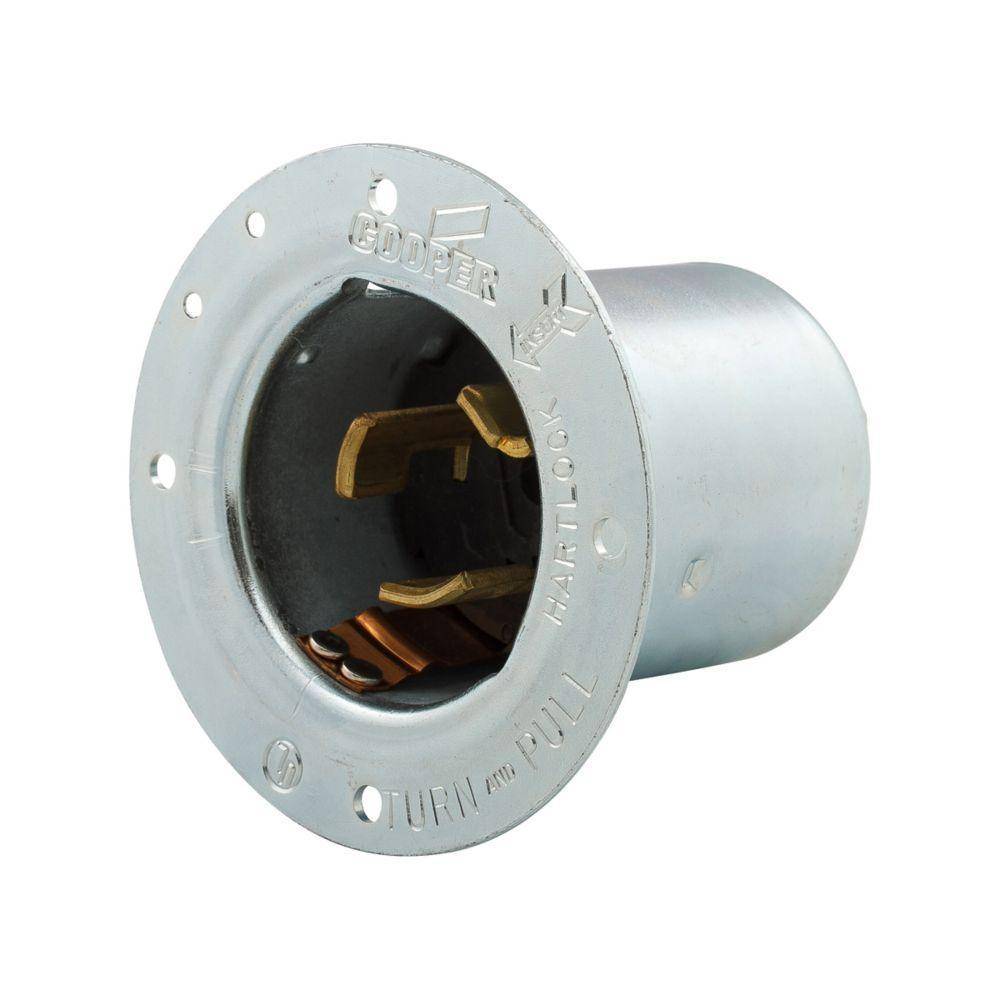

EATON Arrow Hart® Hart-Lock® CS8275 Locking Flanged Inlet, 250 VAC, 50 A, 2 Poles, 3 Wires, Steel

Short Description

Industrial Specification Grade 50A Locking Devices - California Standard Flanged Inlets, 50A, 250V/AC Non-NEMA 2-Pole/3-Wire. Innovative design, rugged materials and superior construction deliver lasting performance and reliable service in harsh industrial environments.

EATON Arrow Hart® Hart-Lock® Locking Flanged Inlet, 250 VAC, 50 A, 2 Pole, 3 Wires, Industrial Grade, Back Wire Terminal, Glass Filled Nylon, Steel
MFG #: CS8275

EECO #: HUCS8275

Brand: Eaton
UPC #: 040893681979
Attributes
Features
Documents
Product Information
Attributes
Color
Steel
UNSPSC
39121403
Material
Glass Filled Nylon
Application
Industrial Applications
Terminal Type
Back Wire
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Extra Heavy Duty Grounding Screw Mount
Grade
Industrial
Dimensions
3.5 x 2.62 x 2.17
Amperage Rating
50
Features
  • 10 to 6 AWG wire
Wiring_Device_Kellems_CS8275_Full_Engineering_Drawing
IDW_DOCUMENT_67053f16e1832d0bc5709202f60f3b171cb32451c258af427ff26db1ea4ea286
IDW_DOCUMENT_69bfe8042dc9bf8543500b17521fa06756d28d92e8be465197a45463caa5eade
IDW_DOCUMENT_91c0123bcd17287546414601a004ef920b900889eb498bebe191ae3ad6c18940
Wiring_Device_Kellems_HBL2646_Catalog
EATON_CS8275_Specification_Sheet
