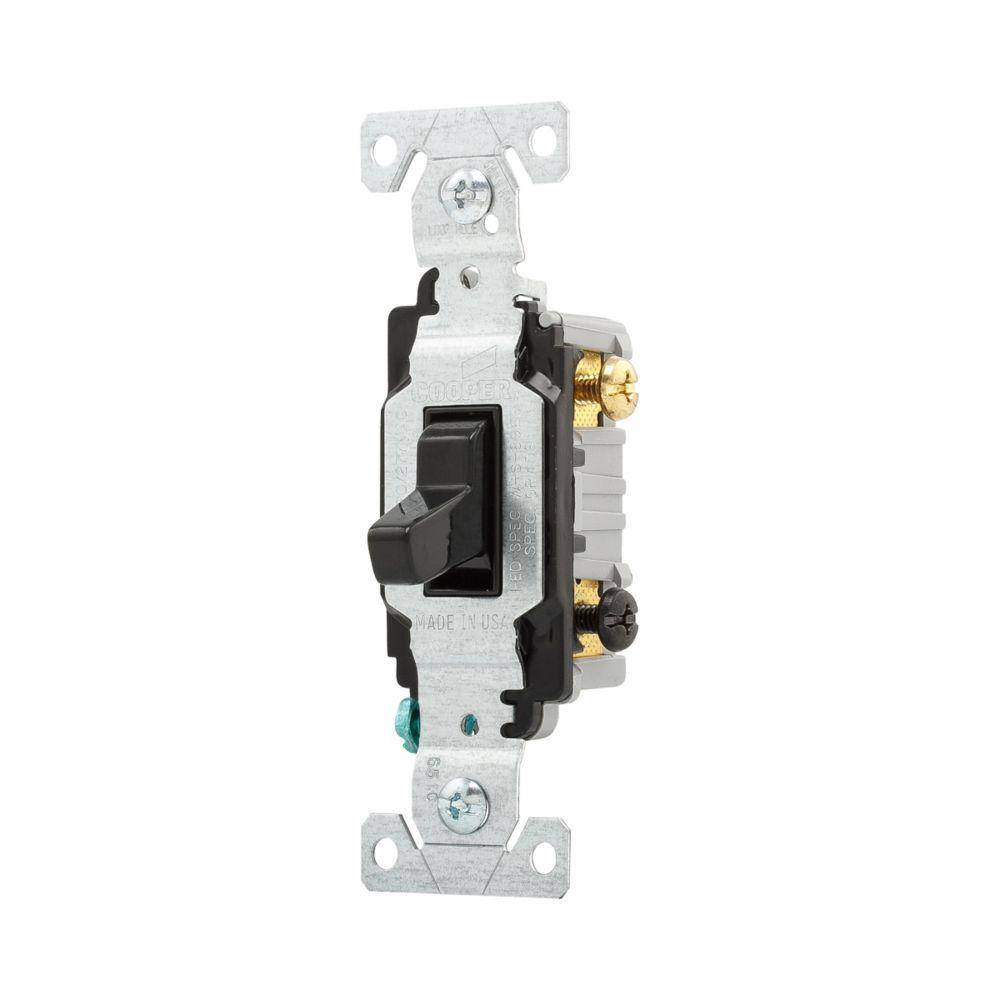

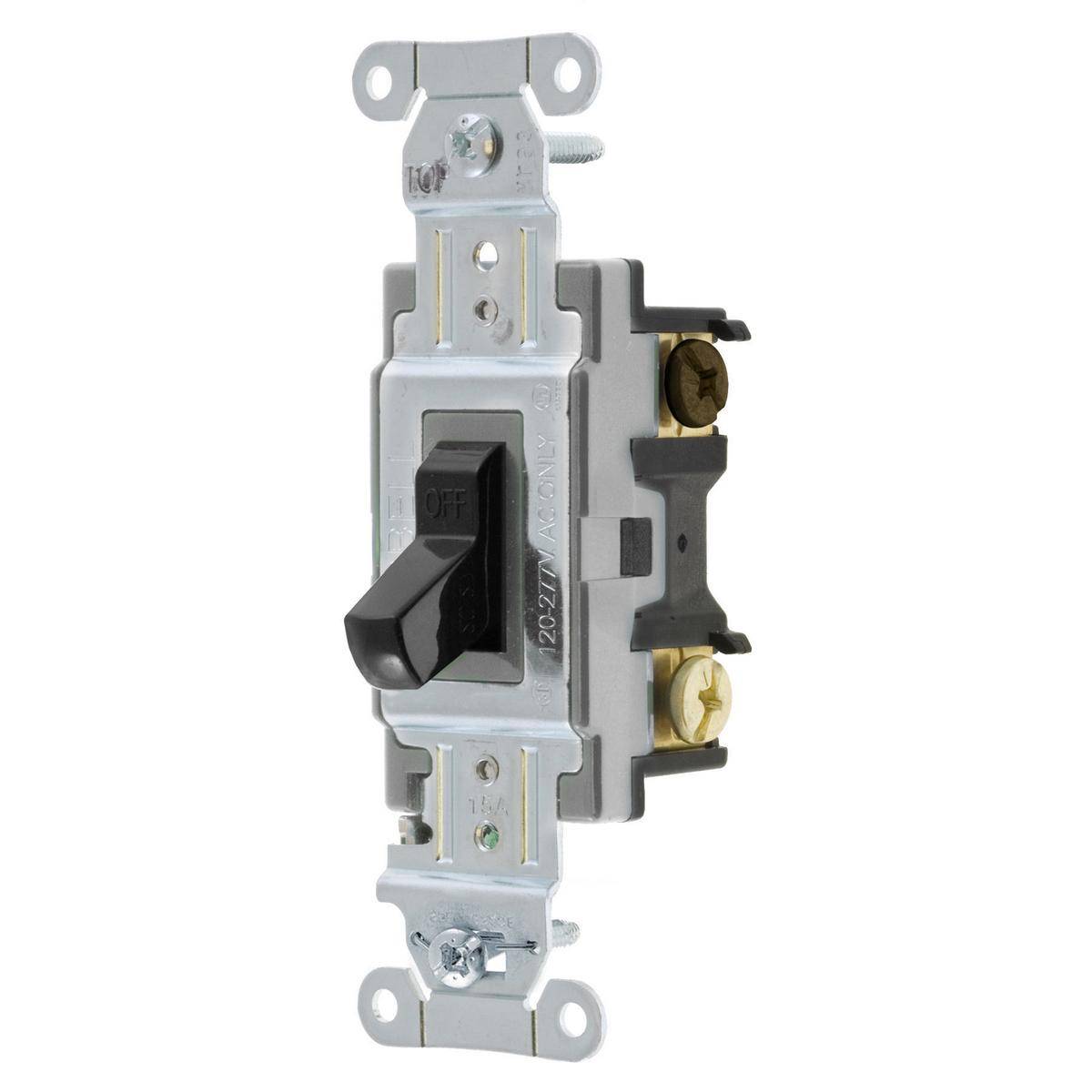

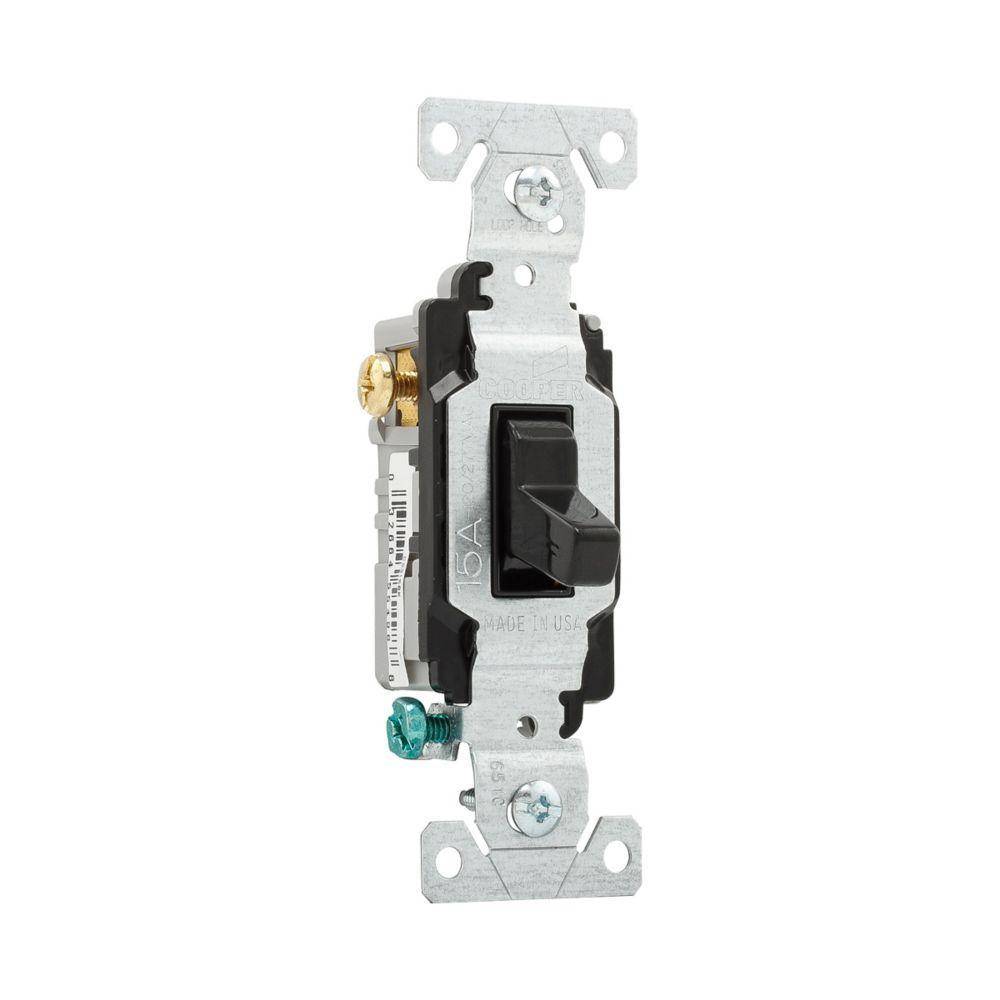

EATON Arrow Hart CS315BK 3-Way Heavy Duty Toggle Switch, 120/277 V, 15 A, 1/2 hp Power Rating

Short Description

Commercial grade - AC quiet switches - side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.

EATON Arrow Hart Toggle Switch, 3-Way Heavy Duty, Series: CS Series, 120/277 V, 15 A, 1/2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Compact Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 50000 Cycles Operating Cycles, PVC/Thermoplastic, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.13 in W x 0.87 in D Dimensions
MFG #: CS315BK

EECO #: HUCS315BK

Brand: Eaton
UPC #: 032664554988
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39122211
Material
PVC/Thermoplastic
Application
Commercial, Institutional Buildings, Structures - Commercial and Non-Residential Applications
Power Rating
1/2
Terminal Type
Side Wire/Screw
Contact Rating
15 A at 120/277 VAC
Voltage Rating
120/277
Actuator
Compact Toggle
Mounting
Wall
Enclosure
NEMA WD-1
Contact Configuration
2-Position
Environmental Conditions
-40 to 65 deg C Operating Temperature
Type
3-Way Heavy Duty
Series
CS Series
Dimensions
1.13 in W x 0.87 in D
Amperage Rating
15
Features
  • Spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wire
  • Tri-combo head mounting and terminal screws ease installation
  • 14 to 10 AWG terminal accommodation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • 3.28 in L screw to screw
  • 2.38 in L back
  • Copper alloy enclosure material
