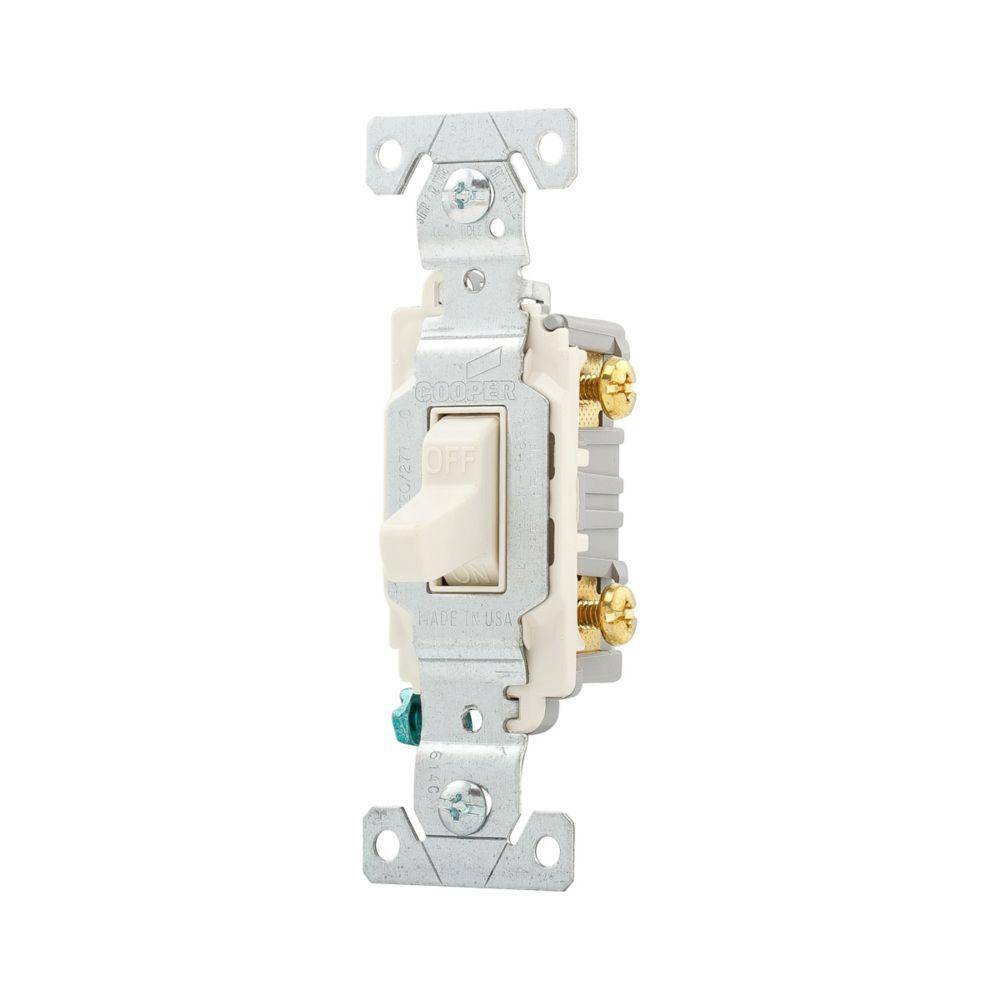

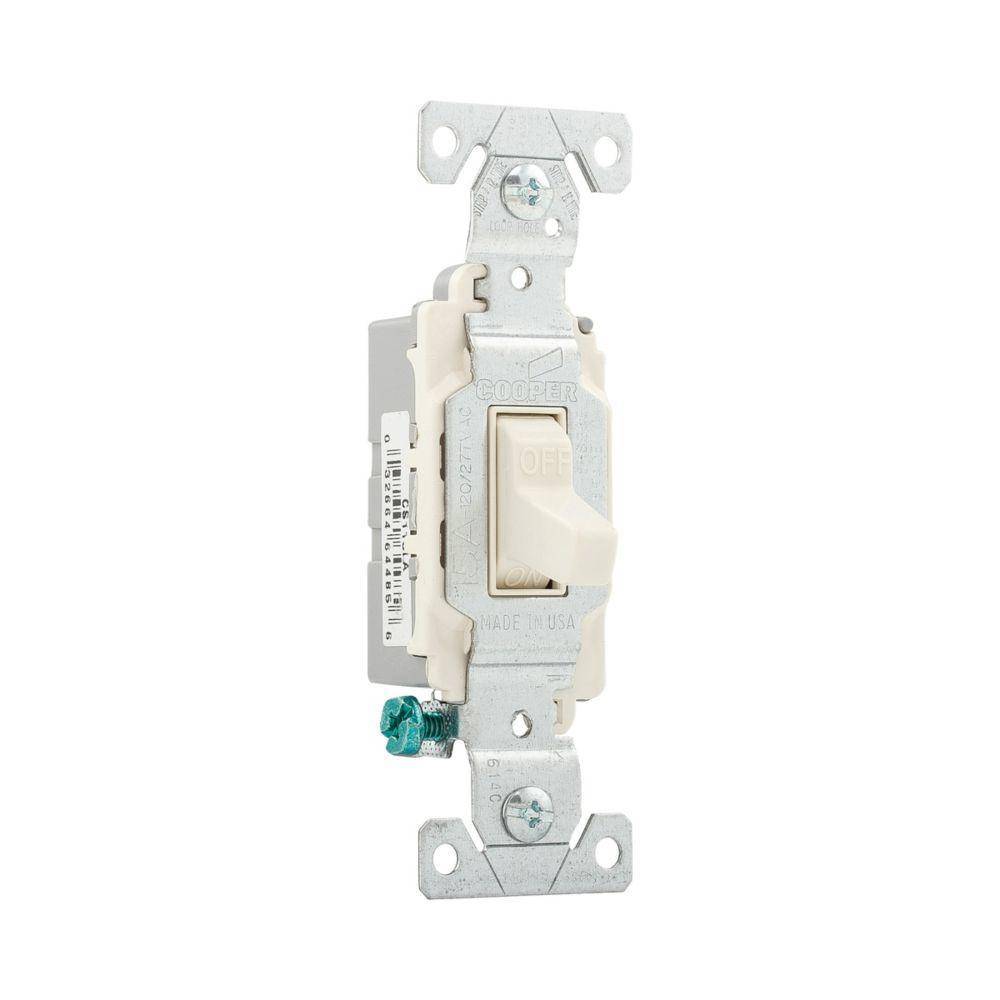

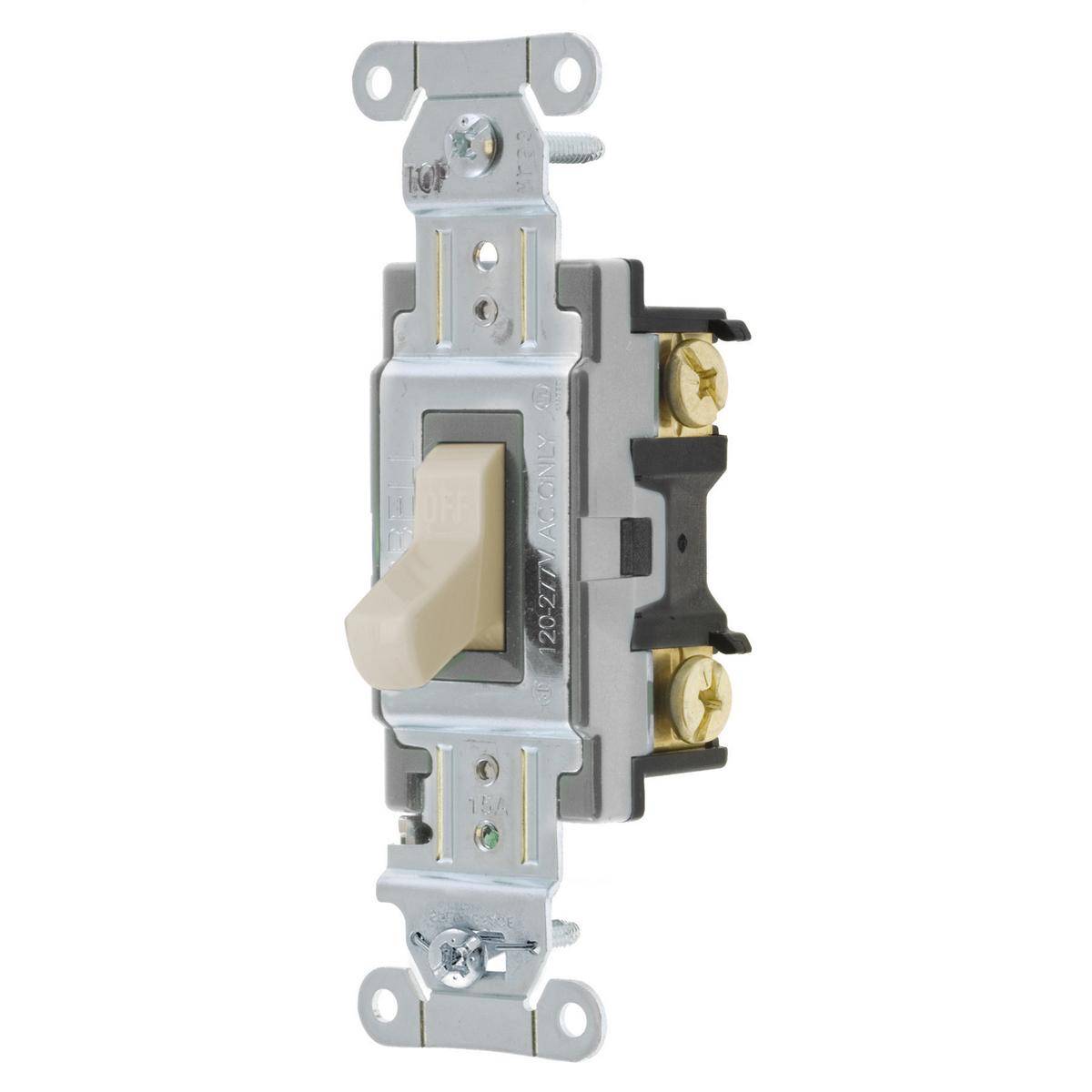

EATON Arrow Hart CS115LA Heavy Duty Specification Grade AC Toggle Switch, 120/277 V, 15 A, 1/2 hp, 2 hp Power Rating

Short Description

Commercial grade AC quiet switches side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard.

EATON Arrow Hart AC Toggle Switch, Heavy Duty Specification Grade, Series: CS Series, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Compact Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 50000 Cycles Operating Cycles, PVC, Light Almond, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.13 in W x 0.87 in D Dimensions
MFG #: CS115LA

EECO #: HUCS115LA

Brand: Eaton
UPC #: 032664644856
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122211
Material
PVC
Application
For fluorescent lighting fixtures, commercial and non-residential applications, commercial/institutional buildings/structures
Power Rating
1/2 hp, 2 hp
Terminal Type
Side Wire/Screw
Contact Rating
15 A at 120/277 VAC
Voltage Rating
120/277
Actuator
Compact Toggle
Mounting
Wall
Contact Configuration
2-Position
Environmental Conditions
-40 to 65 deg C Operating Temperature
Type
Heavy Duty Specification Grade
Series
CS Series
Dimensions
1.13 in W x 0.87 in D
Amperage Rating
15
Features
  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wire
  • Tri-combo head mounting and terminal screws ease installation
  • Color-coded strap marking identifies amperage
  • 14 to 10 AWG terminal
  • Nylon toggle
  • 2.38 in L back
  • 3.28 in L screw to screw
