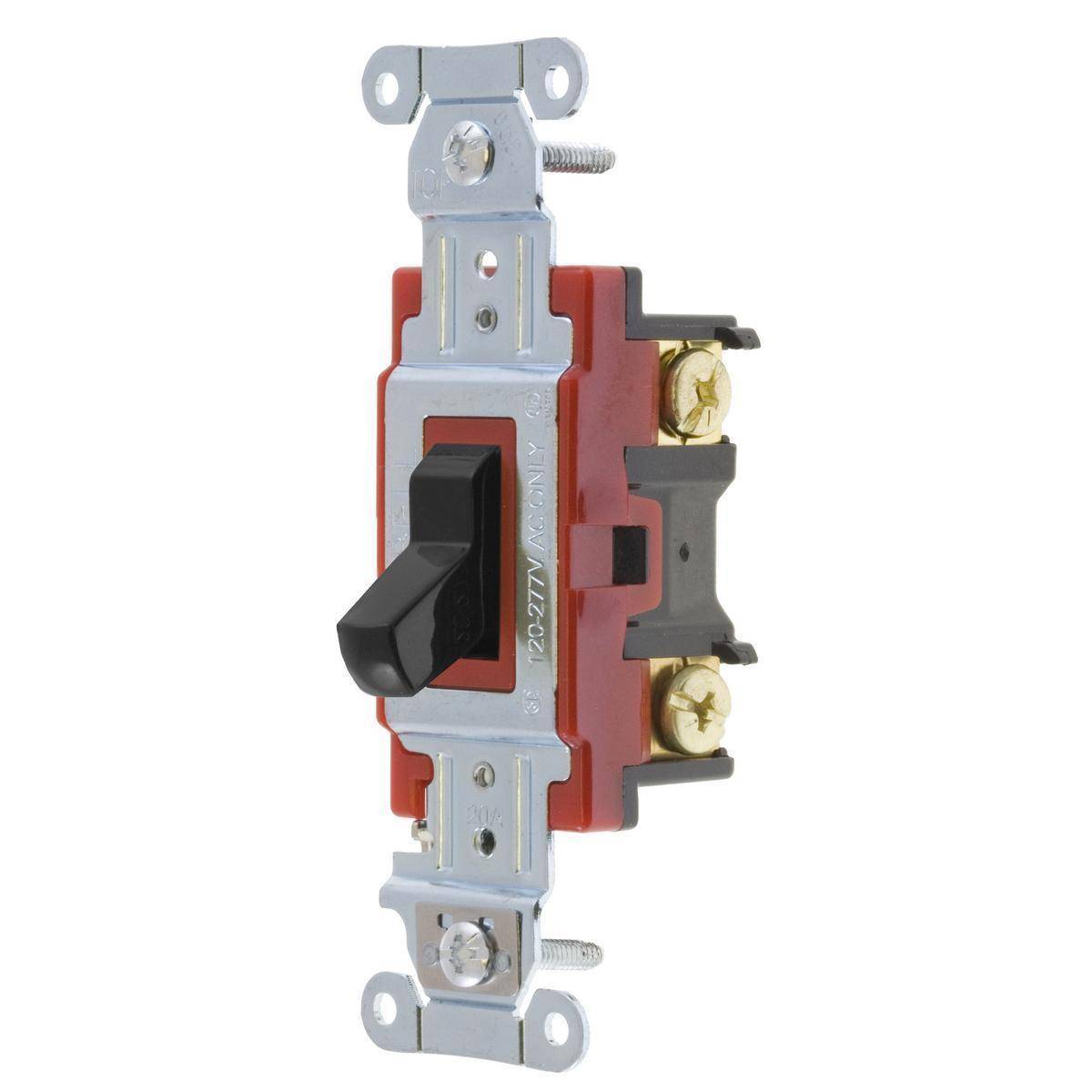

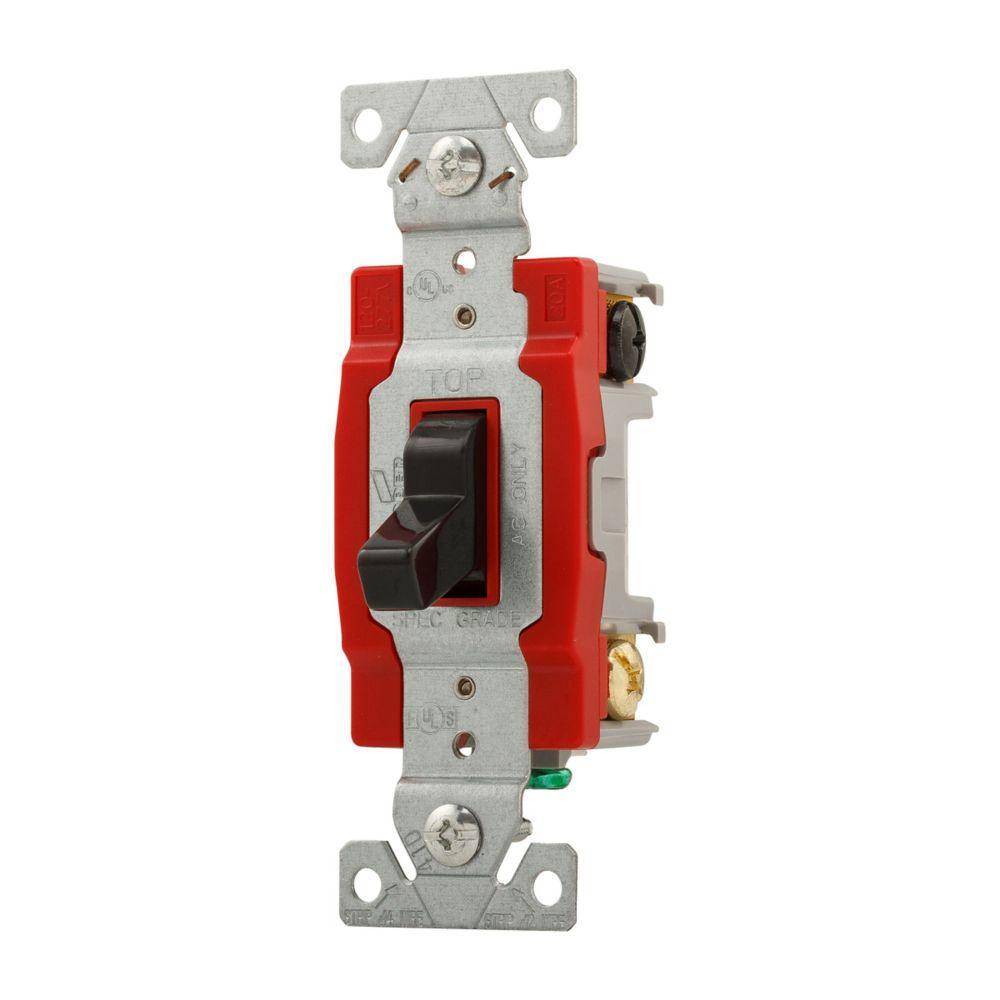

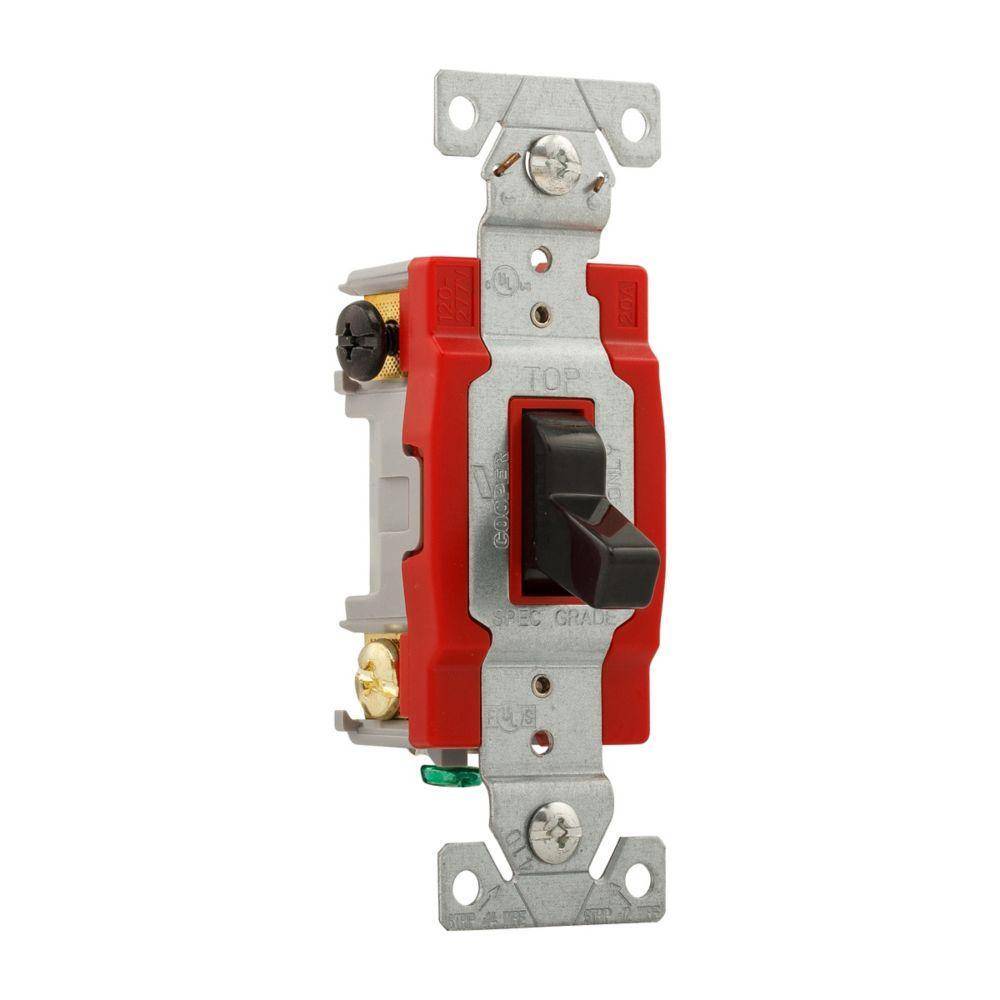

EATON Arrow Hart® 1224BK 1220 4-Way Construction Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating

Short Description

Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.

EATON Arrow Hart® Toggle Switch, 4-Way Construction Grade, Series: 1220, 120/277 V, 20 A, 1 hp Power, Toggle Actuator, Wall Mounting, Back/Side Wire/Screw Terminal, Polycarbonate, Black, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions
MFG #: 1224BK

EECO #: HU1224BK

Brand: Eaton
UPC #: 032664735875
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39122211
Material
Polycarbonate
Application
Construction Grade
Power Rating
1
Terminal Type
Back/Side Wire/Screw
Voltage Rating
120/277
Actuator
Toggle
Mounting
Wall
Contact Configuration
2-Position
Environmental Conditions
-4 to 140 deg F Operating Temperature
Type
4-Way Construction Grade
Series
1220
Dimensions
1.31 in L x 0.88 in W x 3.28 in H
Amperage Rating
20
Features
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Color coded top housing helps identify amperage
  • Back and side wire terminals accept up to 10 AWG solid or stranded wire
  • Dual back wire holes for maximum feed through wiring flexibility
  • 1-piece brass contact arm assures proper contact for low resistance switching
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Tri-combo terminal and mounting screws for flexibility in installation
  • 14 to 10 AWG wire
