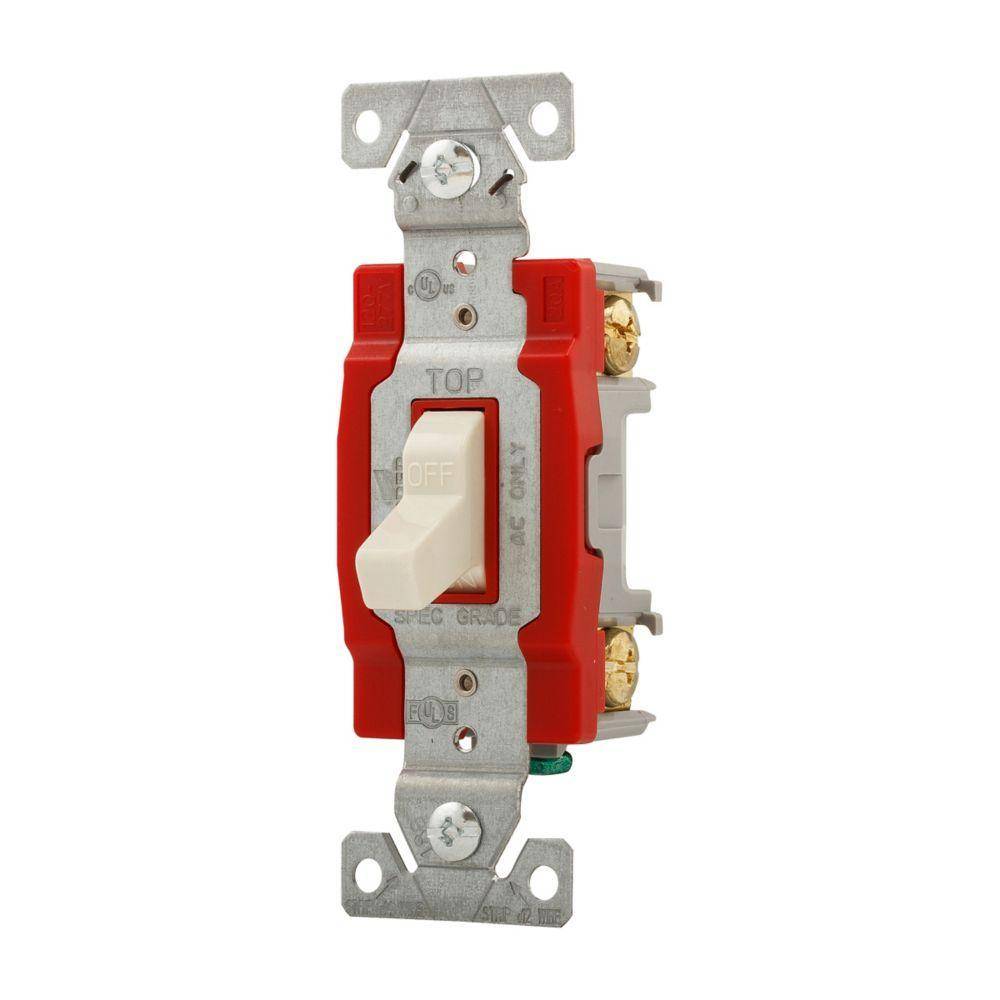

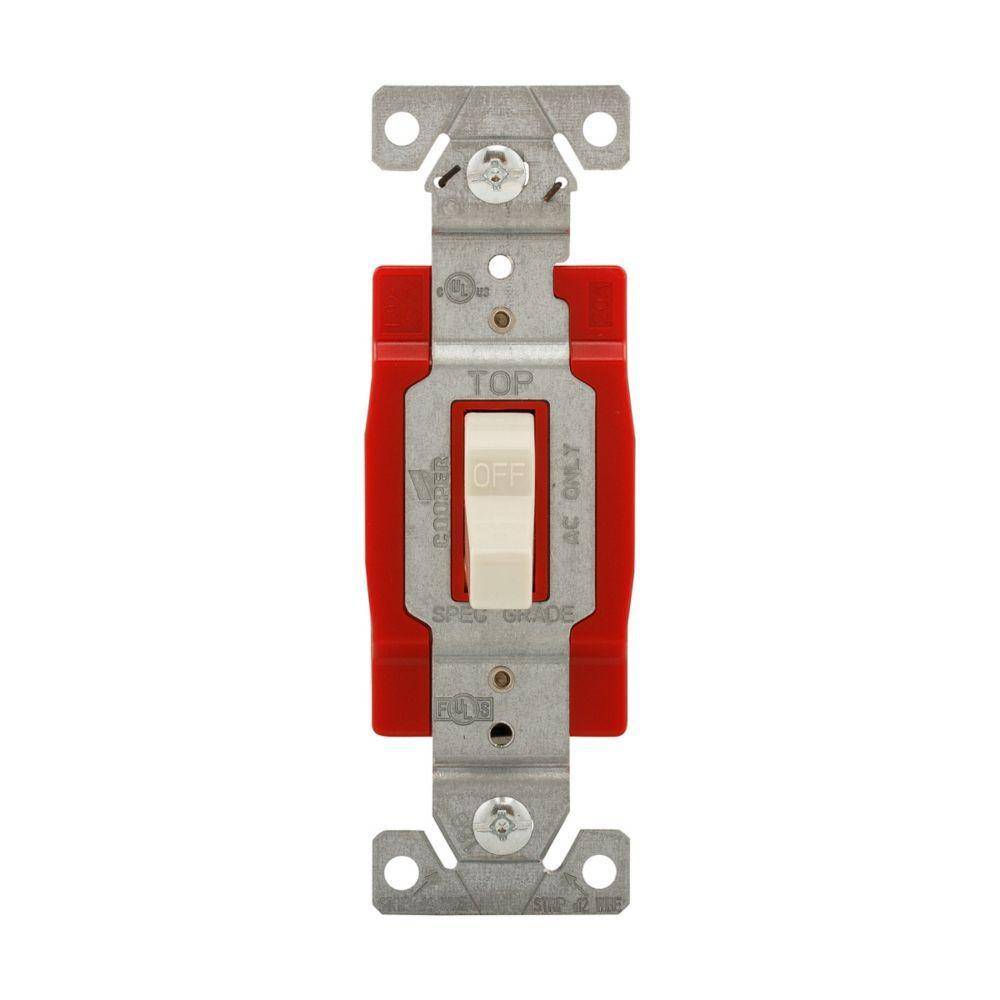

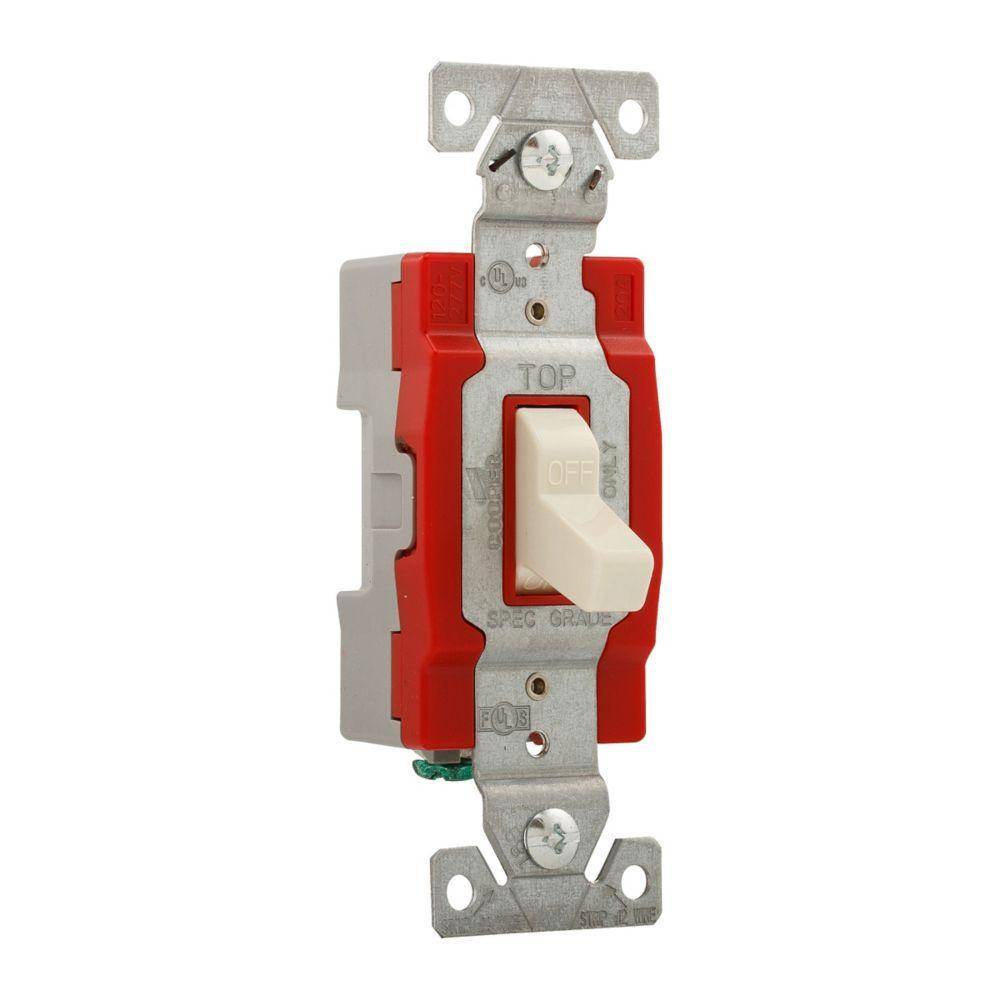

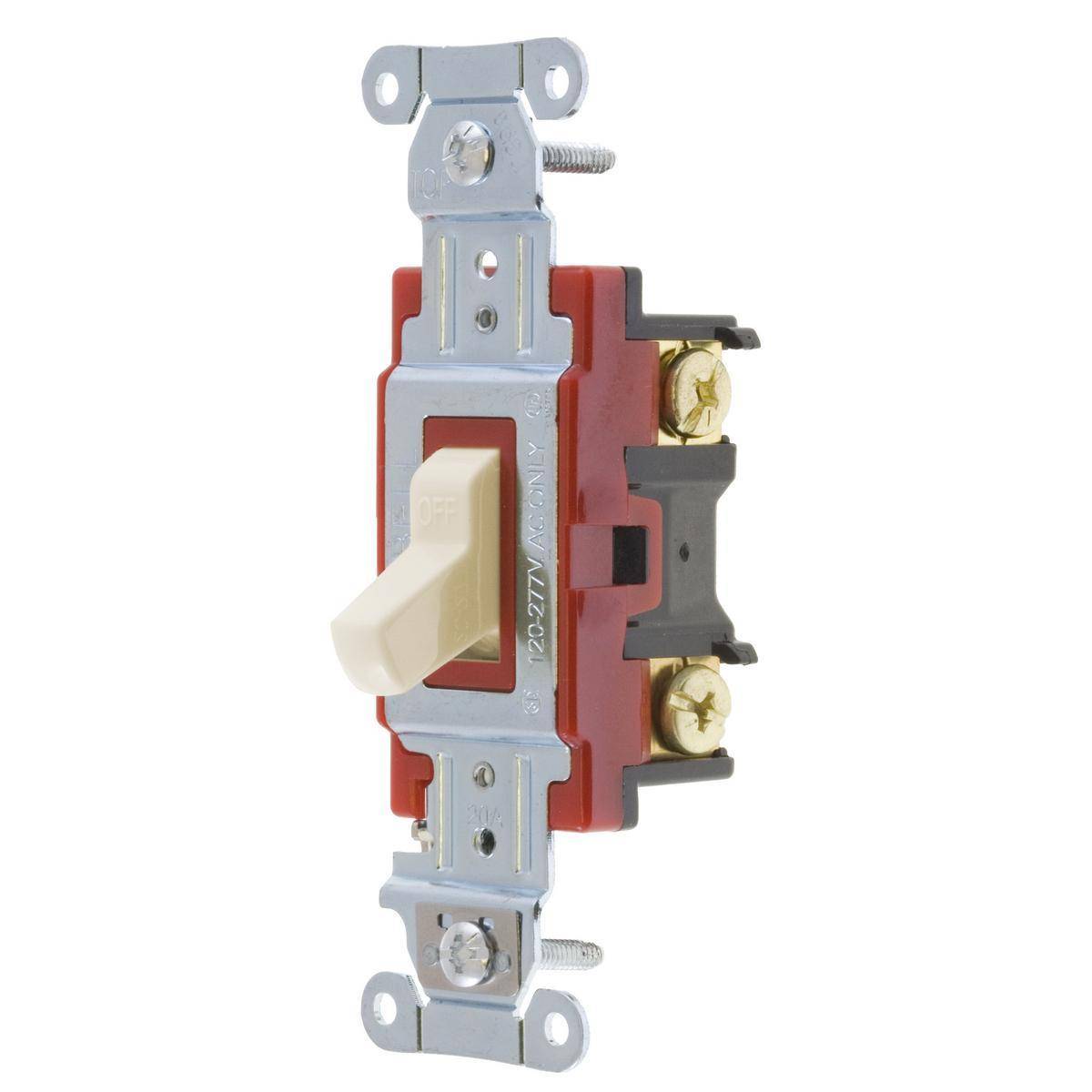

EATON Arrow Hart® 1221LA 1220 Construction Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating

Short Description

Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.

EATON Arrow Hart® Toggle Switch, Construction Grade, Series: 1220, 120/277 V, 20 A, 1 hp Power, 1 Pole, Toggle Actuator, Flush Mounting, Back/Side Wire/Screw Terminal, Polycarbonate, Light Almond, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions
MFG #: 1221LA

EECO #: HU1221LA

Brand: Eaton
UPC #: 032664735653
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122211
Material
Polycarbonate
Application
Commercial Applications
Power Rating
1
Terminal Type
Back/Side Wire/Screw
Voltage Rating
120/277
Actuator
Toggle
Mounting
Flush
Contact Configuration
2-Position
Environmental Conditions
-4 to 140 deg F Operating Temperature
Type
Construction Grade
Series
1220
Dimensions
1.31 in L x 0.88 in W x 3.28 in H
Amperage Rating
20
Features
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Color coded top housing helps identify amperage
  • Back and side wire terminals accept up to 10 AWG solid or stranded wire
  • Dual back wire holes for maximum feed through wiring flexibility
  • 1-piece brass contact arm assures proper contact for low resistance switching
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Tri-combo terminal and mounting screws for flexibility in installation
  • 14 to 10 AWG wire
