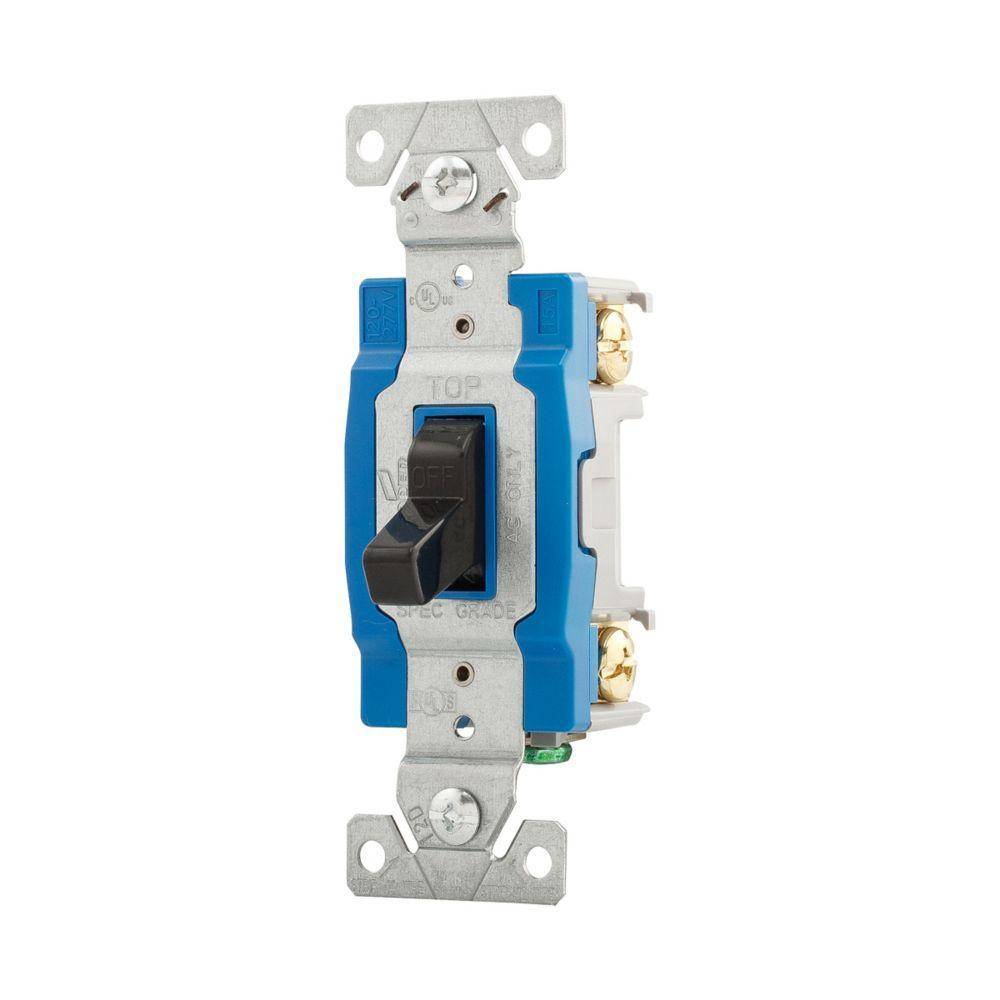

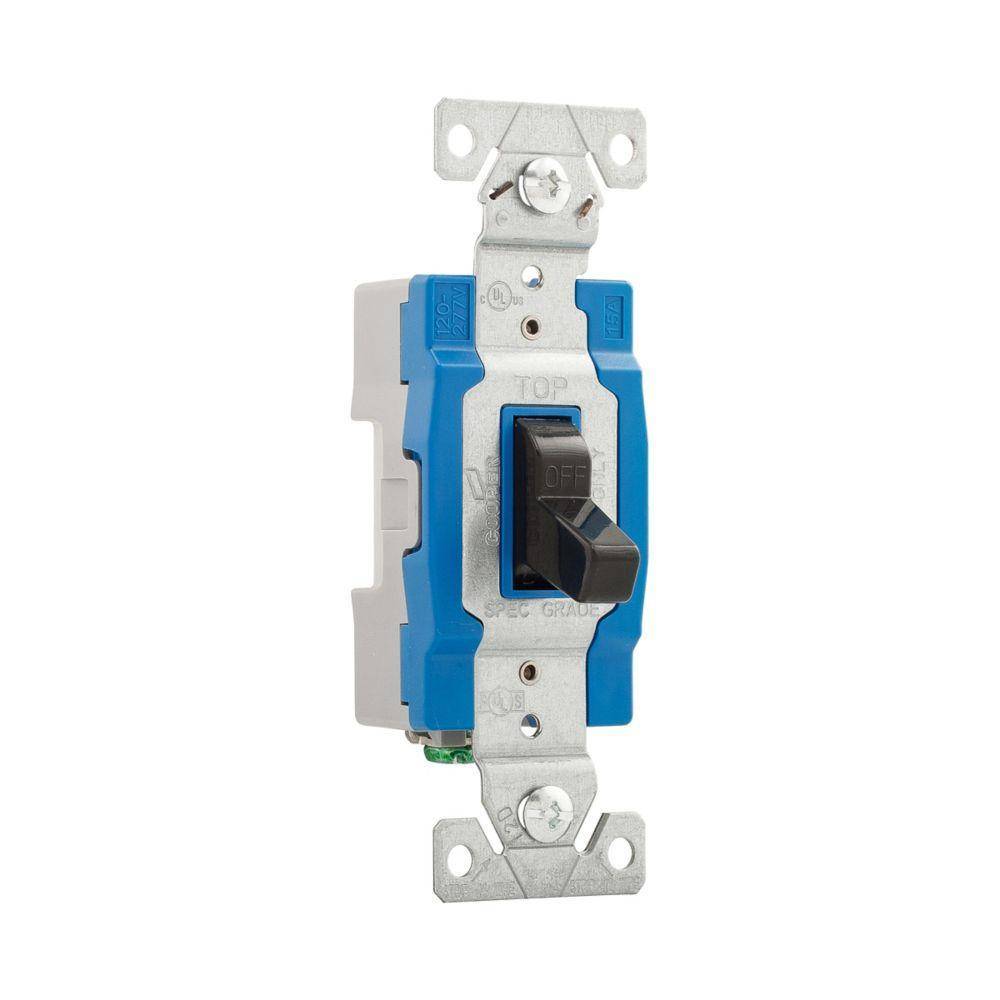

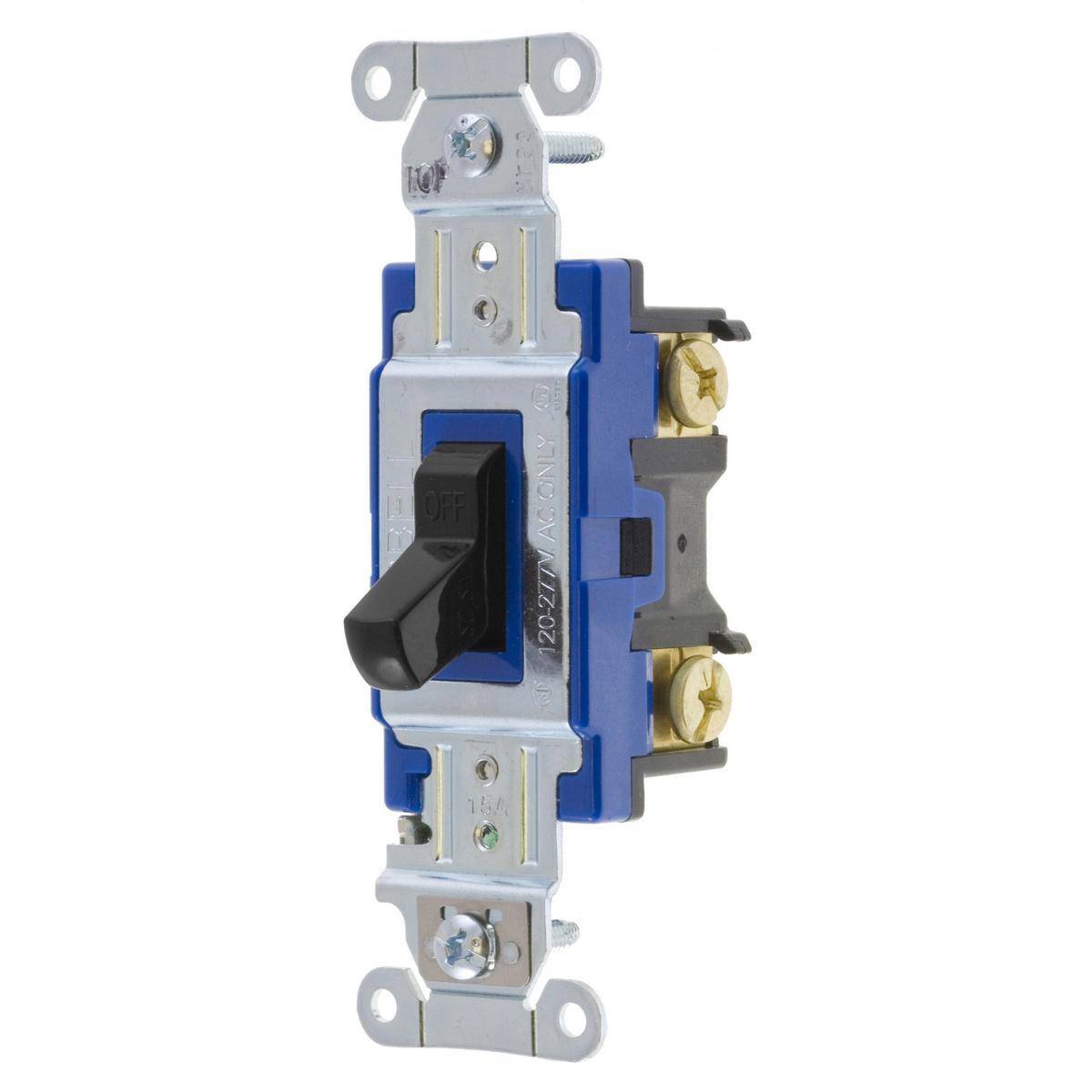

EATON Arrow Hart® 1201BK 1200 Construction Grade Toggle Switch, 120/277 VAC, 15 A, 1/2 hp

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.

EATON Arrow Hart® Toggle Switch, Construction Grade, Series: 1200, 120/277 VAC, 15 A, 1/2 hp, 1 Pole, Toggle, Wall, Back and Side Wired/Screw Terminal, Nylon/Polycarbonate, Black, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H
MFG #: 1201BK

EECO #: HU1201BK

Brand: Eaton
UPC #: 032664735493
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39122211
Material
Polycarbonate
Application
Commercial Applications
Power Rating
1/2
Terminal Type
Screw
Voltage Rating
120/277
Actuator
Toggle
Mounting
Wall
Contact Configuration
2-Position
Environmental Conditions
-4 to 140 deg F Operating Temperature
Type
Construction Grade
Series
1200
Dimensions
1.31 in L x 0.88 in W x 3.28 in H
Amperage Rating
15
Features
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Color coded top housing helps identify amperage
  • Back and side wire terminals accept up to 10 AWG solid or stranded wire
  • Dual back wire holes for maximum feed through wiring flexibility
  • 1-piece brass contact arm assures proper contact for low resistance switching
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Tri-combo terminal and mounting screws for flexibility in installation
  • 14 to 10 AWG wire
