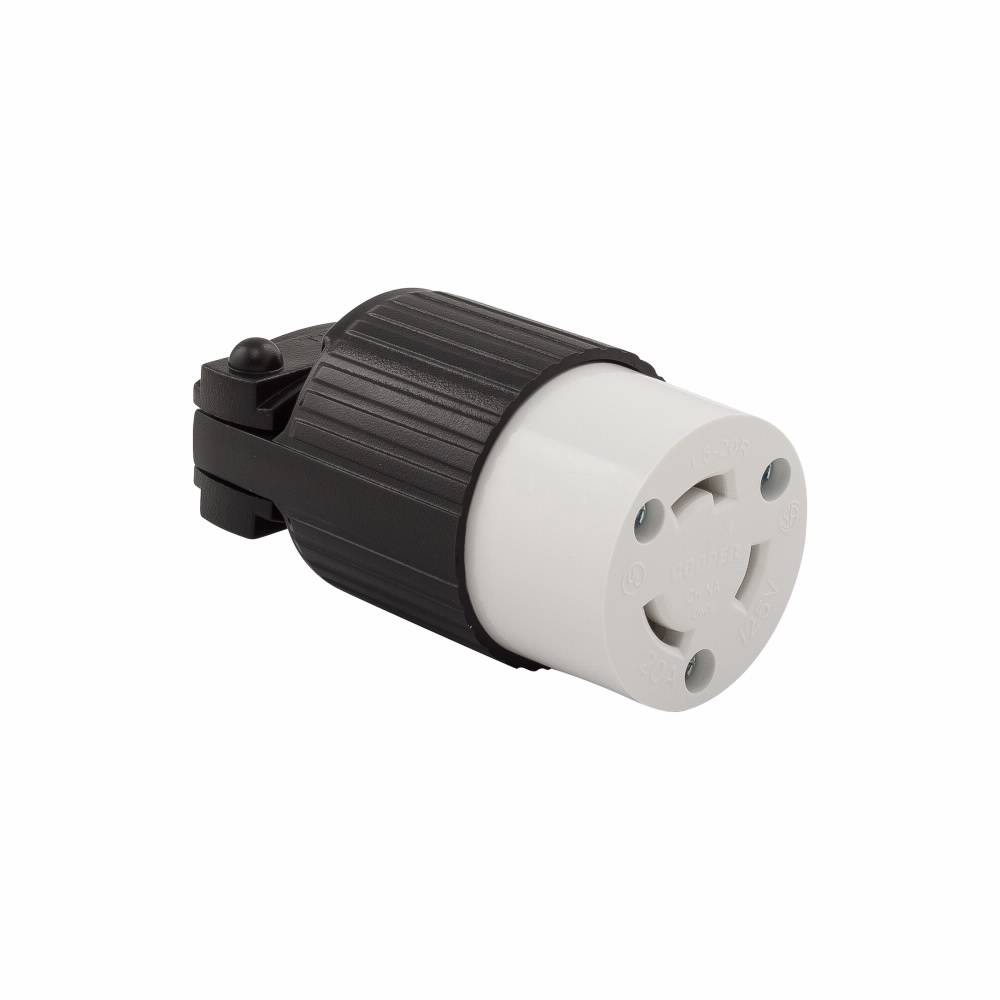

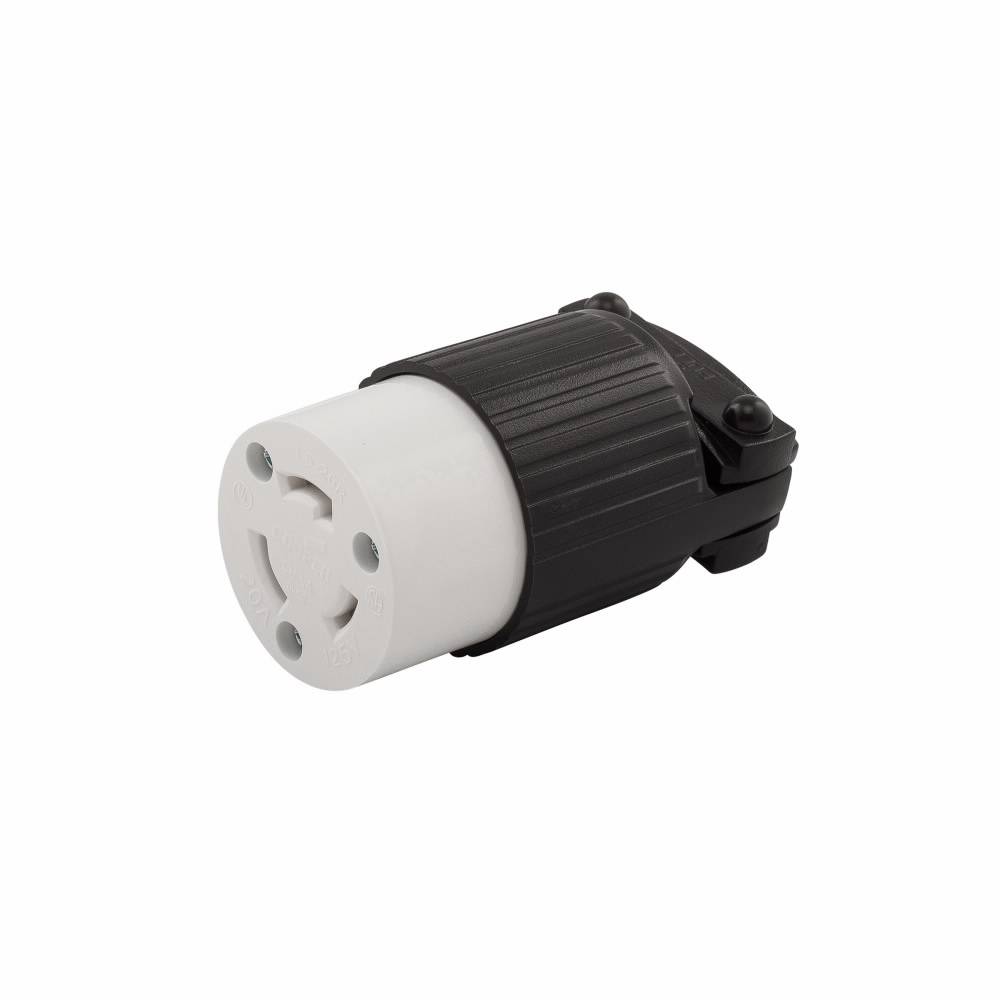

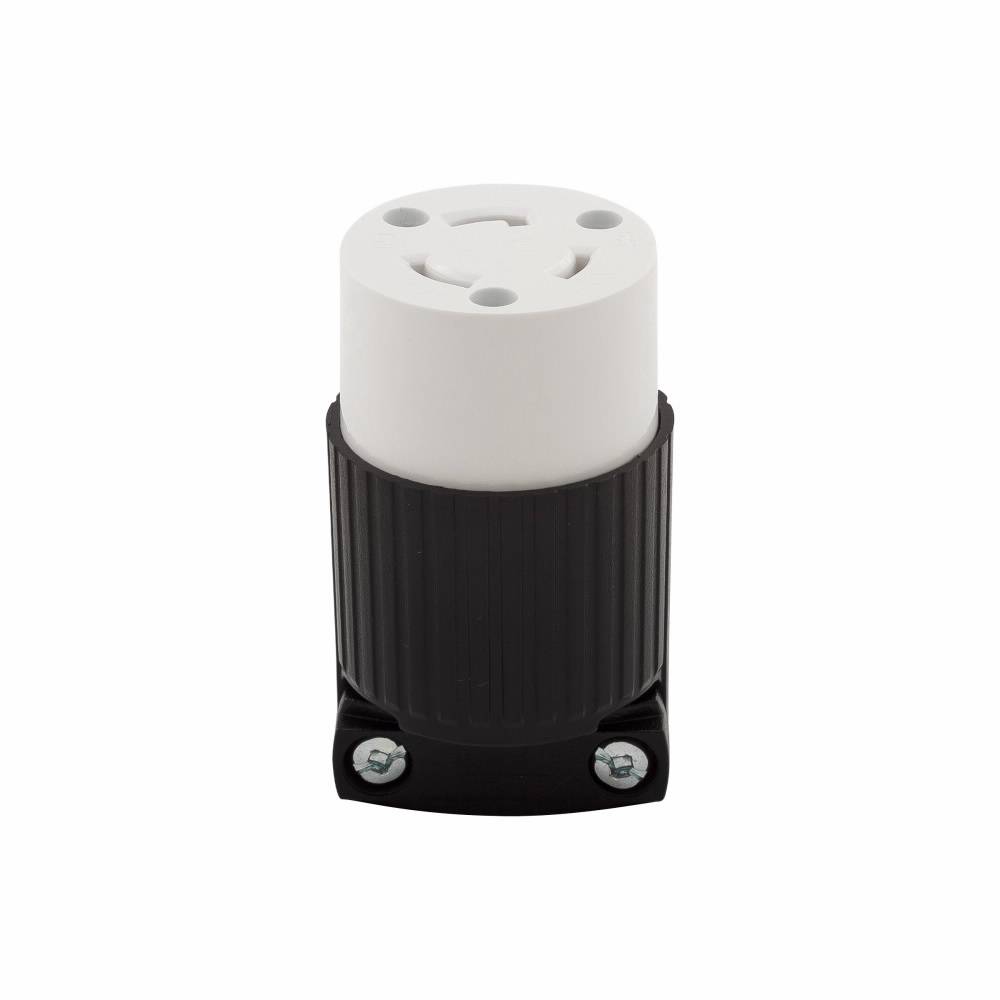

EATON Arrow Hart™ Eaton Wiring Devices L520C Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Short Description

125 V, 20 A, 2-Pole, 3-Wire, Black/White, Nylon, NEMA L5-20R, Polarized, Locking Device Connector

EATON Arrow Hart™ Eaton Wiring Devices Locking Connector, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA L5-20 NEMA Rating, Commercial/Specification Grade, 3/8 to 1 in Diameter Cord, -40 to 75 deg C, Back/Side Wire Terminal, Polycarbonate/PVC, Black/White, 1.82 in Dia x 3.13 in H Dimensions

MFG #: L520C

EECO #: HUL520C

Brand: Eaton
UPC #: 032664391101
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Approval
UL 498, CSA C22.2
Material
Polycarbonate/PVC
Application
For locking device applications
Ground Type
Grounding
Terminal Type
Back/Side Wire
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 75
Type
Polarized, Connector
Grade
Commercial/Specification
Cord Size
0.3 to 0.95 Inch
Dimensions
1.82 in Dia x 3.13 in H
Configuration
L5-20R
Amperage Rating
20
Features
  • Abuse-resistant thermoplastic construction
  • Back-wire dead front design
  • External cable clamp provides firm strain-relief
  • Back-wire terminal clamps for easy secure wiring
  • Individual wiring compartments with tapered channel for easy insertion of wires
  • Triple-combination head screws standard slot Phillips®/Robertson for use in the us and Canada
  • Clear cover over wiring compartments allow easy inspection of wiring terminations
  • Toggle actuator
  • Dead front design
  • 12 to 4 AWG wire
Qty Unit price
Ea
1 $30.35

Slqt
1 $30.35

Stpk
1 $30.35

Unit
1 $30.35
