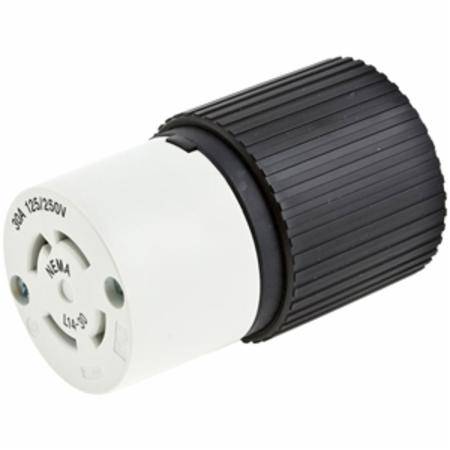

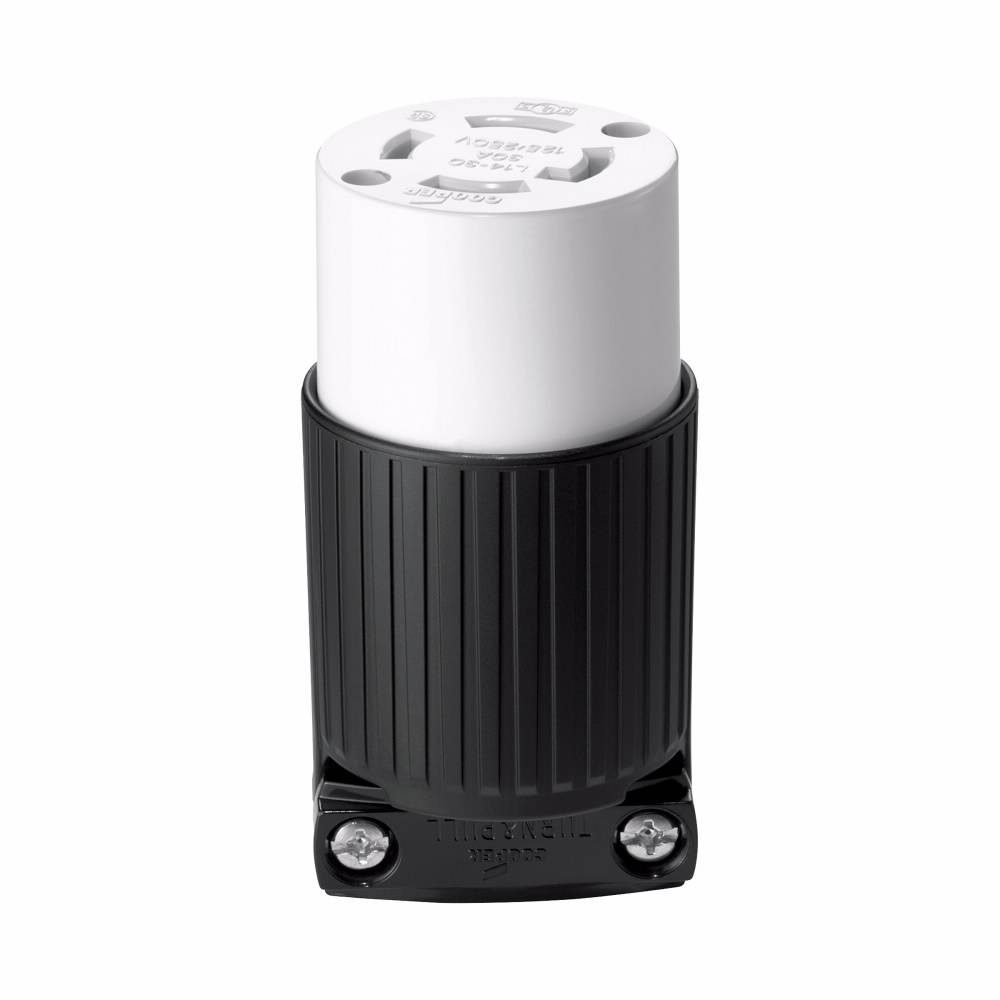

EATON Arrow Hart™ Eaton Wiring Devices L1430C Duplex GFCI Straight Locking Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

Short Description

125/250 V, 30 A, 3-Pole, 4-Wire, Black/White, Nylon, NEMA L14-30R, Polarized, Locking Device Connector

EATON Arrow Hart™ Eaton Wiring Devices Locking Connector, Duplex GFCI Straight, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30 NEMA Rating, Commercial/Specification Grade, 0.43 to 1.15 in Diameter Cord, -20 to 60 deg C, Back/Side Wire Terminal, Polycarbonate, Black/White

MFG #: L1430C

EECO #: HUL1430C

Brand: Eaton
UPC #: 032664544835
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121406
Approval
UL 498, CSA C22.2
Material
Polycarbonate
Application
For locking device applications
Ground Type
Grounding
Terminal Type
Back/Side Wire
Current Rating
30 Amp
Voltage Rating
125/250
Number Of Poles
3
Number of Wires
4
Temperature Rating
-20 to 60
Type
Duplex GFCI Straight
Grade
Commercial/Specification
Cord Size
0.625 to 1.05 Inch
Configuration
L14-30R
Amperage Rating
30
Features
  • Abuse-resistant thermoplastic construction
  • Back-wire dead front design
  • External cable clamp provides firm strain-relief
  • Back-wire terminal clamps for easy secure wiring
  • Individual wiring compartments with tapered channel for easy insertion of wires
  • Triple-combination head screws standard slot Phillips®/Robertson for use in the us and Canada
  • Clear cover over wiring compartments allow easy inspection of wiring terminations
  • Clearly marked rating NEMA configuration and standard compliances on face of connector
  • Commercial specification grade, tamper-resistant, wiring type back and Side wire
  • Nylon top housing, PVC bottom housing
  • Dead front design
  • 14 to 8 AWG wire
HUBKEL_L1420C_CAD
HUBKELINST00599
Qty Unit price
Ea
1 $82.75

Slqt
1 $82.75

Stpk
1 $82.75

Unit
1 $82.75
