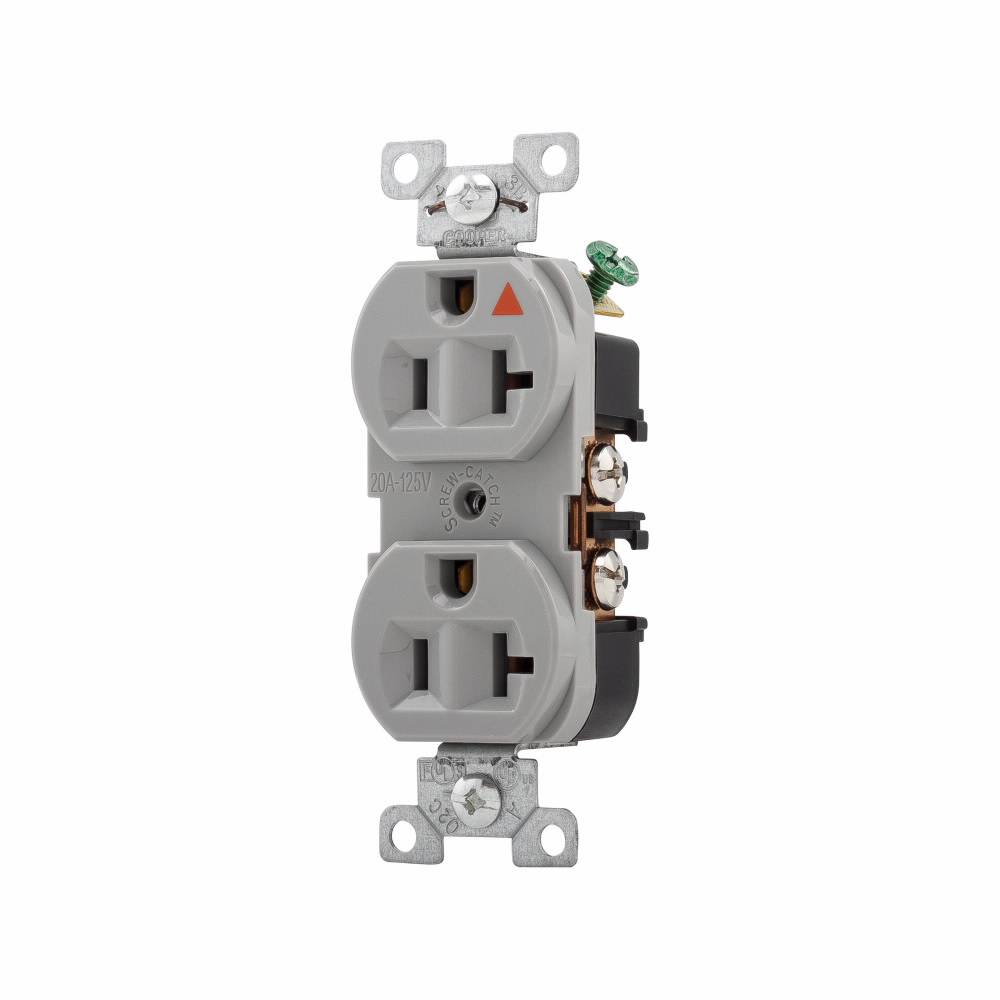

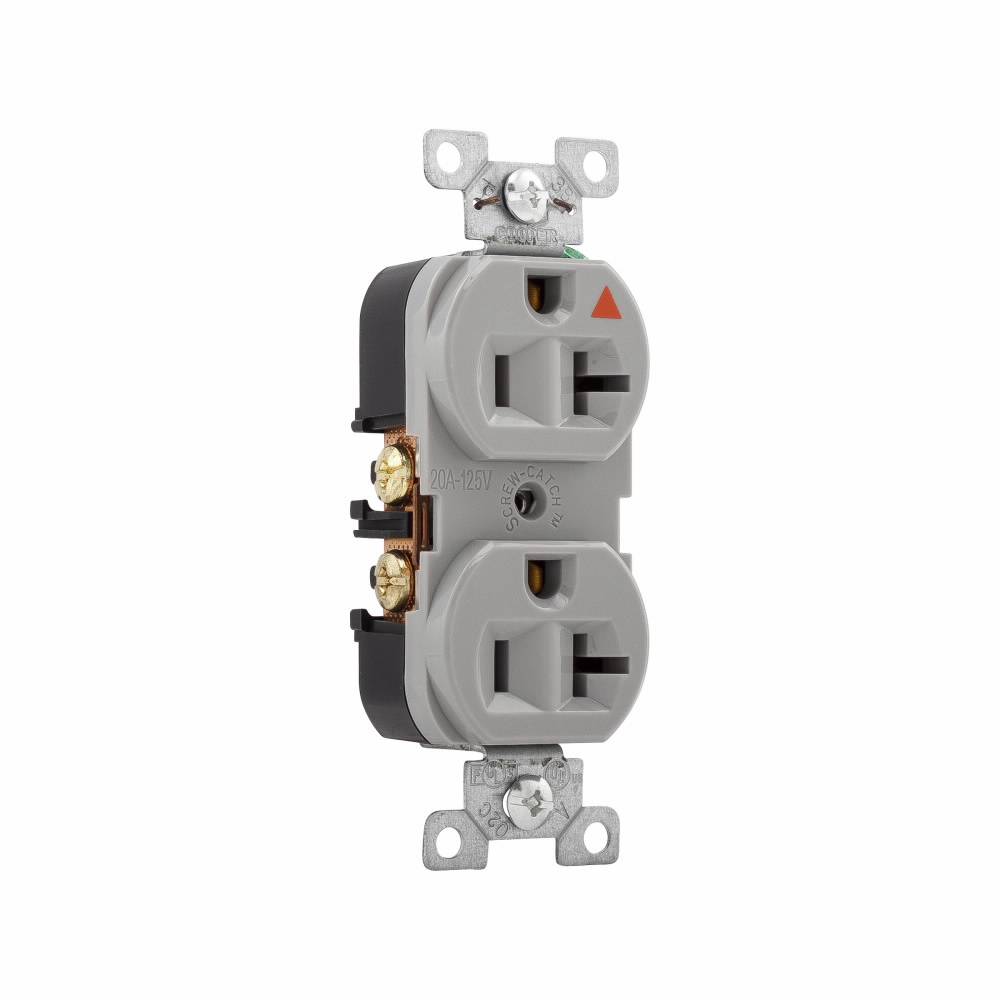

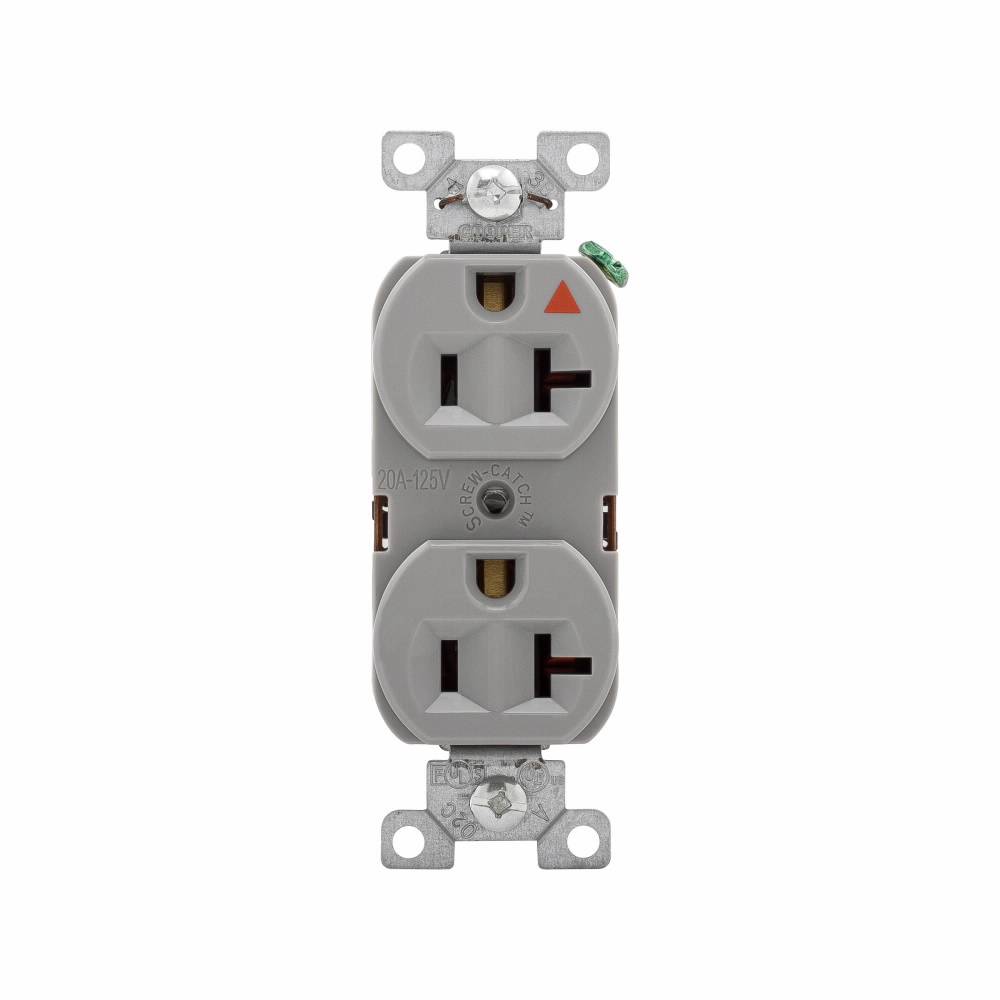

EATON Arrow Hart® IG5362GY IG5362 Duplex Grounding Isolated Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Short Description

Construction specification grade straight blade receptacles - 15 A 125 VAC, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and federal specification WC596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding Isolated, Series: IG5362, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction/Industrial Grade, -4 to 158 deg F, Screw Terminal, Nylon, Gray, 4 in H x 1.24 in W x 0.8 in D Dimensions

MFG #: IG5362GY

EECO #: HUIG5362GY

Brand: Eaton
UPC #: 032664735424
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498, CSA C22.2
Material
Nylon
Application
For used to provide a consistent, reliable means of connectivity in a wide variety of environments including commercial office spaces
Ground Type
Isolated Ground
Terminal Type
Screw
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Temperature Rating
-4 to 158
Type
Duplex Grounding Isolated
Grade
Construction/Industrial
Series
IG5362

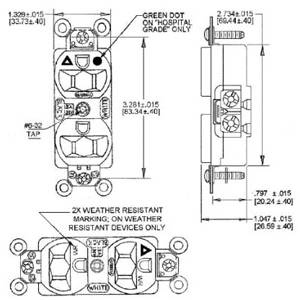

Dimensions
4 in H x 1.24 in W x 0.8 in D
Configuration
5-20R
Amperage Rating
20
Constructional Feature
Impact Resistant
Features
  • High impact and chemical resistant nylon face maintains receptacle integrity
  • All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
  • Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
