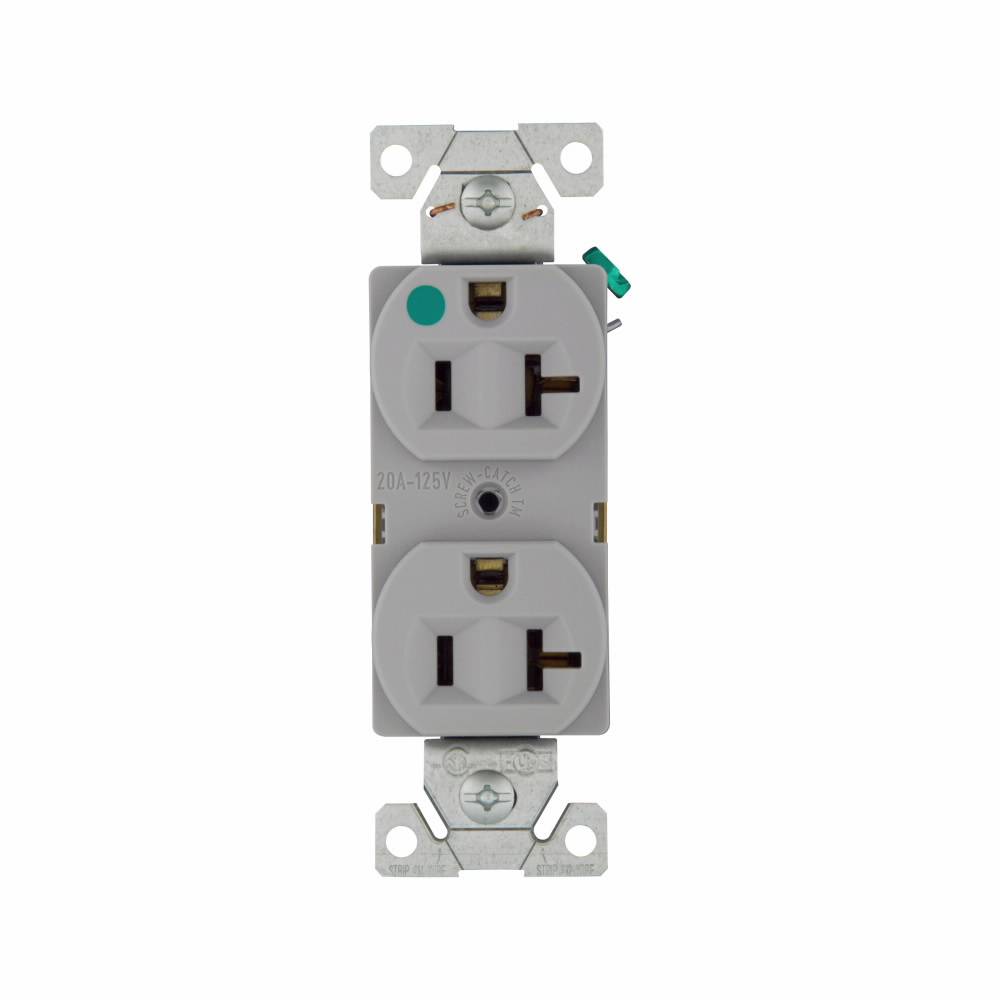

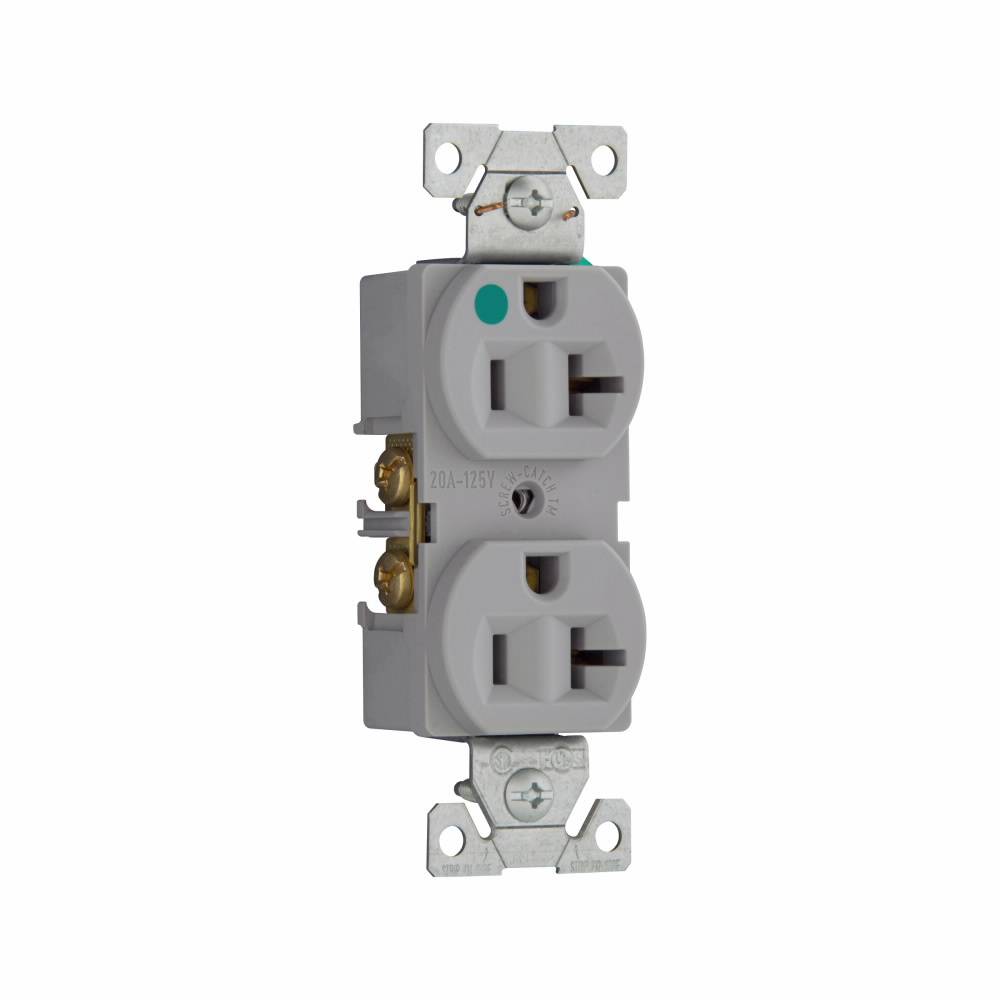

EATON Arrow Hart™ Eaton Wiring Devices 8300GY Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Short Description

Hospital specification grade straight blade receptacles - back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Single, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Hospital Grade, -20 to 90 deg C, Screw Terminal, Nylon, Gray, 4.19 in H x 1.3 in W x 0.88 in D Dimensions

MFG #: 8300GY

EECO #: HU8300GY

Brand: Eaton
UPC #: 032664705533
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498, CSA C22.2
Material
Nylon
Application
Industrial Receptacle Applications
Ground Type
Grounding
Terminal Type
Screw
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Temperature Rating
-20 to 90
Type
Single
Grade
Industrial/Hospital
Dimensions
4.19 in H x 1.3 in W x 0.88 in D
Configuration
5-20R
Amperage Rating
20
Constructional Feature
Impact/Chemical Resistant
Features
  • Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Nylon insulation
  • Wall mount
  • 14 to 10 AWG wire terminal
HUBKEL_8300GY_CAD
HUBKELE15735_A2_A22_A56
HUBKELE15782_1
HUBKELINST00597
EATON_TR6252W_BOX_Brochure
