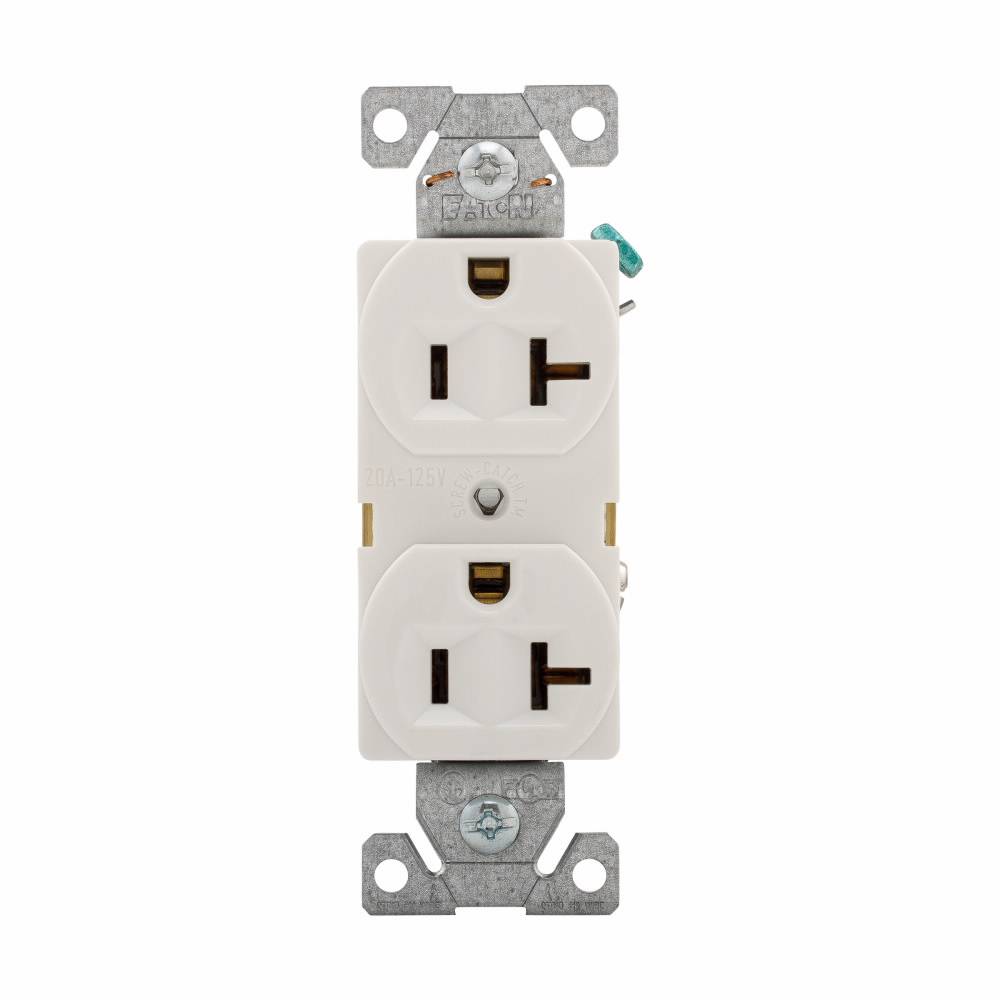

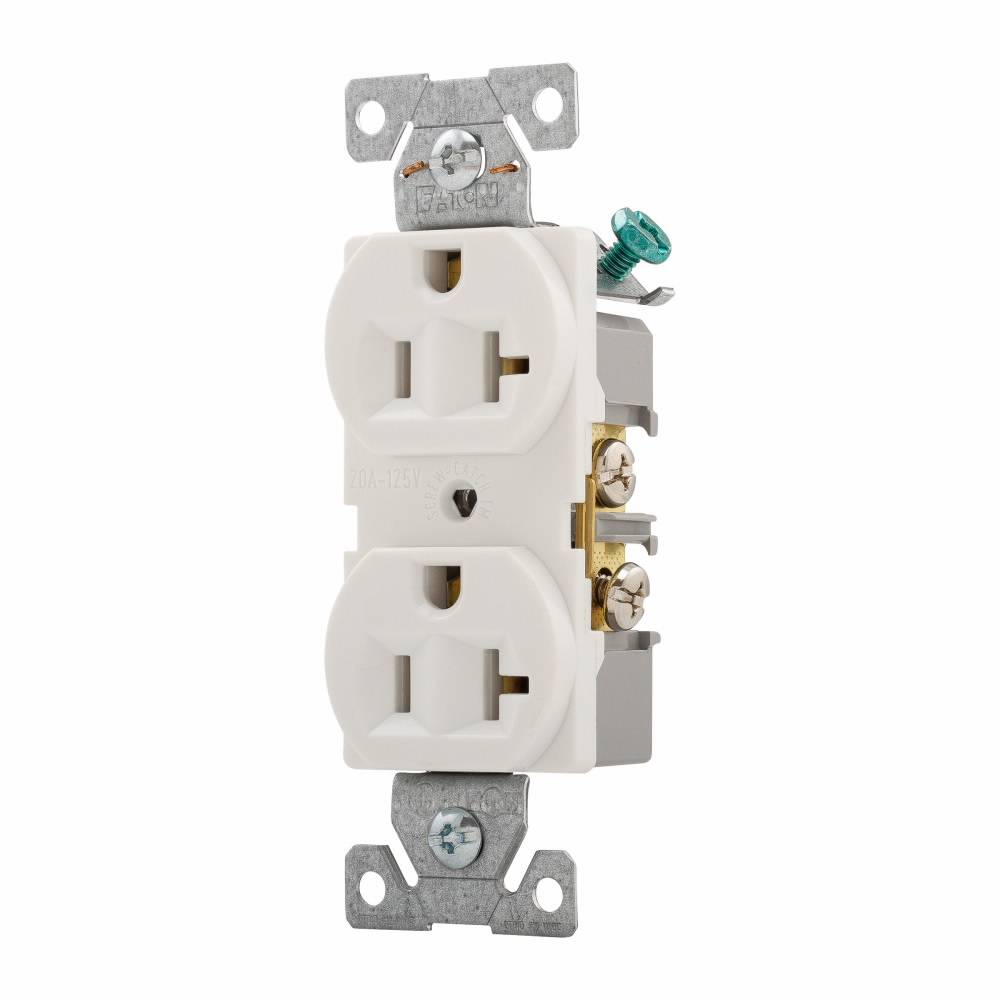

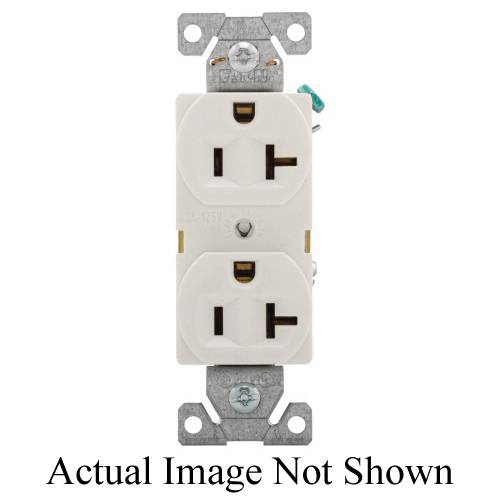

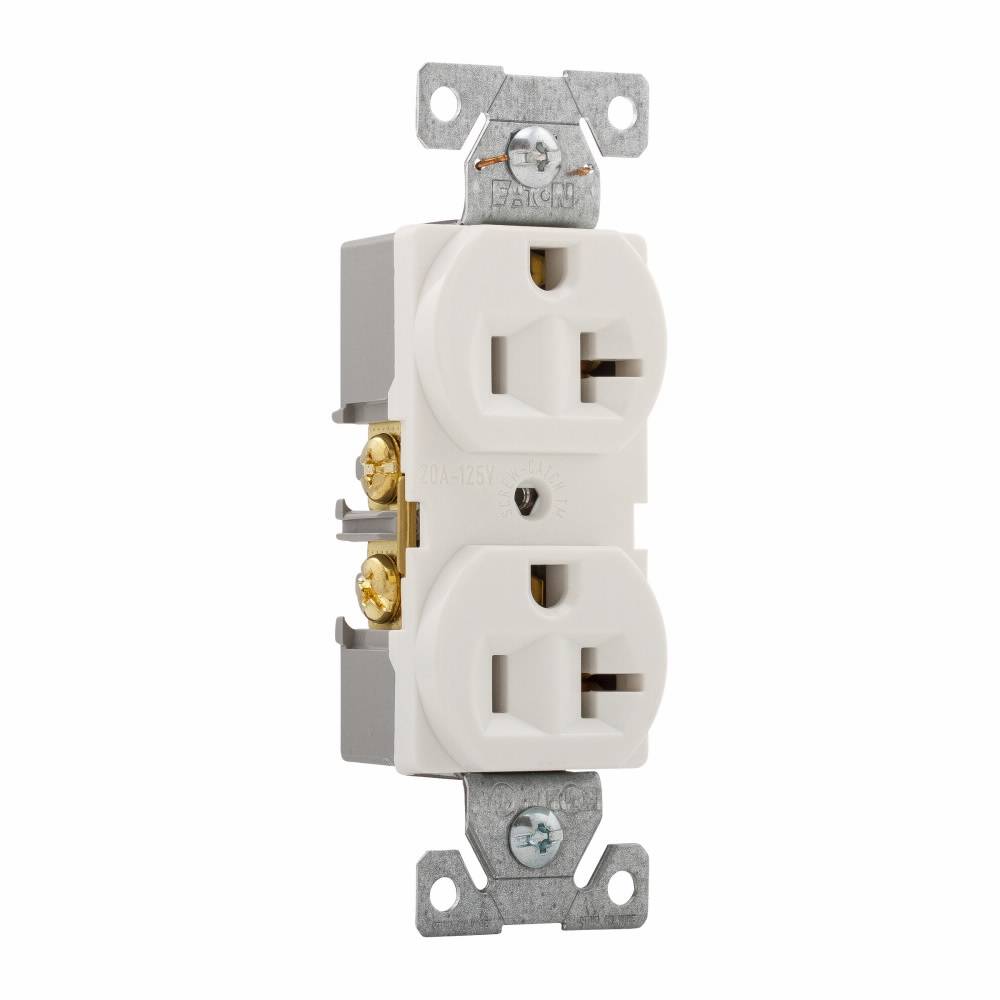

EATON Arrow Hart™ Eaton Wiring Devices 5362W Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Short Description

Construction specification grade straight blade receptacles - 20 A, 125 VAC, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification W-C-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Construction Grade, -20 to 70 deg C, Screw Terminal, Nylon, White, 4.19 in H x 1.32 in W x 0.88 in D Dimensions

MFG #: 5362W

EECO #: HU5362W

Brand: Eaton
UPC #: 032664704475
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498, CSA C22.2
Material
Nylon
Application
Non-Residential Applications
Ground Type
Grounding
Terminal Type
Screw
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Temperature Rating
-20 to 70
Type
Duplex
Grade
Commercial/Construction
Dimensions
4.19 in H x 1.32 in W x 0.88 in D
Configuration
5-20R
Amperage Rating
20
Features
  • High impact-resistant thermoplastic mounting strap for long lasting durable installation
  • Convenient built-in 10 and 12 AWG wire strippers
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Extra long/wide mounting strap maintains assembly security and helps reach oversize cut-outs
  • Nylon insulation
  • Wall mount
  • 14 to 10 AWG wire terminal
