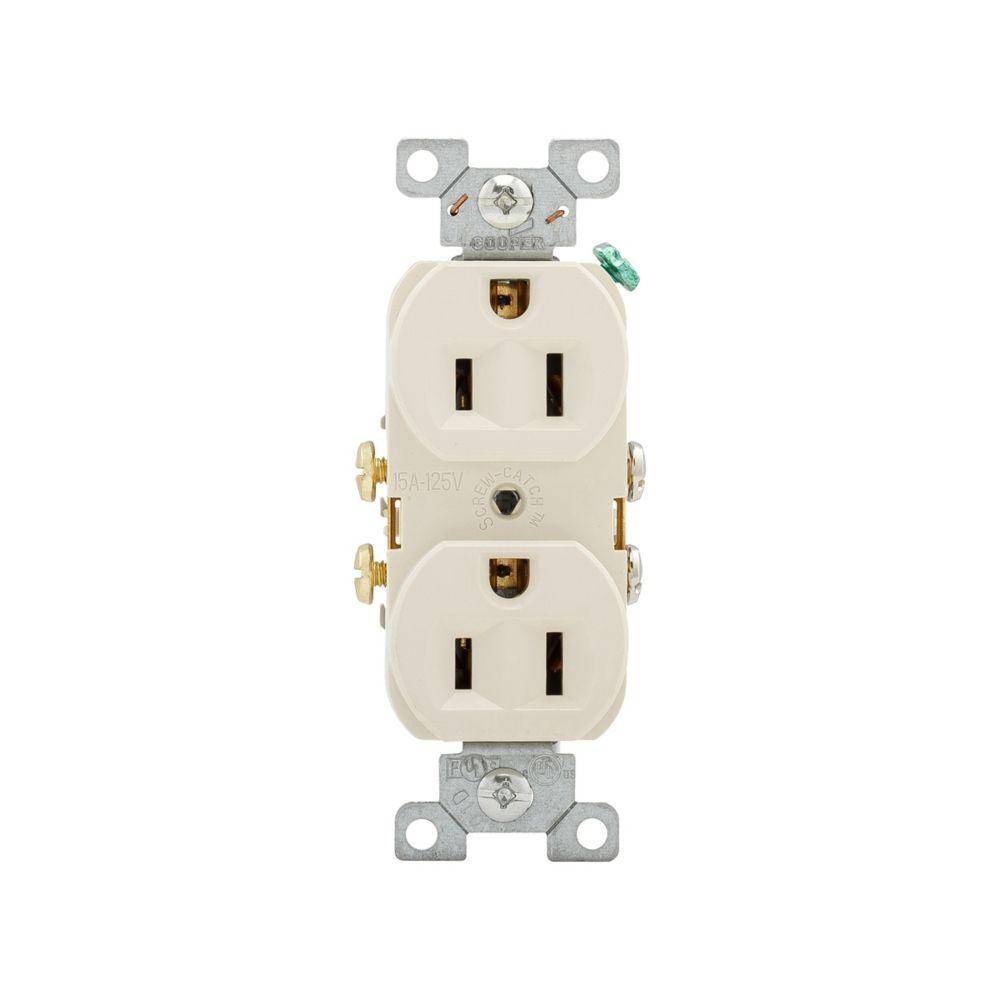

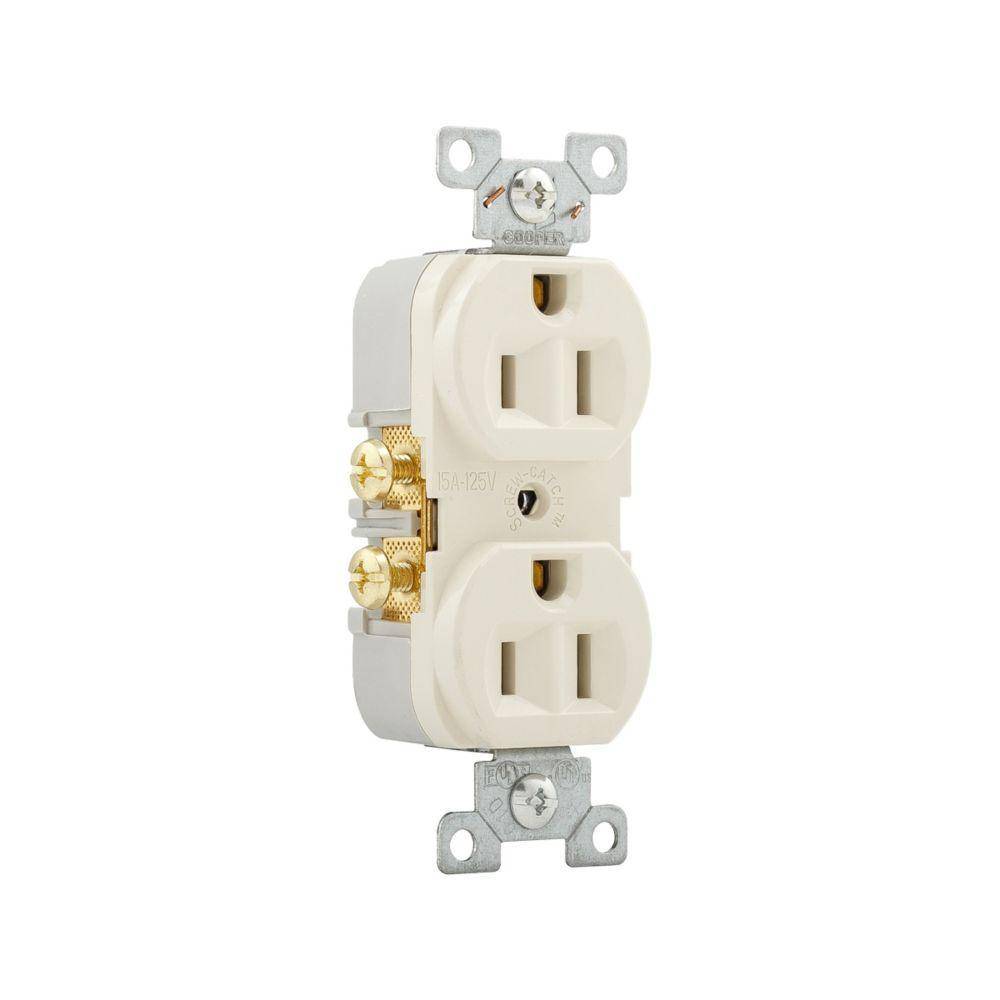

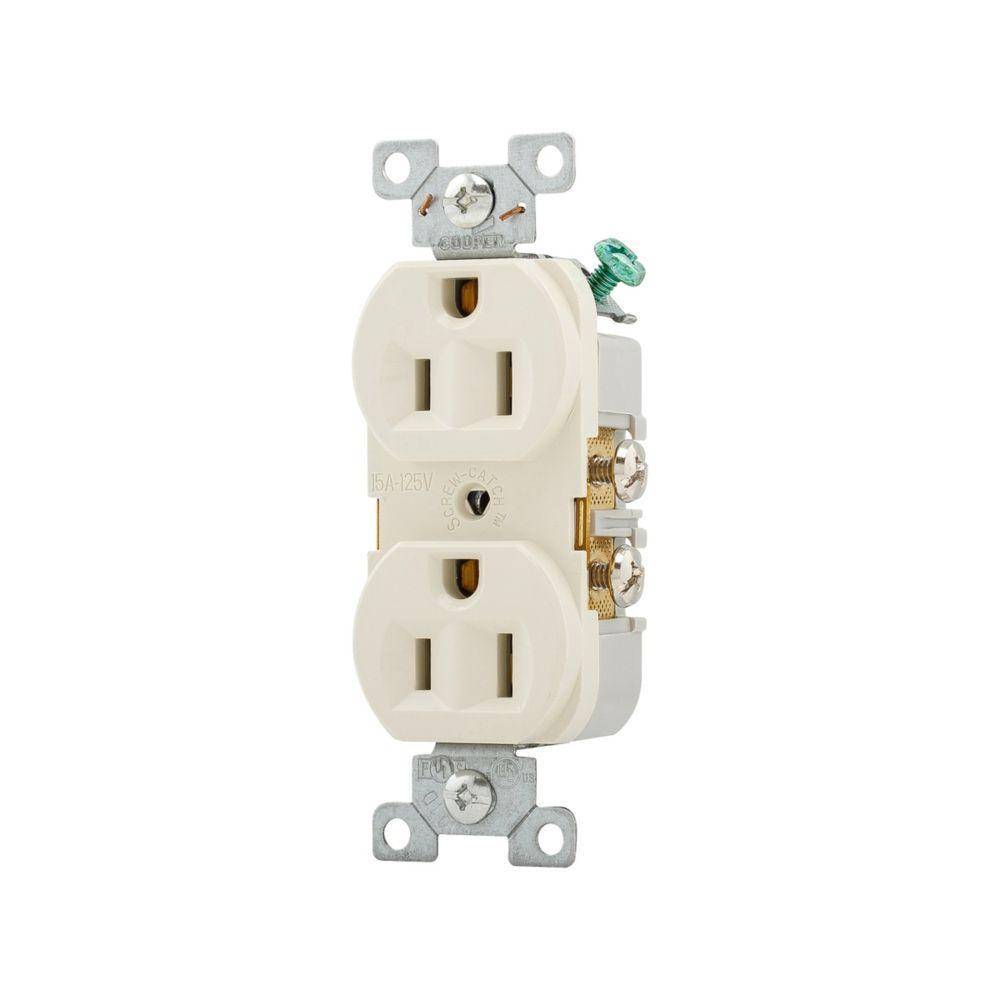

EATON Arrow Hart™ Eaton Wiring Devices CR15LA CR15 Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond

Short Description

Commercial specification grade straight blade receptacles - 15 A, 125 VAC, NEMA 5-15R. engineered for safe, reliable performance, these UL 498 and Federal Specification W-C-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper-Resistant, Series: CR15, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon/PVC, Light Almond, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
MFG #: CR15LA

EECO #: HUCR15LA

Brand: Eaton
UPC #: 032664583155
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39121406
Material
Nylon/PVC
Application
Non-Residential Applications
Terminal Type
Side Wire/Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-4 to 158
Type
Duplex Tamper-Resistant
Grade
Commercial
Series
CR15
Dimensions
4.19 in H x 1.3 in W x 0.82 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC receptacles installed in dwelling units must be tamper-resistant
  • Nylon face, PVC base
  • 14 to 10 AWG wire terminal
