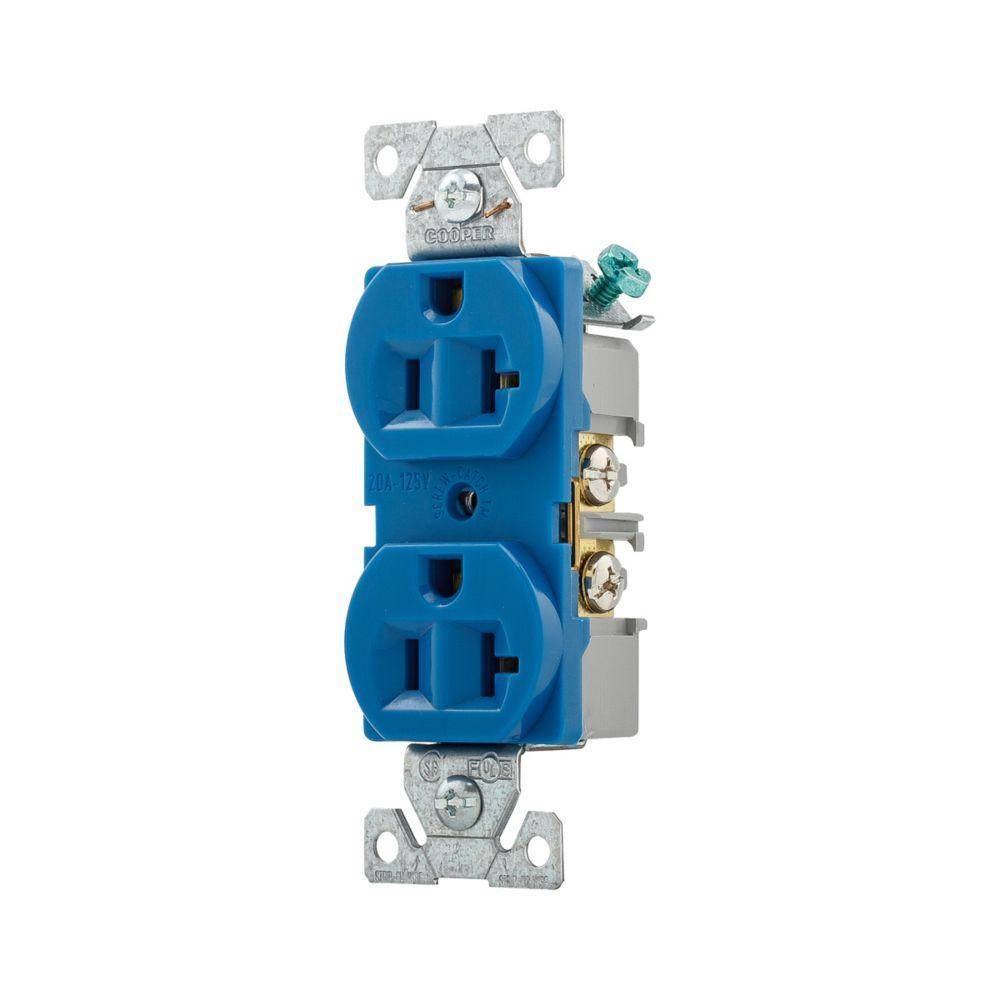

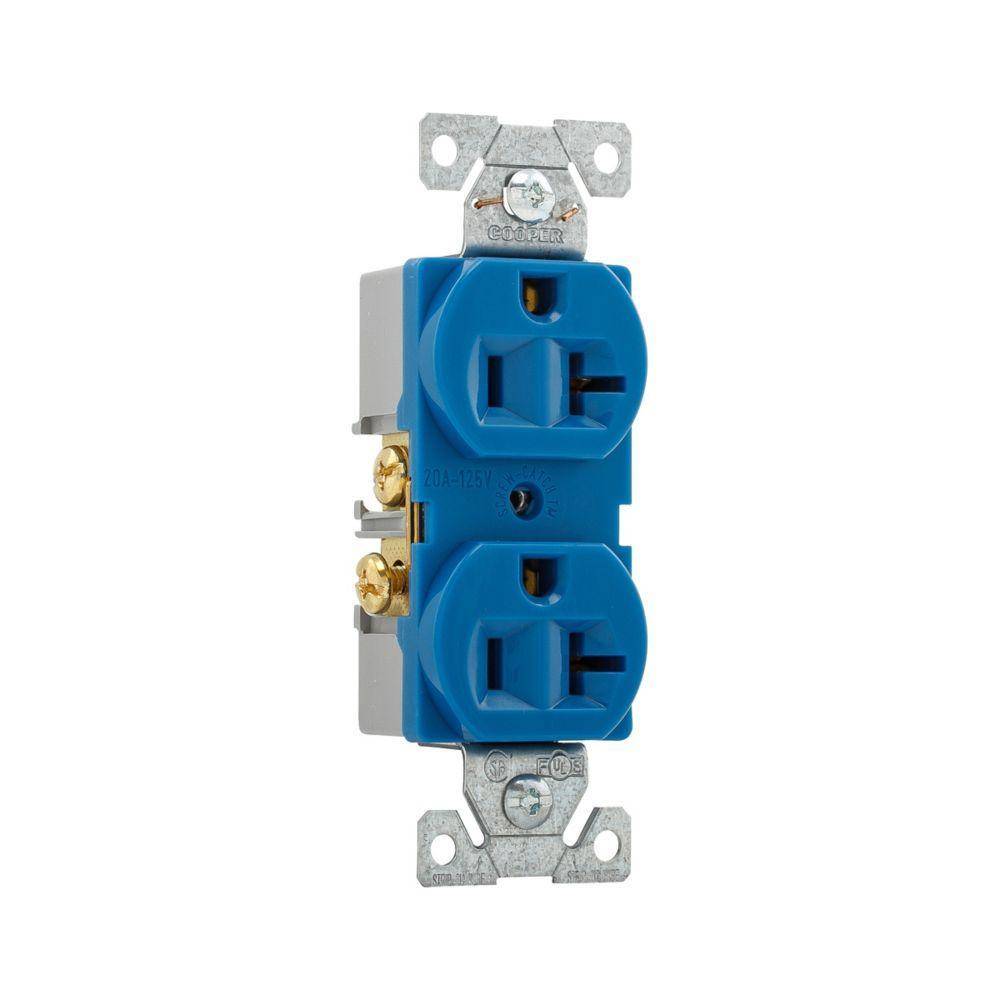

EATON Arrow Hart® 5362BL 5362 Duplex Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue

Short Description

Construction specification grade straight blade receptacles 20 A 125 VAC, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and federal specification WC596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding, Series: 5362, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction Grade, -4 to 158 deg F, Back/Side Wire Terminal, Nylon, Blue, 4.19 in L x 1.3 in W x 0.84 in D Dimensions
MFG #: 5362BL

EECO #: HU5362BL

Brand: Eaton
UPC #: 032664725784
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
UNSPSC
39121406
Material
Nylon
Application
Indoor Applications
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-4 to 158
Type
Duplex Grounding
Grade
Construction
Series
5362
Dimensions
4.19 in L x 1.3 in W x 0.84 in D
Horsepower
1
Amperage Rating
20
Features
  • High impact and chemical resistant nylon face maintains receptacle integrity
  • Convenient built-in 10 AWG and 12 AWG wire strippers for easy wiring
  • All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
  • Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
