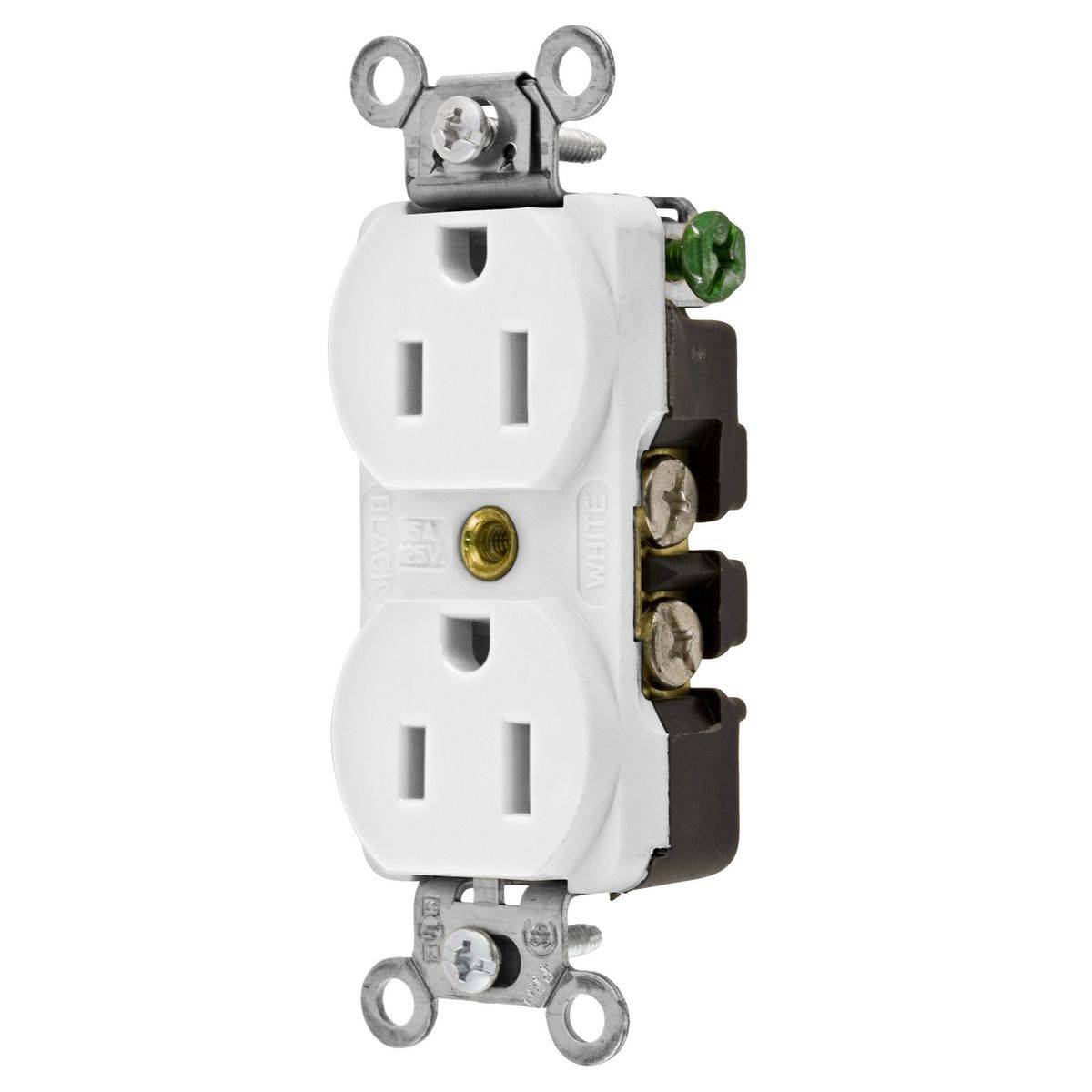

EATON Arrow Hart 5252W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Industrial Specification Grade Straight Blade Receptacles - 15A-125V, NEMA 5-15R. Designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification WC-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.

EATON Arrow Hart Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, Back/Side Wire Terminal, Nylon, White
MFG #: 5252W

EECO #: HU5252W

Brand: Eaton
UPC #: 032664387906
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Nylon
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 75
Type
Straight Blade Extra Heavy Duty Compact Smooth Face Half-Controlled
Grade
Industrial
Series
5252
Dimensions
1.328 in W x 1.047 in D
Amperage Rating
15
Features
  • Exclusive 5-leaf solid brass line contacts ensure lowest heat rise, smooth plug blade insertion, long-term retention
  • 0.030 in (0.76 mm) solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability-assures superior ground integrity under heaviest use
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • Unique screw terminal guards provide fast, easy insulation from conductive surfaces
  • High impact and chemical resistant nylon face
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • All terminal (H-N-G) and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
  • Long, broad mounting strap helps reach large panel cutouts for Code Compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
  • Screw-Catch feature on device speeds mounting of wallplates
  • Wall mounting
  • Glass filled nylon base
  • Screw connection
  • 14 - 10 AWG
