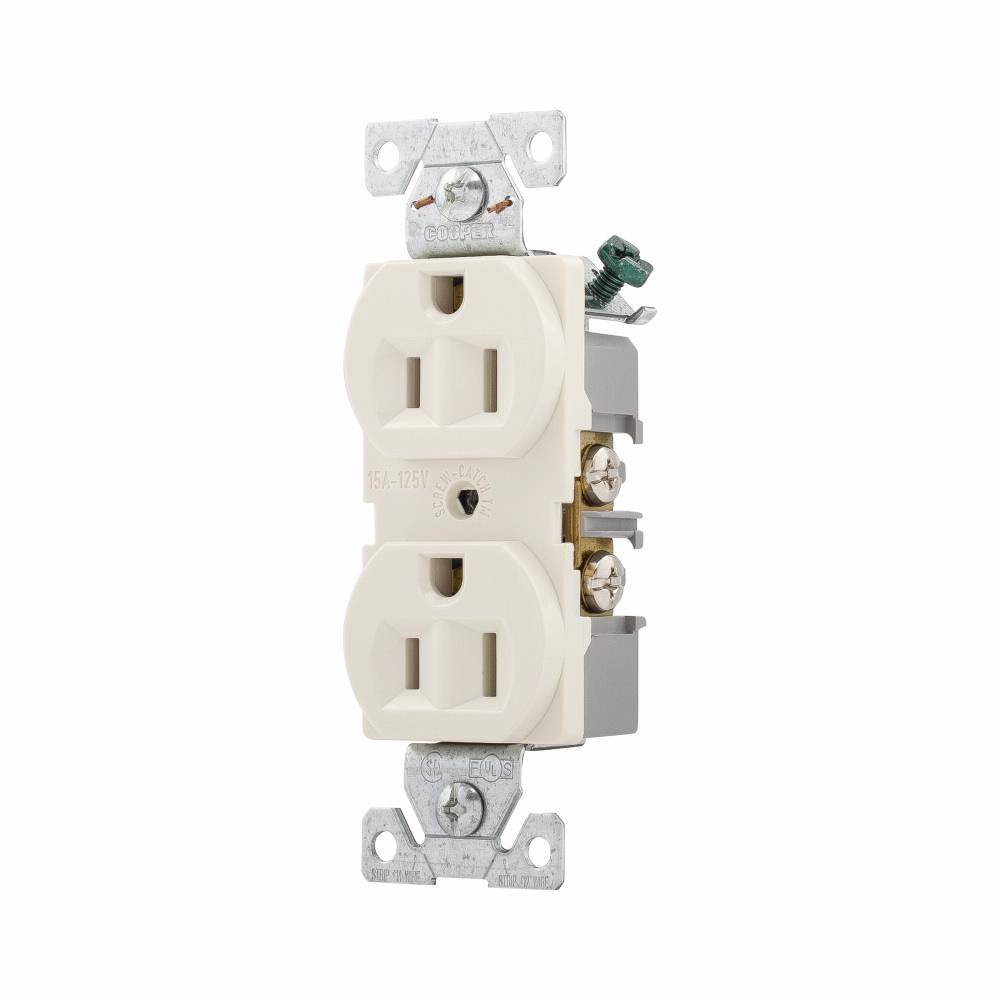

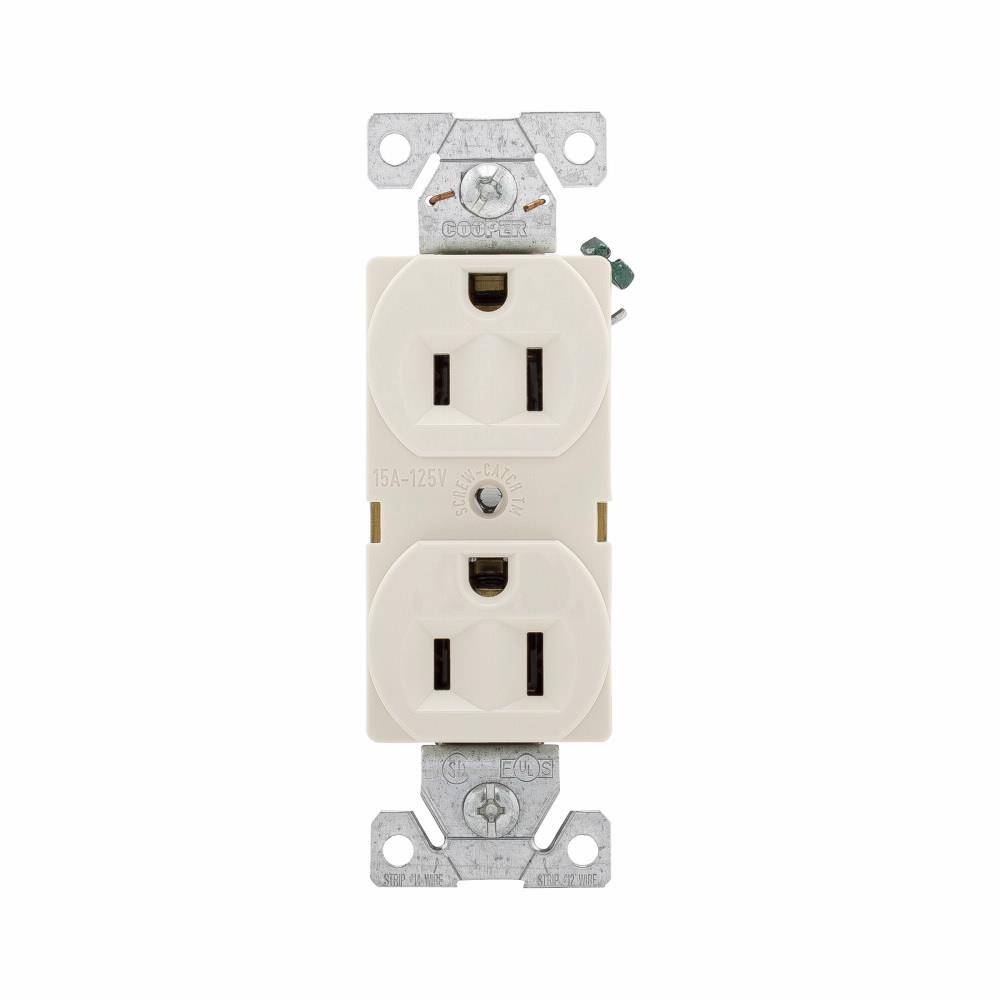

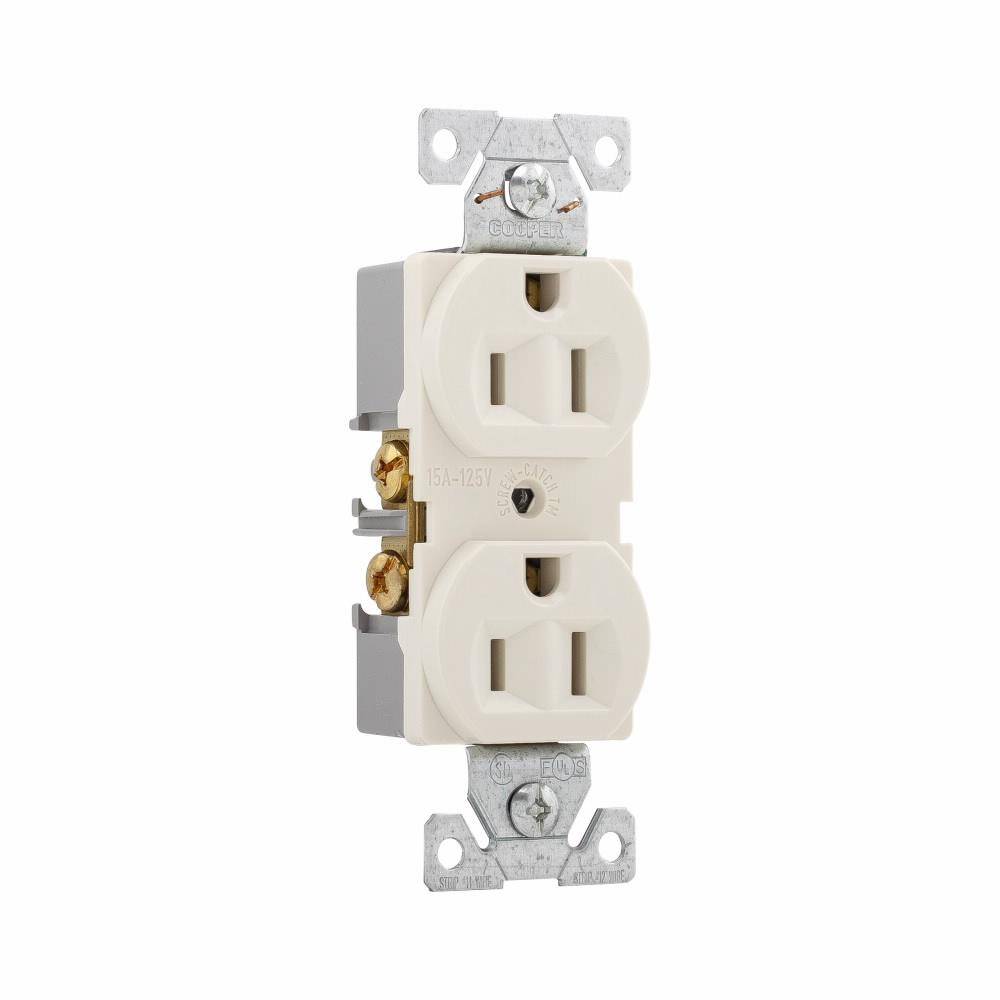

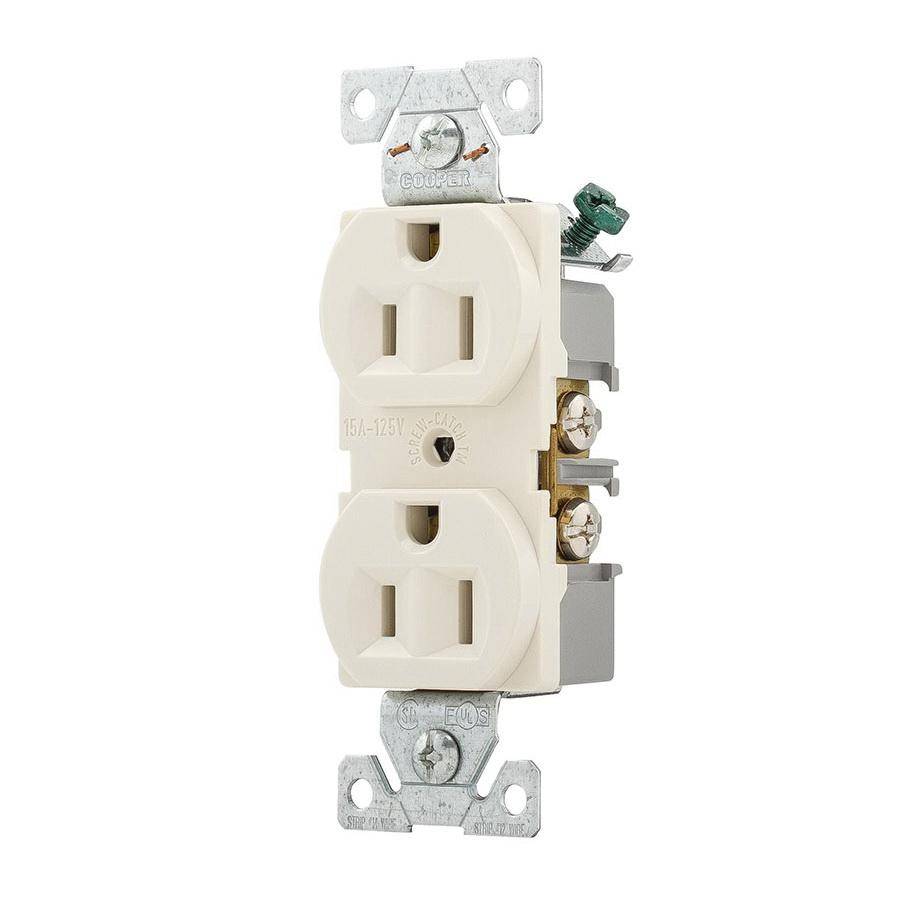

EATON Arrow Hart® 5262LA 5262 Duplex Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Construction specification grade straight blade receptacles - 15 A, 125 VAC, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and federal specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding Standard, Series: 5262, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Construction Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Light Almond, 0.79 x 1.24 x 3.28 x 4 in Dimensions
MFG #: 5262LA

EECO #: HU5262LA

Brand: Eaton
UPC #: 032664704314
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39121406
Material
Glass Filled Nylon
Application
Commercial Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-4 to 158
Type
Duplex Grounding Standard
Grade
Construction
Series
5262
Dimensions
0.79 x 1.24 x 3.28 x 4
Horsepower
1/2
Amperage Rating
15
Features
  • High impact and chemical-resistant nylon face maintains receptacle integrity
  • Convenient built-in 10 and 12 AWG wire strippers
  • All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
  • Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
