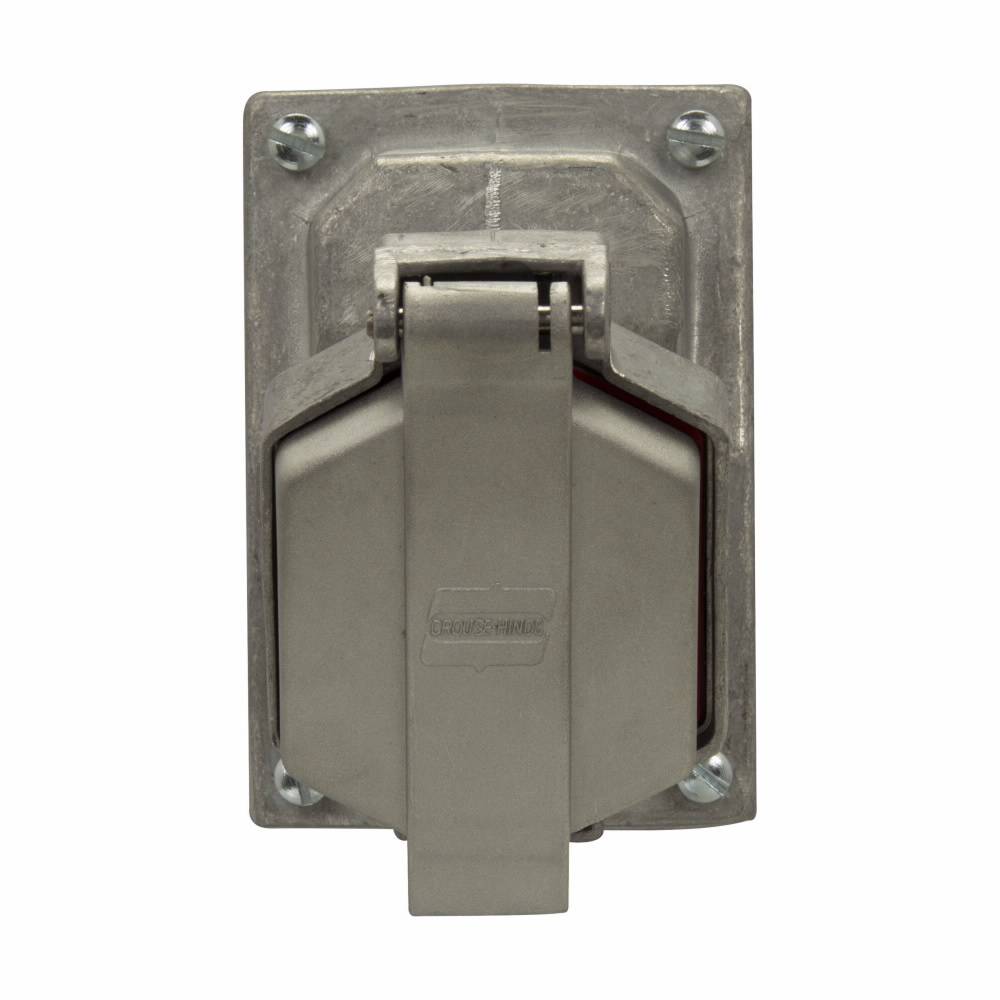

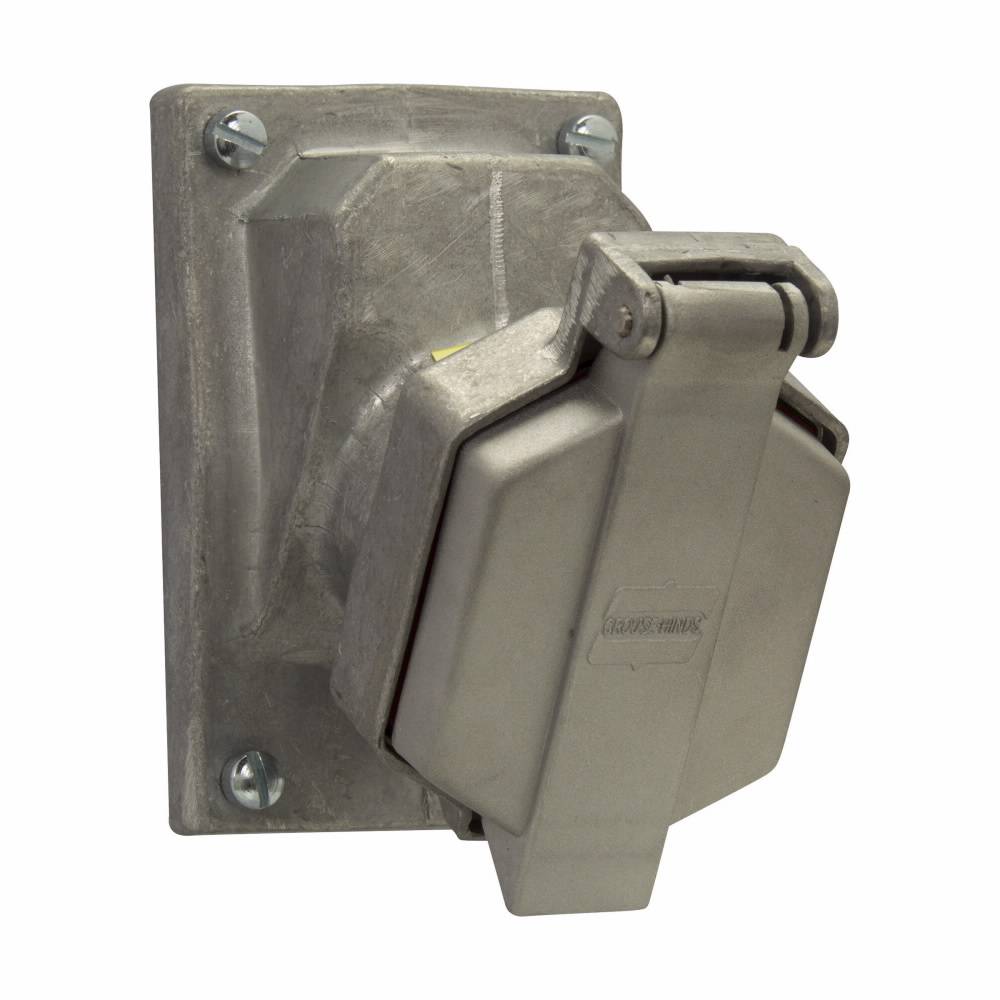

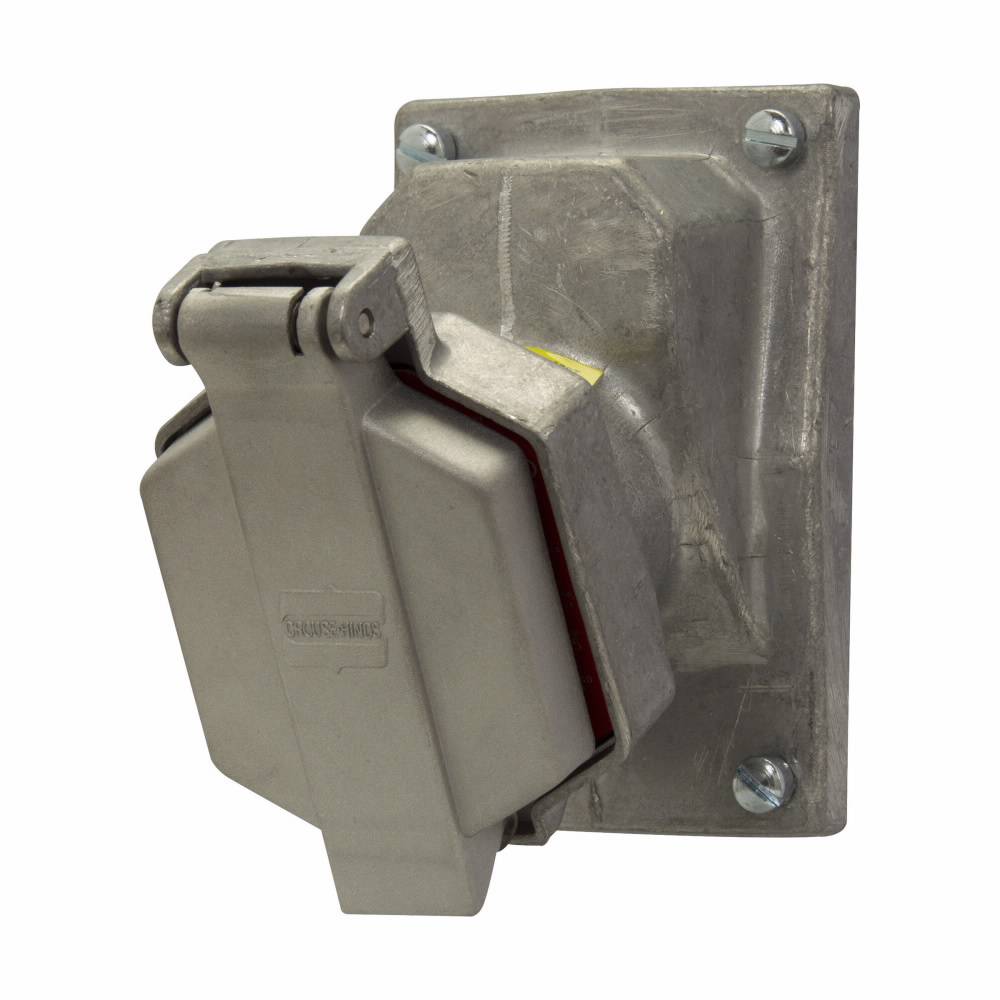

EATON Crouse-Hinds Ark-Gard® ENR5201 Dead End Dust-Ignitionproof Explosionproof Raintight Pin and Sleeve Receptacle Unit, 125 VAC, 20 A, 2 Poles, 3 Wires

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

The value line of ENR receptacles is the ideal solution for rugged and industrial NEMA configured applications up to 20 A. Like the premier line, this product comes equipped with built-in safety features that reject standard NEMA configuration plugs that could cause an arc in hazardous areas.

EATON Crouse-Hinds Ark-Gard® Pin and Sleeve Receptacle Unit, Dead End Dust-Ignitionproof Explosionproof Raintight, Series: ENR Value, 125 VAC, 20 A, 50 to 400 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, NEMA 3/7B/7C/7D/9F/9G/12 Enclosure, Saddle Clamp Terminal, Copper-Free Aluminum, 8 in L x 6-23/32 in H Dimensions

MFG #: ENR5201

EECO #: APENR5201

Brand: Crouse-Hinds
UPC #: 782274310954
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121406
Used On
Explosionproof Pin and Sleeve Receptacle
Material
Copper-Free Aluminum
Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Units, Welders, Pumps, Compressors, Heating and Cooling Units, Cellular Relay Stations, Conveyors, Lighting Systems and Similar Equipment Applications
Terminal Type
Saddle Clamp
Voltage Rating
125
Number of Wires
3
Frequency Rating
50 to 400
Enclosure
NEMA 3/7B/7C/7D/9F/9G/12
Type
Dead End Dust-Ignitionproof Explosionproof Raintight
Series
ENR Value
Warranty
Limited
Dimensions
8 in L x 6-23/32 in H
Amperage Rating
20
Features
  • To make connection, simply insert the ENP plug and rotate to close the circuit
  • Built-in features cause the ENP plug to become locked in the receptacle and cannot be accidentally disengaged while in use
  • Top hinged cover design with 45 deg downward angle provides superior protection in damp, wet and dirty locations
  • Molded in contact design provides for superior interior contact reliability
  • Incorporates three spring loaded slide keys that prevent the receptacle face plate from being rotated until the ENP plug us fully inserted into the receptacle
  • Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints
  • These threads are specially coated to guarantee freedom of movement, which ensures ON/OFF action, no additional seals are required
  • Field assembly is accomplished with standard tools
