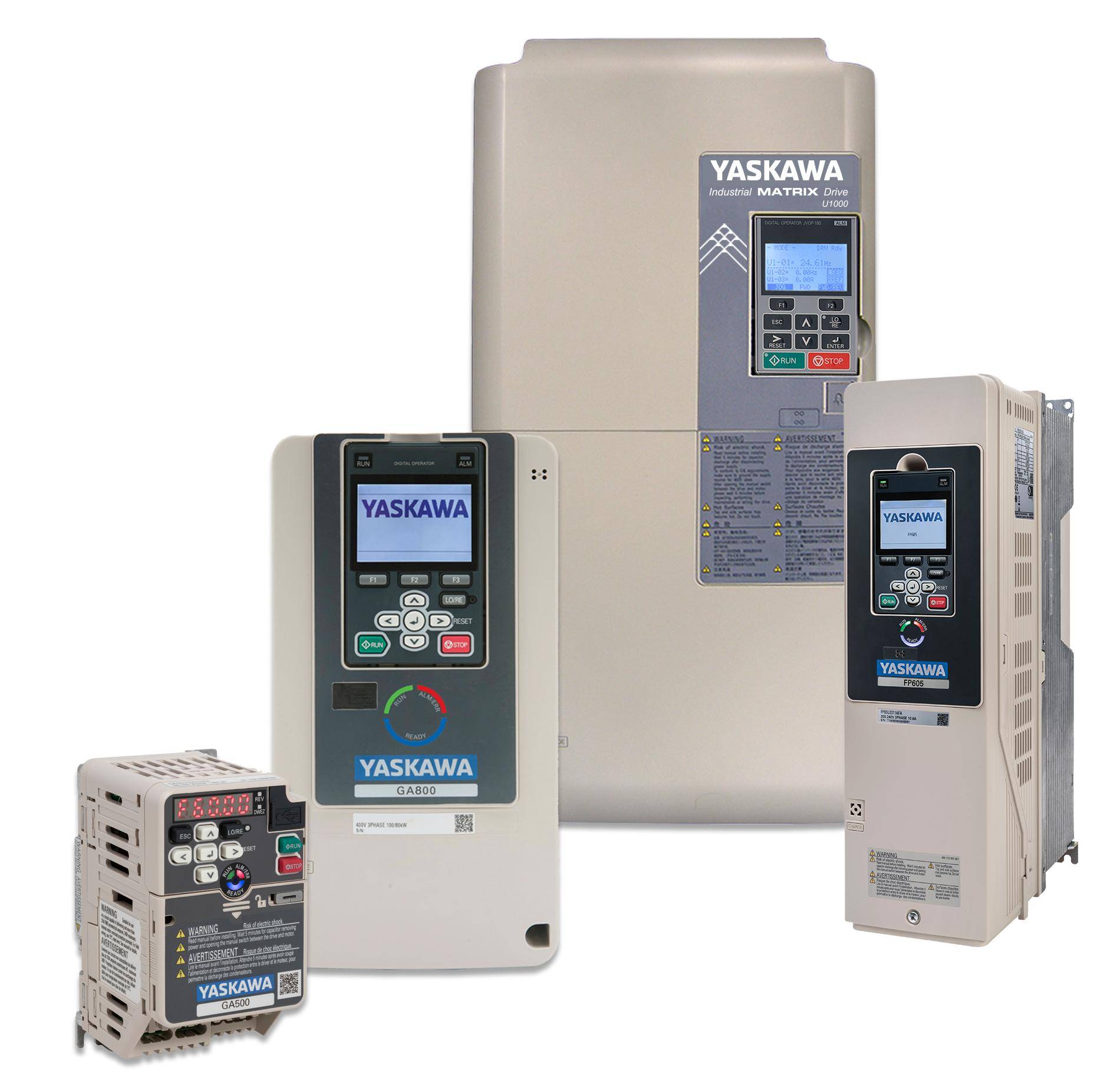

Yaskawa GA80U4031ABM GA800 AC Drive, 240 VAC, 31 A, 20 hp, 7.09 in W 7.95 in D

Short Description

380 to 480 VAC 50/60 Hz 3-Phase, 513 to 679 VDC Input, 31 A Normal Duty/24 A Heavy Duty Output, 20 HP Normal Duty/15 HP Heavy Duty, IP20, Frame 2, Variable Speed AC Drive

Yaskawa, GA80U4031ABM, AC Drive, Series: GA800, 240 VAC, 31 A, 20 hp, 7.09 in Width, 7.95 in Depth, 11.81 in Height, IP20 Enclosure
MFG #: GA80U4031ABM

EECO #: YAGA80U4031ABM

Brand: Yaskawa
product family Part of 1 Product Family.
◢
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122000
Approval
UL, CSA, CE, RCM
Drive Type
Variable Speed
Frame Size
2
Application
Solution for low harmonics
Enclosure Type
IP20
Voltage Rating
240
Enclosure
IP20
Size
7.09 Inch Width x 7.95 Inch Depth x 11.81 Inch Height
Type
AC
Depth
7.95
Width
7.09
Height
11.81
Series
GA800
Horsepower
20
Input Current
31 Amp (Normal Duty), 24 Amp (Heavy Duty)
Input Voltage
380 to 480 Volt AC 50/60 Hertz 3-Phase, 513 to 679 Volt DC
Output Voltage
380 to 480 Volt AC 0.01 to 400 Hertz 3-Phase
Amperage Rating
31
Constant Torque HP
20 HP (Normal Duty), 15 HP (Heavy Duty)
Constant Torque KW
15 Kilowatt (Normal Duty), 11 Kilowatt (Heavy Duty)
Features
  • High resolution multi-language display with Setup Wizards and Data-Logging
  • Bluetooth and DriveWizardMobile for convenient and easy interaction
  • Programming without main power through embedded USB port
  • DriveWizard Desktop for comprehensive configuration and monitoring
  • DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller
  • Closed or open loop vector control for outstanding regulation and torque production
  • Fast acting motor control functions provide near tripless operation
  • Popular network connections provide robust control and monitoring with system controllers
  • Embedded Auxiliary Control Power Input (24V) maximizes production time and efficiency by maintaining network communication while main power is removed
  • Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3)
  • Integrated DC Reactor (40HP and larger) improves power quality and compatibility
  • Integrated 12 Pulse version provides a cost effective solution for low harmonics
  • Integrated Brake Transistor (up to 125HP ND) for cost effective heavy braking
  • Standard conformal coating helps resist contamination
  • Flange version provides IP55/UL Type12 backside integrity when mounting with heatsink external
Yaskawa_GA80U4140ABM_RoHS
Yaskawa_GA80U4140ABM_Specification_Sheet
Yaskawa_GA80U4140ABM_User_Manual
Qty Unit price
Ea
1 $1,279.25

Slqt
1 $1,279.25

Stpk
1 $1,279.25

Unit
1 $1,279.25
