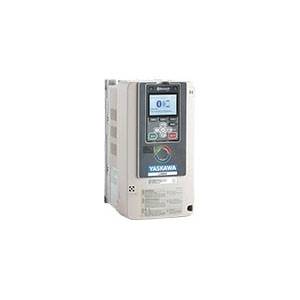

Yaskawa America, Inc. GA80U4012ABM Variable Speed AC Drive
Share Share Print Print
Yaskawa

Yaskawa America, Inc. GA80U4012ABM Variable Speed AC Drive

Short Description

380 to 480 VAC 50/60 Hz 3-Phase, 513 to 679 VDC Input, 11.9 A Normal Duty/9.2 A Heavy Duty Output, 7.5 HP Normal Duty/5 HP Heavy Duty, IP20, Frame 1.5, Variable Speed AC Drive

Variable Speed AC Drive; Type AC; Drive Type Variable Speed; Input Voltage 380 to 480 Volt AC 50/60 Hertz 3-Phase, 513 to 679 Volt DC; Input Current 11.9 Amp (Normal Duty), 9.2 Amp (Heavy Duty); Output Voltage 380 to 480 Volt AC 0.01 to 400 Hertz 3-Phase; Constant Torque HP 7.5 HP (Normal Duty), 5 HP (Heavy Duty); Constant Torque KW 5.5 Kilowatt (Normal Duty), 3.7 Kilowatt (Heavy Duty); Enclosure IP20; Frame Size 1.5; Size 5.51 Inch Width x 8.31 Inch Depth x 10.24 Inch Height; Approval UL, CSA, CE, RCM; RoHS Compliant; Output Current 11.9 Amp (Normal Duty), 9.2 Amp (Heavy Duty); Output Frequency Resolution 0.001 Hertz; Temperature Rating 14 to 122 Deg F (Ambient), -4 to 158 Deg F (Storage); Humidity 95 Percent RH; Altitude 1000 Meter; Excludes Built-In EMC Filter; Application Industrial, Indoor

MFG #: GA80U4012ABM

EECO #: YAGA80U4012ABM

Brand: Yaskawa
product family Part of 1 Product Family.
◢
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122000
Approval
UL, CSA, CE, RCM
Drive Type
Variable Speed
Frame Size
1.5
Enclosure
IP20
Size
5.51 Inch Width x 8.31 Inch Depth x 10.24 Inch Height
Type
AC
Input Current
11.9 Amp (Normal Duty), 9.2 Amp (Heavy Duty)
Input Voltage
380 to 480 Volt AC 50/60 Hertz 3-Phase, 513 to 679 Volt DC
Output Voltage
380 to 480 Volt AC 0.01 to 400 Hertz 3-Phase
Constant Torque HP
7.5 HP (Normal Duty), 5 HP (Heavy Duty)
Constant Torque KW
5.5 Kilowatt (Normal Duty), 3.7 Kilowatt (Heavy Duty)
Features
  • High Resolution Multi-Language Display with Startup Wizards and Data-Logging
  • Bluetooth and Drivewizard Mobile for Convenient and Easy Interaction
  • Drivewizard Desktop for Comprehensive Configuration and Monitoring
  • DriveWorksEZ® (Embedded Function Blocks) Provides Extra Flexibility, Otherwise Accomplished In a Separate Controller
  • Closed Or Open Loop Vector Control for Outstanding Regulation and Torque Production
  • Fast Acting Motor Control Functions Provide Near Tripless Operation
  • Popular Network Connections Provide Robust Control and Monitoring with System Controllers
  • Embedded Auxiliary Control Power Input (24 V) Maximizes Production Time and Efficiency by Maintaining Network Communication While Main Power is Removed
  • Embedded Safe Torque Off Minimizes Downtime for Applications Requiring Occasional Intervention
  • Integrated Dc Reactor (30 Hp and Larger) Improves Power Quality and Compatibility
  • Integrated 12 Pulse Version Provides a Cost Effective Solution for Low Harmonics
  • Integrated Brake Transistor (Up to 125 Hp Nd) for Cost Effective Heavy Braking
  • Standard Conformal Coating and Type 12 Versions Help Resist Contamination
  • Resistant to Dust/Humidity
  • RoHS Compliant
