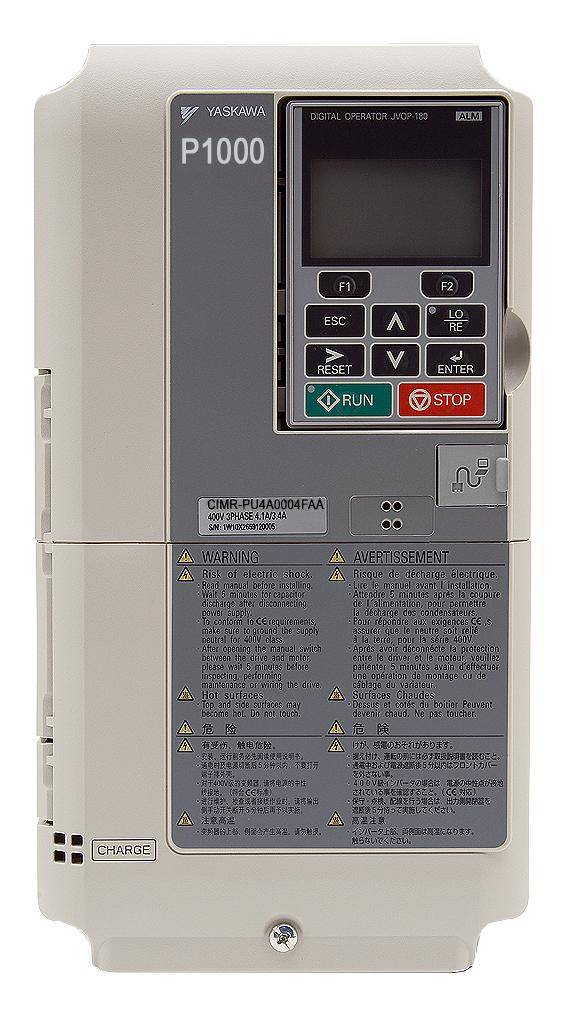

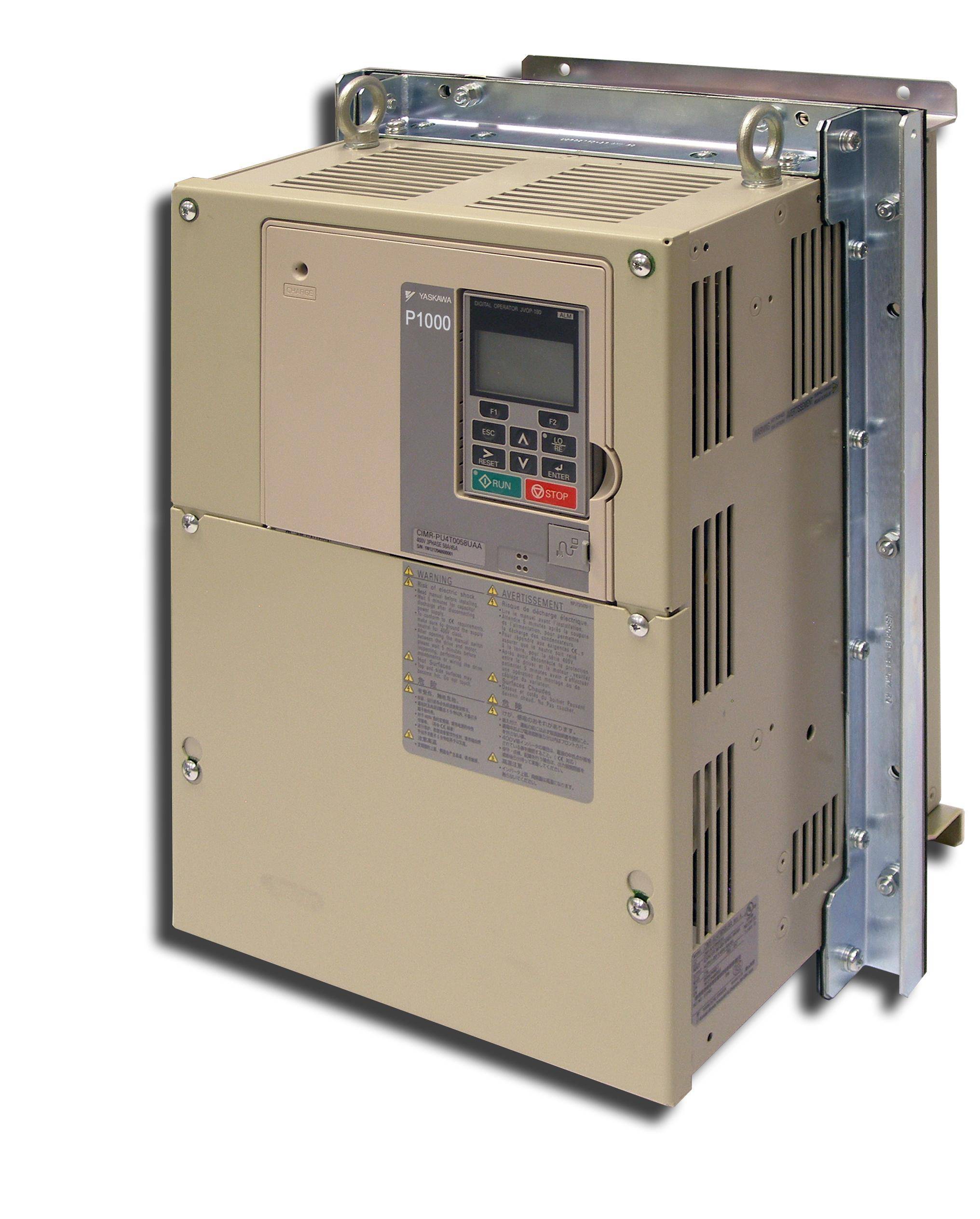

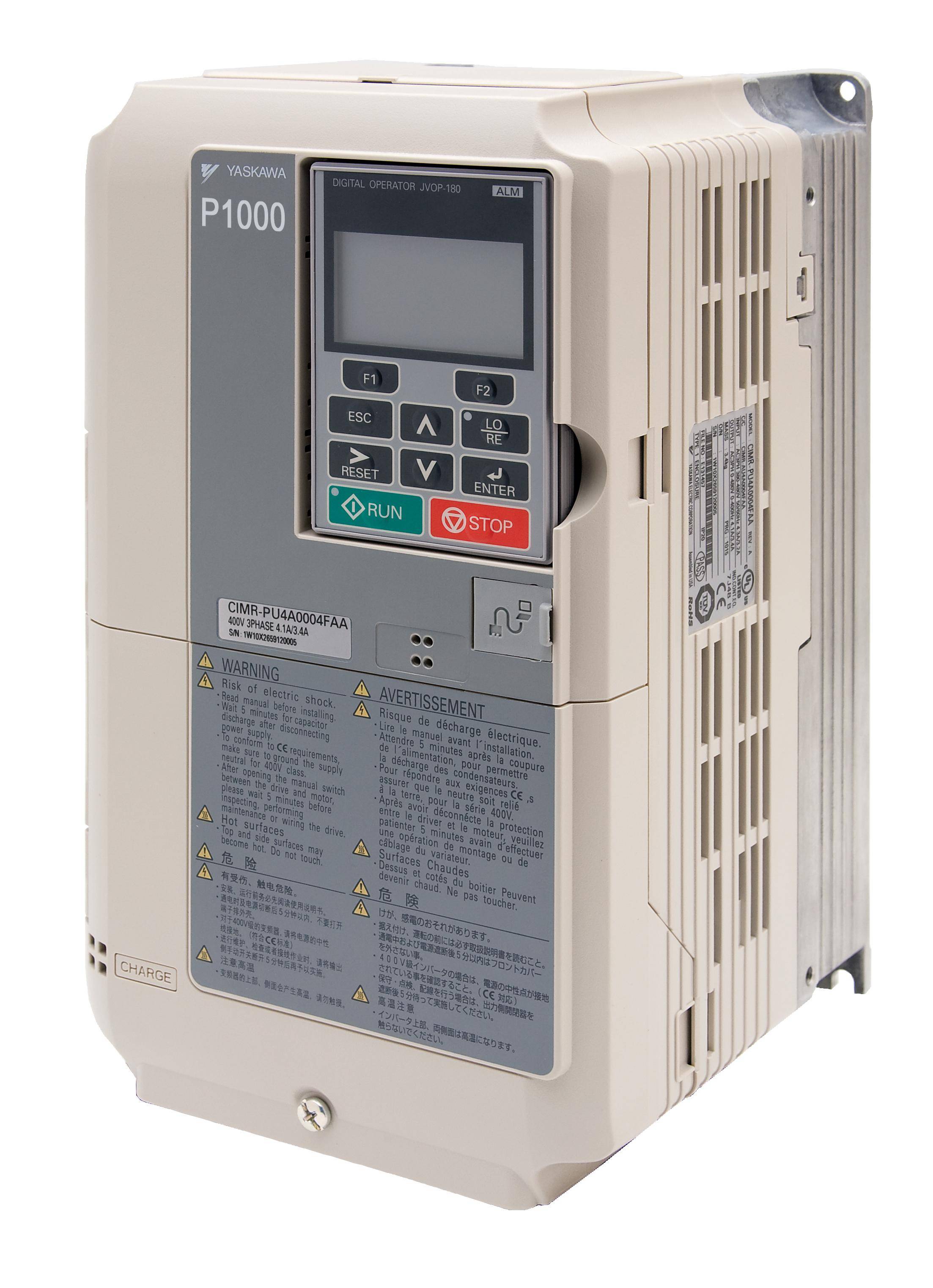

Yaskawa CIMR-PU4A0072FAA P1000 AC Drive, 380 to 480 VAC, 72 A, 50 hp, 10.98 in W 10.16 in D

Short Description

200 to 240 VAC 3-Phase, 270 to 340 VDC, 72 A, 50 HP Variable Torque, NEMA 1/IP20, 8B Frame, Adjustable Frequency, Variable Speed Industrial AC Drive

Yaskawa, CIMR-PU4A0072FAA, AC Drive, Series: P1000, 380 to 480 VAC, 72 A, 50 hp, 10.98 in Width, 10.16 in Depth, 20.28 in Height, IP20/NEMA 1 Enclosure
MFG #: CIMR-PU4A0072FAA

EECO #: YACIMRPU4A0072FAA

Brand: Yaskawa
product family Part of 1 Product Family.
◢
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122000
Approval
UL, CSA, CE, C-Tick
Drive Type
Adjustable Frequency
Frame Size
8B
Application
Great choice for industrial fans and pumps
Enclosure Type
IP20/NEMA 1
Voltage Rating
380 to 480
Enclosure
NEMA 1, IP20
Size

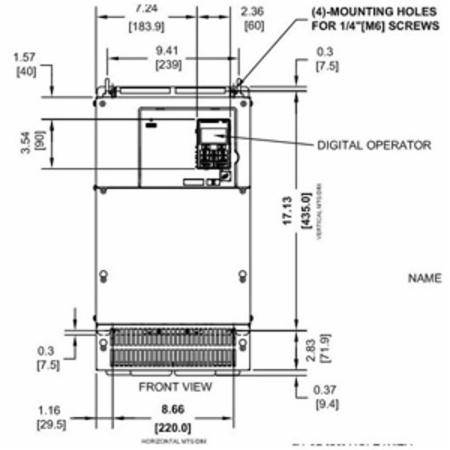

10.98 Inch Width x 10.16 Inch Depth x 20.28 Inch Height
Type
AC
Depth
10.16
Width
10.98
Height
20.28
Series

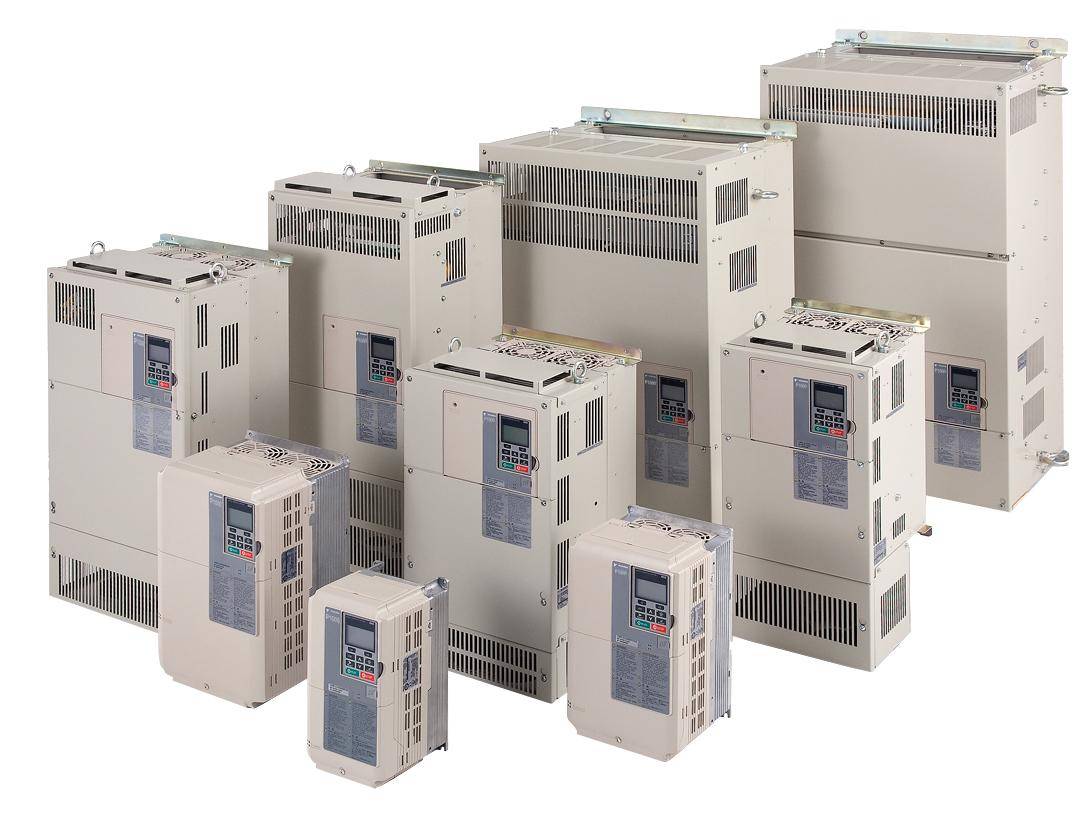

P1000
Horsepower
50
Input Current
71 Amp
Input Voltage
200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC
Output Voltage
380 to 480 Volt AC at 0.01 to 400 Hertz 3-Phase
Amperage Rating
72
Variable Torque HP
50 HP
Variable Torque Current
72 Amp
Features
  • 5-line, 16-character alpha-numeric display with time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls
  • Choose from pre-configured fan and pump setup macros to match the application for quick and easy set up
  • Allows for easy configuration of keypad display to match process and feedback devices such as PSI, GPM, Feet
  • Monitors load and will shut system down in the event of a fan belt or pump shaft breakdown
  • Allows for easy replacement of control card without removing control wires, and stores all drive settings without the need for a copy device
  • Maintains a set point for closed loop control of fans and pumps for pressure, flow, or temperature regulation, and eliminates the need for a closed loop output signal from a process controller
  • Independent PI to control an external device in the system
  • Built-in DC reactors (30 HP and larger) provide input harmonics benefit, and protection from input disturbances
  • Integrated 12 Pulse version (480V, 40 HP and larger) provides a cost-effective solution for low harmonics
  • Monitors the load at all times and reduces the output voltage automatically, reducing motor audible noise
  • Industrial CommunicationModbus RTU (built-in)DeviceNetEtherNet/IPModbus TCP/IPPROFIBUS-DPPROFINET
  • Modbus RTU (built-in)
  • DeviceNet
  • EtherNet/IP
  • Modbus TCP/IP
  • Building Automation Networks (BAS)BACnetLonworksMetasys (N2)Apogee (P1)
YASKWA_CIMR_PU4A0072FAA_CAD
YASKWAE00012_4_11_13_15_16_36
YASKWAE00019_1_4
YASKWAE00034_1_2
Yaskawa_CIMR_PU4A0072FAA_Catalog
Yaskawa_CIMR_PU4A0072FAA_Installation_Manual
Yaskawa_CIMR_PU4A0072FAA_Specification_Sheet
