Yaskawa

Yaskawa America Inc. CIMR-PU4A0058FAA Variable Speed Industrial AC Drive

Short Description

200 to 240 VAC 3-Phase, 270 to 340 VDC, 58 A, 40 HP Variable Torque, NEMA 1/IP20, 7B Frame, Adjustable Frequency, Variable Speed Industrial AC Drive

Variable Speed Industrial AC Drive; Type AC; Drive Type Adjustable Frequency; Input Voltage 200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC; Input Current 58 Amp; Output Voltage 380 to 480 Volt AC at 0.01 to 400 Hertz 3-Phase; Variable Torque HP 40 HP; Variable Torque Current 58 Amp; Enclosure NEMA 1, IP20; Frame Size 7B; Size 10 Inch Width x 10.16 Inch Depth x 18.31 Inch Height; Approval UL, CSA, CE, C-Tick; RoHS Compliant; Application Fan, Pump

MFG #: CIMR-PU4A0058FAA

EECO #: YACIMRPU4A0058FAA

Brand: Yaskawa
product family Part of 1 Product Family.
◢
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122000
Approval
UL, CSA, CE, C-Tick
Drive Type
Adjustable Frequency
Frame Size
7B
Enclosure
NEMA 1, IP20
Size
10 Inch Width x 10.16 Inch Depth x 18.31 Inch Height
Type
AC
Input Current
58 Amp
Input Voltage
200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC
Output Voltage
380 to 480 Volt AC at 0.01 to 400 Hertz 3-Phase
Variable Torque HP
40 HP
Variable Torque Current
58 Amp
Features
  • LCD Operator with Real Time Clock
  • 5-Line, 16-Character Alpha-Numeric Display with Time and Date Stamping for Events, Along with Timer Controls for Starting, Stopping and Speed Changes without the Need for External Controls
  • Choose from Pre-Configured Fan and Pump Setup Macros to Match the Application for Quick and Easy Set Up
  • Allows for Easy Configuration of Keypad Display to Match Process and Feedback Devices such as PSI, GPM, Feet
  • Monitors Load and will Shut System Down in the Event of a Fan Belt or Pump Shaft Breakdown
  • Allows for Easy Replacement of Control Card without Removing Control Wires and Stores All Drive Settings without the Need for a Copy Device
  • Maintains a Set Point for Closed Loop Control of Fans and Pumps for Pressure, Flow or Temperature Regulation and Eliminates the Need for a Closed Loop Output Signal from a Process Controller, Independent PI to Control an External Device in the System
  • Monitors the Load at All Times and Reduces the Output Voltage Automatically, Reducing Motor Audible Noise
  • RoHS Compliant
  • Made in USA

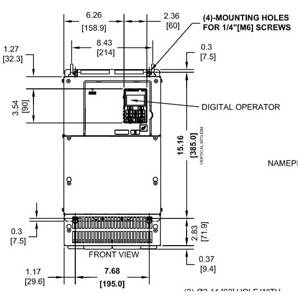

YASKWA_CIMR_PU4A0058FAA_CAD
YASKWAE00012_4_11_13_15_16_36
YASKWAE00019_1_4
YASKWAE00034_1_2
