Yaskawa CIMR-PU4A0031FAA P1000 AC Drive, 380 to 480 VAC, 31 A, 20 hp, 7.09 in W 6.57 in D

Name: Yaskawa CIMR-PU4A0031FAA P1000 AC Drive, 380 to 480 VAC, 31 A, 20 hp, 7.09 in W 6.57 in D
Brand: Yaskawa
SKU: YACIMRPU4A0031FAA
Price: 939.55 USD
Availability: InStock

Short Description

200 to 240 VAC 3-Phase, 270 to 340 VDC, 31 A, 20 HP Variable Torque, NEMA 1/IP20, 4 Frame, Adjustable Frequency, Variable Speed Industrial AC Drive

Yaskawa, CIMR-PU4A0031FAA, AC Drive, Series: P1000, 380 to 480 VAC, 31 A, 20 hp, 7.09 in Width, 6.57 in Depth, 13.39 in Height, IP20/NEMA 1 Enclosure

MFG #: CIMR-PU4A0031FAA

EECO #: YACIMRPU4A0031FAA YACIMRPU4A0031FAA

Brand: Yaskawa

Part of 1 Product Family.

◢

Yaskawa P1000 Drive

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39122000

Approval

UL, CSA, CE, C-Tick

Drive Type

Adjustable Frequency

Frame Size

Application

Great choice for industrial fans and pumps

Enclosure Type

IP20/NEMA 1

Voltage Rating

380 to 480

Enclosure

NEMA 1, IP20

Size

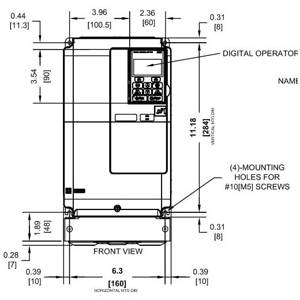

7.09 Inch Width x 6.57 Inch Depth x 13.39 Inch Height

Type

Depth

6.57

Width

7.09

Height

13.39

Series

P1000

Horsepower

Input Current

38 Amp

Input Voltage

200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC

Output Voltage

380 to 480 Volt AC at 0.01 to 400 Hertz 3-Phase

Amperage Rating

Variable Torque HP

20 HP

Variable Torque Current

31 Amp

Features

5-line, 16-character alpha-numeric display with time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls
Choose from pre-configured fan and pump setup macros to match the application for quick and easy set up
Allows for easy configuration of keypad display to match process and feedback devices such as PSI, GPM, Feet
Monitors load and will shut system down in the event of a fan belt or pump shaft breakdown
Allows for easy replacement of control card without removing control wires, and stores all drive settings without the need for a copy device
Maintains a set point for closed loop control of fans and pumps for pressure, flow, or temperature regulation, and eliminates the need for a closed loop output signal from a process controller
Independent PI to control an external device in the system
Built-in DC reactors (30 HP and larger) provide input harmonics benefit, and protection from input disturbances
Integrated 12 Pulse version (480V, 40 HP and larger) provides a cost-effective solution for low harmonics
Monitors the load at all times and reduces the output voltage automatically, reducing motor audible noise
Industrial CommunicationModbus RTU (built-in)DeviceNetEtherNet/IPModbus TCP/IPPROFIBUS-DPPROFINET
Modbus RTU (built-in)
DeviceNet
EtherNet/IP
Modbus TCP/IP
Building Automation Networks (BAS)BACnetLonworksMetasys (N2)Apogee (P1)

YASKWA_CIMR_PU4A0031FAA_CAD

YASKWAE00012_4_11_13_15_16_36

YASKWAE00019_1_4

YASKWAE00034_1_2

Yaskawa_CIMR_PU4A0072FAA_Catalog

Yaskawa_CIMR_PU4A0072FAA_Installation_Manual

Yaskawa_CIMR_PU4A0072FAA_Specification_Sheet
