Yaskawa America Inc. CIMR-PU2A0110FAA Variable Speed Industrial AC Drive

Name: Yaskawa America Inc. CIMR-PU2A0110FAA Variable Speed Industrial AC Drive
Brand: Yaskawa
SKU: YACIMRPU2A0110FAA
Availability: InStock

Short Description

200 to 240 VAC 3-Phase, 270 to 340 VDC, 110 A, 40 HP Variable Torque, NEMA 1/IP20, 7A Frame, Adjustable Frequency, Variable Speed Industrial AC Drive

Variable Speed Industrial AC Drive; Type AC; Drive Type Adjustable Frequency; Input Voltage 200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC; Input Current 111 Amp; Output Voltage 200 to 240 Volt AC at 0.01 to 400 Hertz 3-Phase; Variable Torque HP 40 HP; Variable Torque Current 110 Amp; Enclosure NEMA 1, IP20; Frame Size 7A; Size 10 Inch Width x 10.16 Inch Depth x 21.02 Inch Height; Approval UL, CSA, CE, C-Tick; RoHS Compliant; Application Fan, Pump

MFG #: CIMR-PU2A0110FAA

EECO #: YACIMRPU2A0110FAA YACIMRPU2A0110FAA

Brand: Yaskawa

Part of 1 Product Family.

◢

Yaskawa P1000 Drive

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39122000

Approval

UL, CSA, CE, C-Tick

Drive Type

Adjustable Frequency

Frame Size

Enclosure

NEMA 1, IP20

Size

10 Inch Width x 10.16 Inch Depth x 21.02 Inch Height

Type

Input Current

111 Amp

Input Voltage

200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC

Output Voltage

200 to 240 Volt AC at 0.01 to 400 Hertz 3-Phase

Variable Torque HP

40 HP

Variable Torque Current

110 Amp

Features

LCD Operator with Real Time Clock
5-Line, 16-Character Alpha-Numeric Display with Time and Date Stamping for Events, Along with Timer Controls for Starting, Stopping and Speed Changes without the Need for External Controls
Choose from Pre-Configured Fan and Pump Setup Macros to Match the Application for Quick and Easy Set Up
Allows for Easy Configuration of Keypad Display to Match Process and Feedback Devices such as PSI, GPM, Feet
Monitors Load and will Shut System Down in the Event of a Fan Belt or Pump Shaft Breakdown
Allows for Easy Replacement of Control Card without Removing Control Wires and Stores All Drive Settings without the Need for a Copy Device
Maintains a Set Point for Closed Loop Control of Fans and Pumps for Pressure, Flow or Temperature Regulation and Eliminates the Need for a Closed Loop Output Signal from a Process Controller, Independent PI to Control an External Device in the System
Monitors the Load at All Times and Reduces the Output Voltage Automatically, Reducing Motor Audible Noise
RoHS Compliant
Made in USA

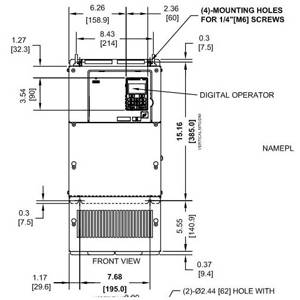

YASKWA_CIMR_PU2A0110FAA_CAD

YASKWAE00012_4_12_15_16_35

YASKWAE00019_1

YASKWAE00034_1_2
