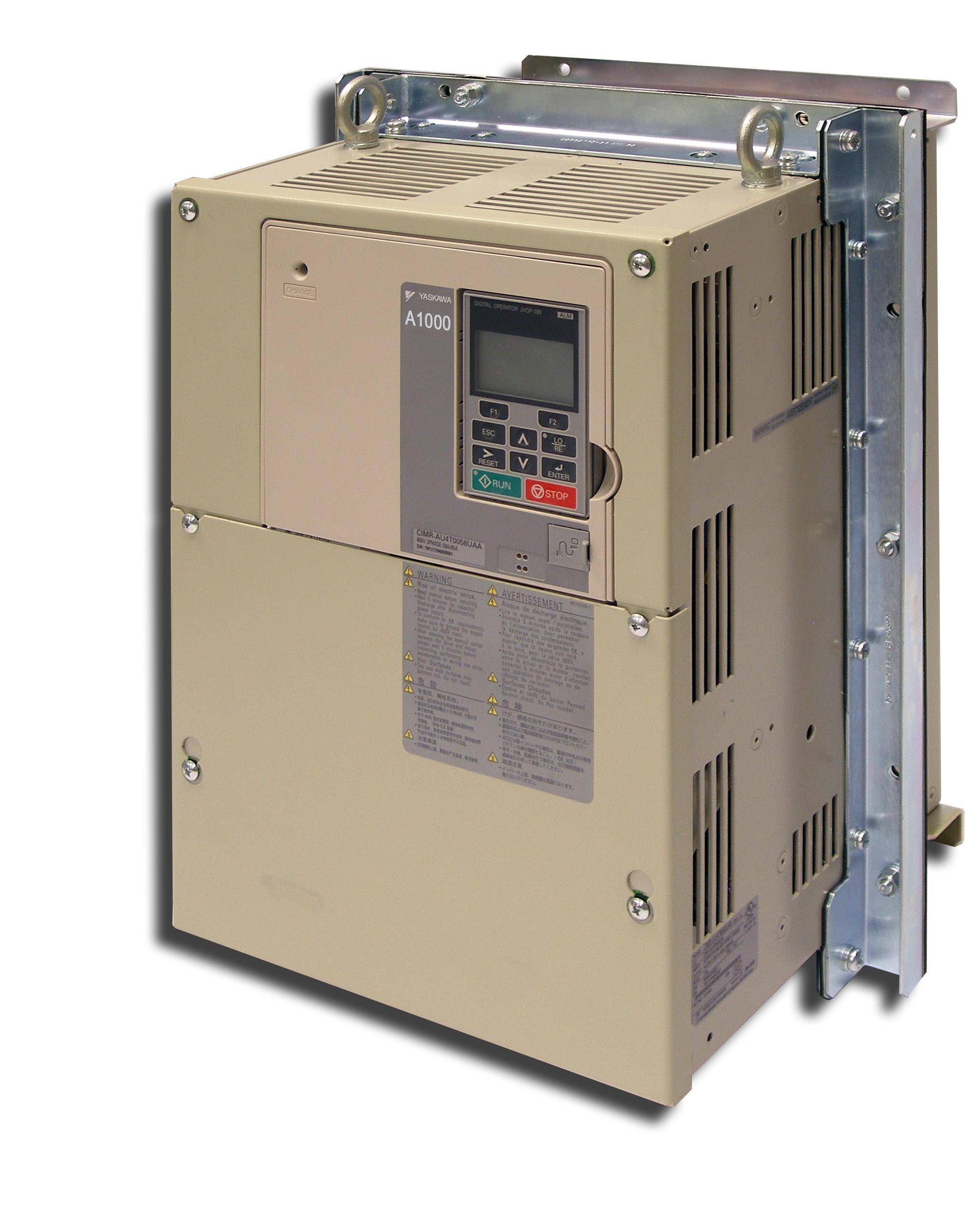

Yaskawa CIMR-AU2A0030FAA A1000 AC Drive, 200 to 240 VAC, 30 A, 10 hp, 5.51 in W 6.57 in D

Short Description

200 to 240 VAC 3-Phase, 270 to 340 VDC, 30 A Normal Duty/25 A Heavy Duty, 10 HP Normal Duty/7.5 HP Heavy Duty Constant Torque, NEMA 1, 3 Frame, Adjustable Frequency, Variable Speed Industrial AC Drive

Yaskawa, CIMR-AU2A0030FAA, AC Drive, Series: A1000, 200 to 240 VAC, 30 A, 10 hp, 5.51 in Width, 6.57 in Depth, 11.81 in Height, IP20/NEMA 1 Enclosure
MFG #: CIMR-AU2A0030FAA

EECO #: YACIMRAU2A0030FAA

Brand: Yaskawa
product family Part of 1 Product Family.
◢
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122000
Approval
UL, CSA, CE, C-Tick
Drive Type
Adjustable Frequency
Frame Size
3
Application
Solution for low harmonics
Enclosure Type
IP20/NEMA 1
Voltage Rating
200 to 240
Enclosure
NEMA 1
Size
5.51 Inch Width x 6.57 Inch Depth x 11.81 Inch Height
Type
AC
Depth
6.57
Width
5.51
Height
11.81
Series
A1000
Horsepower
10
Input Current
37 Amp (Normal Duty), 28 Amp (Heavy Duty)
Input Voltage
200 to 240 Volt AC at 50/60 Hertz 3-Phase, 270 to 340 Volt DC
Output Voltage
200 to 240 Volt AC at 0 to 400 Hertz 3-Phase
Amperage Rating
30
Constant Torque HP
10 HP (Normal Duty), 7.5 HP (Heavy Duty)
Constant Torque Current
30 Amp (Normal Duty), 25 Amp (Heavy Duty)
Features
  • Closed or open loop vector control for outstanding regulation, torque production, and position control capability
  • Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature
  • High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors
  • Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand
  • High Slip Braking reduces installation cost and the need for dynamic braking resistors
  • Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost
  • DriveWizard computer software and Application Sets for easy configuration
  • Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed
  • Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3)
  • Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers
  • USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
  • Removable terminal board with configuration storage provides convenience of configuration backup
  • Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction
  • Kinetic Energy Braking allows drive to remain in control during momentary power losses
  • Integrated 12 Pulse version provides a cost effective solution for low harmonics
  • Flange version provides NEMA 12 backside integrity when mounting with heatsink external
YASKWA_CIMR_AU2A0030FAA_CAD
YASKWAE00010_4_12_15_16_42
YASKWAE00017_1
YASKWAE00032_1_2
YASKWAINST00005
Yaskawa_CIMR_AU4A0414AAA_Catalog
Yaskawa_CIMR_AU4A0414AAA_Specification_Sheet
Qty Unit price
Ea
1 $1,172.18

Slqt
1 $1,172.18

Stpk
1 $1,172.18

Unit
1 $1,172.18
