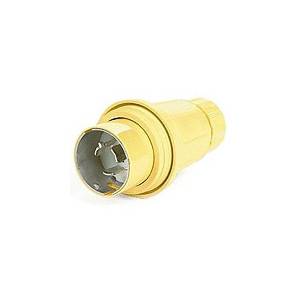

250 V 50 A Non-NEMA, Molex LLC 130155-0155 Watertite® Locking Device Blade Plug
Share Share Print Print
Molex

250 V 50 A Non-NEMA, Molex LLC 130155-0155 Watertite® Locking Device Blade Plug

Short Description

250 V, 50 A, 2-Pole, 3-Wire, Non-NEMA, Yellow, NEoTEX Paracril OZO Rubber, Polarized, Locking Device Blade Plug

Locking Device Blade Plug; Type Polarized; Constructional Feature Chemical/Abrasion/Vapor Resistant, Water Tight; Configuration Non-NEMA Locking; Voltage Rating 250 Volt; Current Rating 50 Amp; Number of Poles 2; Number of Wires 3; Material Neotex Paracril Ozo Rubber; Color Yellow; Cord Size 0.875 to 1.375 Inch; Approval UL, CSA, NSF; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location

MFG #: 130155-0155

EECO #: WHCS82W65

Brand: Woodhead
UPC #: 786788014544
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Approval
UL, CSA, NSF
Material
Neotex Paracril Ozo Rubber
Current Rating
50 Amp
Voltage Rating
250 Volt
Number Of Poles
2
Number of Wires
3
Type
Polarized Plug
Cord Size
0.875 to 1.375 Inch
Configuration
Non-NEMA Locking
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Color Coded 1/4 Inch Terminal Screws Preset in Open Position, Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • 2-Piece Cord Clamp Strain Relief Includes Tri-Drive Screws to Firmly Secure the Cord
  • RoHS Compliant
DANWODE02258_1
MOLEXME00366_D4_D8_D34_D127
Qty Unit price
Ea
1 $104.74

Slqt
1 $104.74

Stpk
1 $104.74

Unit
1 $104.74
