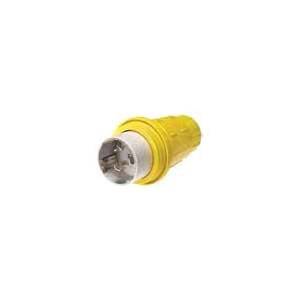

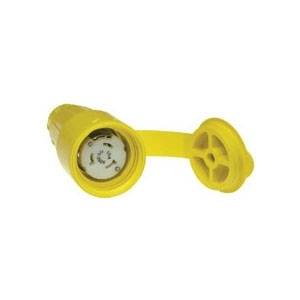

480 VAC 50 A Non-NEMA, Molex, LLC CS81W64 Watertite® Locking Device Connector

Short Description

480 VC, 50 A, 3-Phase, 3-Pole, 4-Wire, 1 to 1.375" Cord, Non-NEMA Locking, Yellow, NEoTEX Paracril OZO Rubber, Grounding, Polarized, Locking Device Connector

Locking Device Connector; Type Polarized; Constructional Feature Water Tight, Chemical Resistant, Abrasion Resistant, Vapor Resistant; Configuration Non-NEMA Locking; Voltage Rating 480 Volt AC 3-Phase; Current Rating 50 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material NEoTEX Paracril OZO Rubber; Color Yellow; Cord Size 1 to 1.375 Inch; Approval UL E10176, CSA LR6837; Enclosure Type IP67; Cord Grip Body Size 1-1/4 Inch F5; Temperature Rating -40 to 75 Deg C; Pressure Rating 1000 PSI; Material Nickel-Plated Brass (Plug Blades and Connector Contact), Stainless Steel (Face Screw), Nylon (Face Insert), Brass (Wire Saddle Clamp), Lexan (Receptacle Coverplate and Closure Cap); Applicable NSF/ANSI/3-A 14159

MFG #: CS81W64

EECO #: WHCS81W64

Brand: Woodhead
UPC #: 786788014742
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121400
Approval
UL E10176, CSA LR6837
Material
NEoTEX Paracril OZO Rubber
Ground Type
Grounding
Current Rating
50 Amp
Voltage Rating
480 Volt AC 3-Phase
Number Of Poles
3
Number of Wires
4
Type
Polarized, Connector
Cord Size
1 to 1.375 Inch
Configuration
Non-NEMA Locking
Constructional Feature
Water Tight, Chemical Resistant, Abrasion Resistant, Vapor Resistant
Features
  • Color Coded 1/4 Inch Terminal Screws Preset in Open Position, Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • 2-Piece Cord Clamp Strain Relief Includes Tri-Drive Screws to Firmly Secure the Cord
Molex_00001_D47_D59_CAT
Molex_00017_1_SPEC
Qty Unit price
Ea
1 $135.82

Slqt
1 $135.82

Stpk
1 $135.82

Unit
1 $135.82
