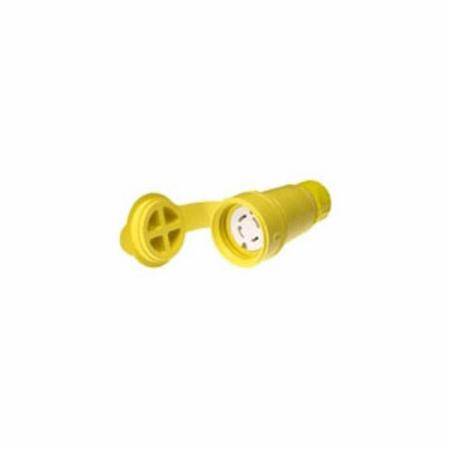

480 V 30 A L16-30R, Molex LLC 130147-0108 Watertite® Locking Device Blade Connector
Share Share Print Print
Molex

480 V 30 A L16-30R, Molex LLC 130147-0108 Watertite® Locking Device Blade Connector

Short Description

480 V, 3-Phase, 30 A, 3-Pole, 4-Wire, Yellow, NEoTEX Paracril OZO Rubber, NEMA L16-30R, Polarized, Locking Device Blade Connector

Locking Device Blade Connector; Type Polarized; Constructional Feature Chemical/Abrasion/Vapor Resistant, Water Tight; Configuration L16-30R; Voltage Rating 480 Volt 3-Phase; Current Rating 30 Amp; Number of Poles 3; Number of Wires 4; Material Neotex Paracril Ozo Rubber; Color Yellow; Cord Size 0.437 to 1.1 Inch; Approval UL, CSA, NSF; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location

MFG #: 130147-0108

EECO #: WH29W76

Brand: Woodhead
UPC #: 786788713348
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121413
Approval
UL, CSA, NSF
Material
Neotex Paracril Ozo Rubber
Current Rating
30 Amp
Voltage Rating
480 Volt 3-Phase
Number Of Poles
3
Number of Wires
4
Type
Polarized, Connector
Cord Size
0.437 to 1.1 Inch
Configuration
L16-30R
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Color Coded 1/4 Inch Terminal Screws Preset in Open Position, Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • 2-Piece Cord Clamp Strain Relief Includes Tri-Drive Screws to Firmly Secure the Cord
  • RoHS Compliant
DANWODE00244_1
MOLEXME00366_D4_D8_D44_D127
Qty Unit price
Ea
1 $65.46

Slqt
1 $65.46

Stpk
1 $65.46

Unit
1 $65.46
