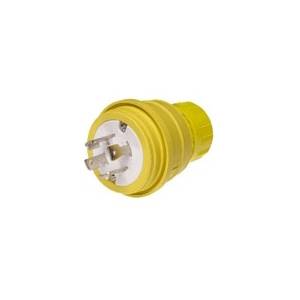

Woodhead® 28W75 130147 3-Phase Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Woodhead® 28W75 130147 3-Phase Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Woodhead® 28W75 130147 3-Phase Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Woodhead® 28W75 130147 3-Phase Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Share Share Print Print
Molex

Woodhead® 28W75 130147 3-Phase Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Short Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

Woodhead®, 28W75, Plug, 3-Phase, Series: 130147, 250 VAC, 30 A, 3 Pole, 4 Wires, L15-30 NEMA Rating, Industrial Grade, NEMA 1/3/4/4X/5/6/6P/12/IP67 Enclosure, 0.687 to 0.812 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow
MFG #: 28W75

EECO #: WH28W75

Brand: Woodhead
UPC #: 786788712334
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Approval
UL, CSA, NSF
Material
Rubber
Application
For wet location
Terminal Type
Screw
Current Rating
30 Amp
Voltage Rating
250
Number Of Poles
3
Number of Wires
4
Enclosure
NEMA 1/3/4/4X/5/6/6P/12/IP67
Temperature Rating
-40 to 75
Type
3-Phase
Grade
Industrial
Series
130147
Cord Size
0.437 to 1.1 Inch
Configuration
L15-30P
Amperage Rating
30
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
  • Color coded 1/4 in terminal screw preset in open position, ready to wire
  • Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strand are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seal cord without damaging the cord
  • Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
  • NEoTEX® Paracril OZO rubber outer housing and grommet
  • Nickel-plated brass plug blades and connector contacts
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Lexan receptacle cover plate and closure caps
  • F4 1 in cord grip body size
  • Male plug
DANWODE00409_1
MOLEXME00366_D4_D8_D43_D127
Woodhead_28W75_RoHS
IDW_DOCUMENT_cf0a2bf833aa358e026dd0414d079735dc3718a21c0cb907ae065e322fa58e87
IDW_DOCUMENT_86d48bf77e8dba99299813f009614c55b66f00a314b8f70d987da7412f76d37d
Qty Unit price
Ea
1 $38.79

Slqt
1 $38.79

Stpk
1 $38.79

Unit
1 $38.79
