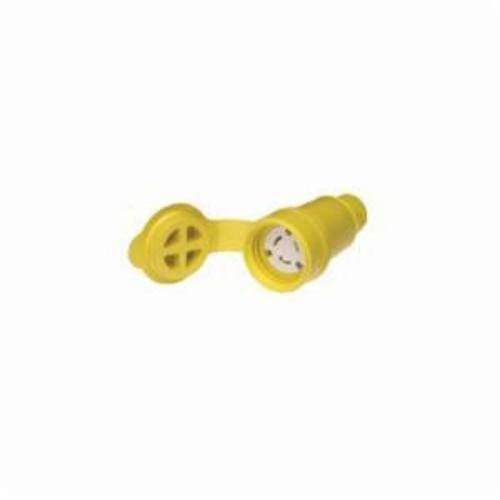

Woodhead® Watertite® 27W48 130147 Connector With Locking Blade, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Woodhead® Watertite® wet location wiring devices are rated for high pressure hose-down application upto 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression Type cord grips that provide 93 kg of pullout strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time-tested devices that professionals demand.

Woodhead® Watertite® Connector, Series: 130147, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, IP67 Enclosure, 11/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

MFG #: 27W48

EECO #: WH27W48

Brand: Woodhead
UPC #: 786788713126
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Rubber
Application
For breweries, dairies, food and beverage, wastewater treatment and water treatment
Terminal Type
Screw/Wire
Voltage Rating
250
Number of Wires
3
Enclosure
IP67
Temperature Rating
-40 to 75
Series
130147
Amperage Rating
20
Features
  • Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • Single receptacle
  • F3 3/4 in cord grip body size
  • Female connector
  • Nickel plated brass plug blades and connector contacts, NEoTEX® Paracril OZO rubber outer housing and grommet, stainless steel face screw nylon face insert brass wire saddle clamp, Lexan® receptacle cover plate and Closure caps
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
