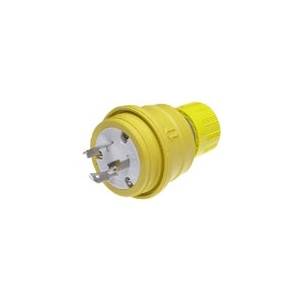

Woodhead® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow
Woodhead® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow
Woodhead® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow
Woodhead® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Molex

Woodhead® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

Woodhead®, 26W48, Locking Blade Plug, Series: 130147, 250 V, 20 A, 2 Pole, 3 Wires, NEMA L6-20 NEMA Rating, Industrial Grade, NEMA 1/3/4/4X/5/6/6P/12/IP67 Enclosure, 0.687 to 0.812 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow
MFG #: 26W48

EECO #: WH26W48

Brand: Woodhead
UPC #: 786788712129
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Approval
UL, CSA, NSF
Material
Rubber
Application
For wet location
Terminal Type
Screw
Current Rating
20 Amp
Voltage Rating
250
Number Of Poles
2
Number of Wires
3
Enclosure
NEMA 1/3/4/4X/5/6/6P/12/IP67
Temperature Rating
-40 to 75
Type
Polarized Plug
Grade
Industrial
Series
130147
Cord Size
0.187 to 0.812 Inch
Configuration
L6-20P
Amperage Rating
20
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • NEoTEX® Paracril OZO rubber outer housing and grommet
  • Nickel-plated brass plug blades and connector contacts
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Lexan receptacle cover plate and closure caps
  • F3 3/4 in cord grip body size
  • Male plug
DANWODE00398_1
MOLEXME00366_D4_D8_D30_D127
Woodhead_26W48_RoHS
Woodhead_26W48_Full_Engineering_Drawing
IDW_DOCUMENT_d1d2d4674fd60fbc72fc18f652fe3e8e625020917373c9671d3731a90df8f1a9
IDW_DOCUMENT_882ae52d68f10185c33520574c025ab530f2b9db2977b220e26c512d4048ec14
IDW_DOCUMENT_86d48bf77e8dba99299813f009614c55b66f00a314b8f70d987da7412f76d37d
Qty Unit price
Ea
1 $22.93

Slqt
1 $22.93

Stpk
1 $22.93

Unit
1 $22.93
