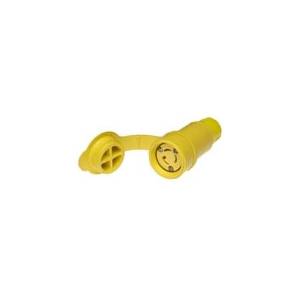

277 V 15 A L7-15R, Molex LLC 130146-0095 Watertite® Locking Device Blade Connector

Short Description

277 V, 15 A, 2-Pole, 3-Wire, Yellow, NEoTEX Paracril OZO Rubber, NEMA L7-15R, Polarized, Locking Device Blade Connector

Locking Device Blade Connector; Type Polarized; Constructional Feature Chemical/Abrasion/Vapor Resistant, Water Tight; Configuration L7-15R; Voltage Rating 277 Volt; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Material Neotex Paracril Ozo Rubber; Color Yellow; Cord Size 0.062 to 0.625 Inch; Approval UL, CSA, NSF; RoHS Compliant; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Application Wet Location

MFG #: 130146-0095

EECO #: WH25W34

Brand: Woodhead
UPC #: 786788713041
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121413
Approval
UL, CSA, NSF
Material
Neotex Paracril Ozo Rubber
Current Rating
15 amp
Voltage Rating
277 Volt
Number Of Poles
2
Number of Wires
3
Type
Polarized, Connector
Cord Size
0.062 to 0.625 Inch
Configuration
L7-15R
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Color Coded 1/4 Inch Terminal Screws Preset in Open Position, Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • 2-Piece Cord Clamp Strain Relief Includes Tri-Drive Screws to Firmly Secure the Cord
  • RoHS Compliant
DANWODE00392_1
MOLEXME00366_D4_D8_D26_D127
Qty Unit price
Ea
1 $26.93

Slqt
1 $26.93

Stpk
1 $26.93

Unit
1 $26.93
