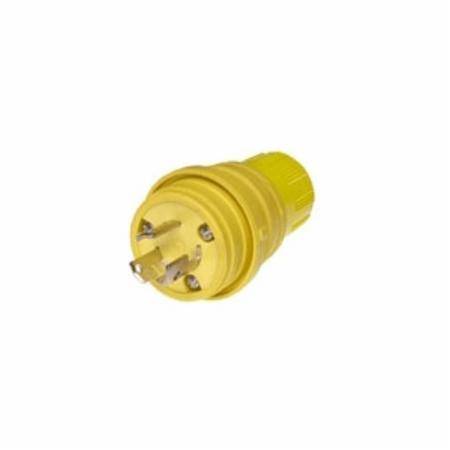

Woodhead® 24W47 130146 Locking Blade Plug, 125 V, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

Woodhead®, 24W47, Locking Blade Plug, Series: 130146, 125 V, 15 A, 2 Pole, 3 Wires, L5-15 NEMA Rating, Industrial Grade, NEMA 1/3/4/4X/5/6/6P/12/IP69K Enclosure, 0.125 to 0.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow
MFG #: 24W47

EECO #: WH24W47

Brand: Woodhead
UPC #: 786788712020
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Approval
UL, CSA, NSF
Material
Rubber
Application
For wet location
Terminal Type
Screw
Current Rating
15 amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Enclosure
NEMA 1/3/4/4X/5/6/6P/12/IP69K
Temperature Rating
-40 to 75
Type
Polarized Plug
Grade
Industrial
Series
130146
Cord Size
0.062 to 0.625 Inch
Configuration
L5-15P
Amperage Rating
15
Constructional Feature
Chemical/Abrasion/Vapor Resistant, Water Tight
Features
  • Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
  • Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • NEoTEX® Paracril OZO rubber outer housing and grommet
  • Nickel-plated brass plug blades and connector contacts
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Lexan receptacle cover plate and closure caps
  • F2 1/2 in cord grip body size
  • Male plug
DANWODE00390_1
MOLEXME00366_D4_D8_D22_D127
Woodhead_24W47_RoHS
Woodhead_24W47_Catalog
IDW_DOCUMENT_f0094bda03c8bf24bab264dcc5b2d6e222179d349551b586b18992be7489fb43
IDW_DOCUMENT_7ee7157f2dacd65af96ba3aa8bd8c57a7fad6ec1526b1c25281b52c381f9f054
Qty Unit price
Ea
1 $14.74

Slqt
1 $14.74

Stpk
1 $14.74

Unit
1 $14.74
