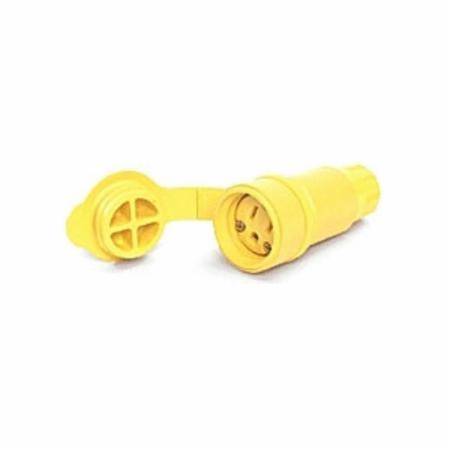

125 VAC 15 A 5-15R, Molex LLC 130146-0060 Watertite® Straight Blade Connector, Yellow
Share Share Print Print
Molex

125 VAC 15 A 5-15R, Molex LLC 130146-0060 Watertite® Straight Blade Connector, Yellow

Short Description

125 V, 15 A, 5-15R, 2-Pole, 3-Wire, Yellow, NEoTEX Paracril OZO Rubber, Water Tight, Straight Blade Connector

Straight Blade Connector; Constructional Feature Water Tight; Configuration 5-15R; Voltage Rating 125 Volt; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Color Yellow; Material Neotex Paracril Ozo Rubber; Approval UL, CSA, NSF; Enclosure Rating NEMA 1/3/4/4X/5/6/6P/12, IP55/56/57/65/66/67; Temperature Rating -40 to 75 Deg C

MFG #: 130146-0060

EECO #: WH15W47

Brand: Woodhead
UPC #: 786788711023
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121400
Approval
UL, CSA, NSF
Material
Neotex Paracril Ozo Rubber
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Water Tight Connector
Configuration
5-15R
Constructional Feature
Water Tight
Features
  • Multiple Seal Plug/Connector Interface Keeps Out Contaminants
  • Resists Vapor and Water from High-Pressure Wash Down Up to 1000 PSI
  • Color-Coded 1/4 inch Terminal Screws Pre-Set in Open Position Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square-Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Transparent Wiring Guide to Verify All Wire Strands are Place before Securing Wire
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • Three Piece Strain Relief Seals Cord without Damaging the Cord
DANWODE00561_1
MOLEXME00366_D4_D8_D9
Qty Unit price
Ea
1 $20.63

Slqt
1 $20.63

Stpk
1 $103.15

Unit
1 $20.63
