125 VAC 20 A 5-20P, Molex LLC 130146-0022 Watertite® Straight Blade Plug, Yellow
Share Share Print Print
Molex

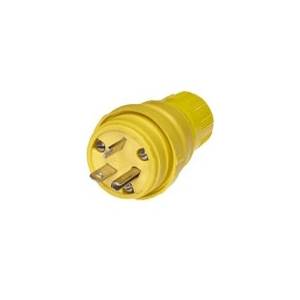

125 VAC 20 A 5-20P, Molex LLC 130146-0022 Watertite® Straight Blade Plug, Yellow

Short Description

125 V, 20 A, 5-20P, 2-Pole, 3-Wire, Yellow, NEoTEX Paracril OZO Rubber, Straight Blade Plug

Straight Blade Plug; Constructional Feature Water Tight; Configuration 5-20P; Voltage Rating 125 Volt; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Material Neotex Paracril Ozo Rubber; Color Yellow; Approval UL, CSA, NSF; Enclosure Rating NEMA 1/3/4/4X/5/6/6P/12, IP55/56/57/65/66/67; Temperature Rating -40 to 75 Deg C

MFG #: 130146-0022

EECO #: WH14W33

Brand: Woodhead
UPC #: 786788710224
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Approval
UL, CSA, NSF
Material
Neotex Paracril Ozo Rubber
Current Rating
20 Amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Straight Blade Plug
Configuration
5-20P
Constructional Feature
Water Tight
Features
  • Multiple Seal Plug/Connector Interface Keeps Out Contaminants
  • Resists Vapor and Water from High-Pressure Wash Down Up to 1000 PSI
  • Color-Coded 1/4 inch Terminal Screws Pre-Set in Open Position Ready to Wire
  • Wire Screw Terminals are Tri-Drive to be Used with Straight Blade, Phillips and Square-Drive Screw Drivers
  • Floating Blade Construction Provides Self-Alignment and a Better Mechanical and Electrical Connection Minimizing Wear and Heat Generation
  • Transparent Wiring Guide to Verify All Wire Strands are Place before Securing Wire
  • Captive, Tri-Drive Head, Stainless Steel, Speed Screw Provides Easy Assembly and Long Life
  • Three Piece Strain Relief Seals Cord without Damaging the Cord
DANWODE00552_1
MOLEXME00366_D4_D8_D14
Qty Unit price
Ea
1 $16.56

Slqt
1 $16.56

Stpk
1 $82.80

Unit
1 $16.56
