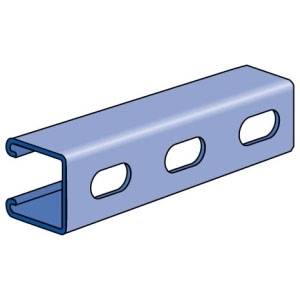

1-5/8" x 1-5/8" x 10', 12 Gauge, Unistrut P1000T-10-HG Channel Strut

Short Description

1-5/8" x 1-5/8" x 10', 0.555 Sq Inch, 12 Gauge, Hot Dip Galvanized, Low Carbon Steel, Slotted, Metal Framing, Single, Channel

Channel; Type Metal Framing, Single; Number of Channels 1; Configuration Slotted; Cross Section Area 0.555 Square Inch; Thickness 12 Gauge; Length 10 Foot; Width 1-5/8 Inch; Height 1-5/8 Inch; Center Spacing 2 Inch; Hole/Slot Size 1-1/8 Inch Length x 9/16 Inch Width (Slot); Material ASTM A1011 SS Grade 33 Low Carbon Steel; Process Cold Formed; Finish Hot Dip Galvanized; Column Load Rating 2700 Pound (0.65 Load Factor); Beam Load Rating 289 Pound; Deflection 1.4 Inch; Weight 196.1 Pound per 100 Foot; Applicable Standard UL E19459, CSA 013669

MFG #: P1000T-10-HG

EECO #: UNP1000T10HG

Brand: Unistrut
Attributes
Features
Documents
Product Information
Attributes
Finish
Hot Dip Galvanized
UNSPSC
30101804
Material
ASTM A1011 SS Grade 33 Low Carbon Steel
Number of Channels
1
Type
Metal Framing, Single
Width
1-5/8 Inch
Height
1-5/8 Inch
Weight
196.1 Pound per 100 Foot
Process
Cold Formed
Thickness
12 Gauge
Deflection
1.4 Inch
Configuration
Slotted
Center Spacing
2 Inch
Hole/Slot Size
1-1/8 Inch Length x 9/16 Inch Width (Slot)
Beam Load Rating
289 Pound
Column Load Rating
2700 Pound (0.65 Load Factor)
Cross Section Area
0.555 Square Inch
Applicable Standard
UL E19459, CSA 013669
Features
  • Dimensions: 1-5/8" x 1-5/8" x 10' (Width x Height x Length)
  • Material: ASTM A1011 SS Grade 33 Low Carbon Steel
  • Thickness: 12 Gauge
  • Configuration: Slotted, Single Channel
  • Cross Section Area: 0.555 Square Inch
  • Center Spacing: 2 Inch

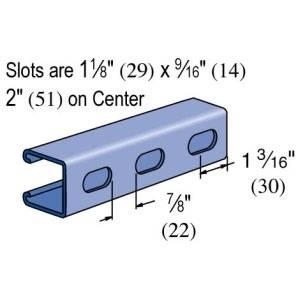

  • Hole/Slot Size: 1-1/8 Inch Length x 9/16 Inch Width
  • Finish: Hot Dip Galvanized
  • Column Load Rating: 2700 Pounds (0.65 Load Factor)
  • Beam Load Rating: 289 Pounds
  • Deflection: 1.4 Inch
  • Weight: 196.1 Pounds per 100 Feet
  • Applicable Standards: UL E19459, CSA 013669
