Turck PT3000PSIG-13-LI3-H1131 PT Series Pressure Transmitter With 2-Wire Current Output, <2 ms Response, Analog Output, 8 to 33 VDC

Short Description

22.8 MM x 70 MM, 8 to 33 VDC, 4 to 20 mA, 3000 PSIG, 1/4"-18 MPT, Stainless Steel/Plastic, Pressure Transmitter

Turck Pressure Transmitter, Series: PT Series,

MFG #: PT3000PSIG-13-LI3-H1131

EECO #: TUPT3000PSIG13LI3H1131

Brand: Turck
UPC #: 047101165975
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41112410
Accuracy
+/-0.5 Percent
Material
Stainless Steel/Plastic
Output Type
Analog
Response Time
<2
Enclosure Type
IP67
Voltage Rating
8 to 33
Connection Type
M12x1 Male
Housing Material
Stainless Steel/Plastic
Enclosure
IP67
Operating Temperature
-40 to 85
Environmental Conditions
100 g Shock Resistance, 20 g Vibration Resistance
Output Current Signal Range
4 to 20 Milliamp

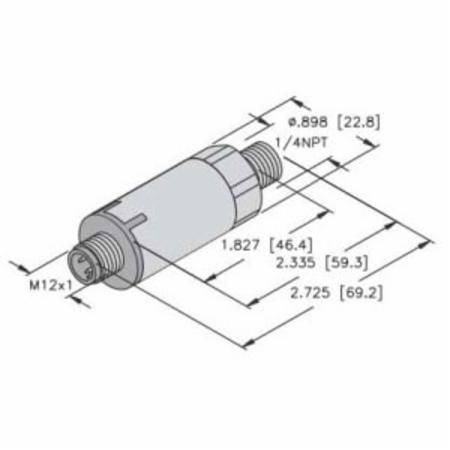

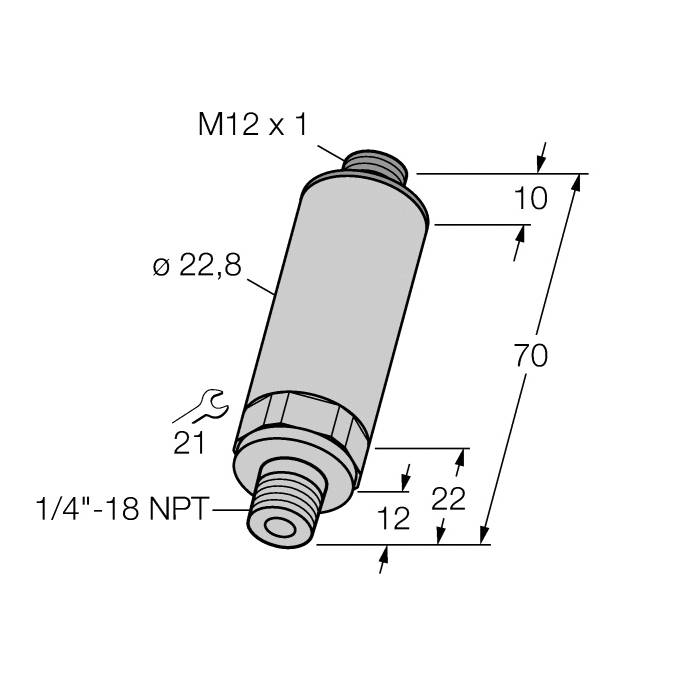

Size
22.8 mm Dia x 70 mm L
Series
PT Series
Pressure Range
0 to 3000 PSIG
Amperage Rating
4 to 20
Pressure Rating
0 to 3000
Process Connection
1/4 Inch-18 Male Threaded
Output Voltage Signal Range
0 to 10 Volt
Maximum Operating Pressure in psi
3000 PSIG
Features
  • Compact and robust design
  • Pressure connection with integrated peak pressure aperture
  • Minimum influence of temperature on accuracy within the entire temperature range of -40 to 125 deg C
  • Excellent EMC properties
  • Without display
