Turck Inc. M6827214 I/O System Gateway

Short Description

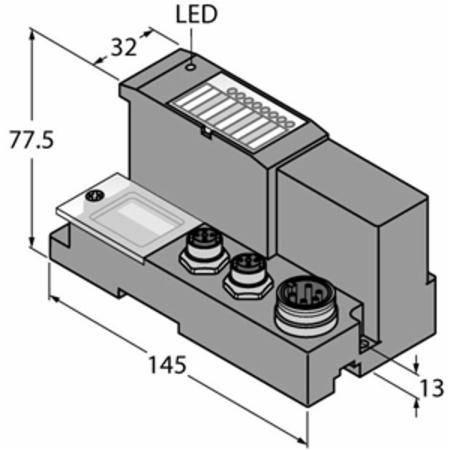

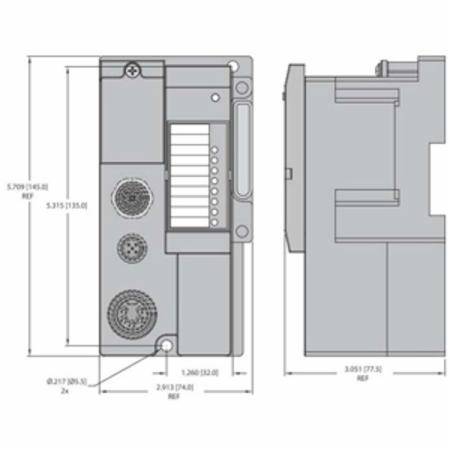

145 MM x 74 MM x 77.5 MM, 24 VDC, -40 to 70 Deg C, 4-Pin, I/O System Gateway

I/O System Gateway; Protocol TCP, PROFINET, Ethernet/IP, Modbus; Voltage 24 Volt DC; Height 77.5 Millimeter; Length 145 Millimeter; Width 74 Millimeter; Transmission Rate 10/100 Megabit per Second, Full/Half Duplex, Auto Negotiation, Auto Crossing; Load Current 10 Amp; Number of TCP Connection 6; Number of Pins 4; Temperature Rating -40 to 70 Deg C; Enclosure Rating IP67; Approval UL (Canada and US)

MFG #: M6827214

EECO #: TUBL67GWEN

Brand: Turck
UPC #: 047101109382
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222605
Voltage
24 Volt DC
Height
77.5 Millimeter
Protocol
TCP, PROFINET, Ethernet/IP, Modbus
Features
  • Bl67 Gateways are the Head Component of a Bl67 Station
  • They are Designed to Connect the Modular Fieldbus Nodes to the Higher Level Fieldbus
  • 3 Decimal Rotary Coding Switch
  • LED for Display of Supply Voltage, Group and Bus Error
  • PROFINET Supports Fast Start-Up (FSU)
TURCKIE00248_D1_D3_D5
TURCKIE00362_1_3
TURCKIINST00013
Qty Unit price
Ea
1 $377.02

Slqt
1 $377.02

Stpk
1 $377.02

Unit
1 $377.02
