Turck 6827170 BL67 Electronic Module, 8 Inputs
Share Share Print Print
Turck

Turck 6827170 BL67 Electronic Module, 8 Inputs

Short Description

BL67 Electronic Modules are plugged on the purely passive base modules which in turn are connected to the field devices. The separation of connection level and electronics simplifies maintenance considerably. Flexibility is enhanced because the user can choose between base modules with different connection technologies. The Electronic Modules are completely independent of the higher level fieldbus through the use of gateways.

Turck Electronic Module, Series: BL67, 8 Inputs, 24 VDC,

MFG #: 6827170

EECO #: TUBL678DIP

Brand: Turck
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Terminal Type
Screw
Voltage Rating
24
Number of Inputs
8.0000
Temperature Rating
-40 to 70
Series
BL67

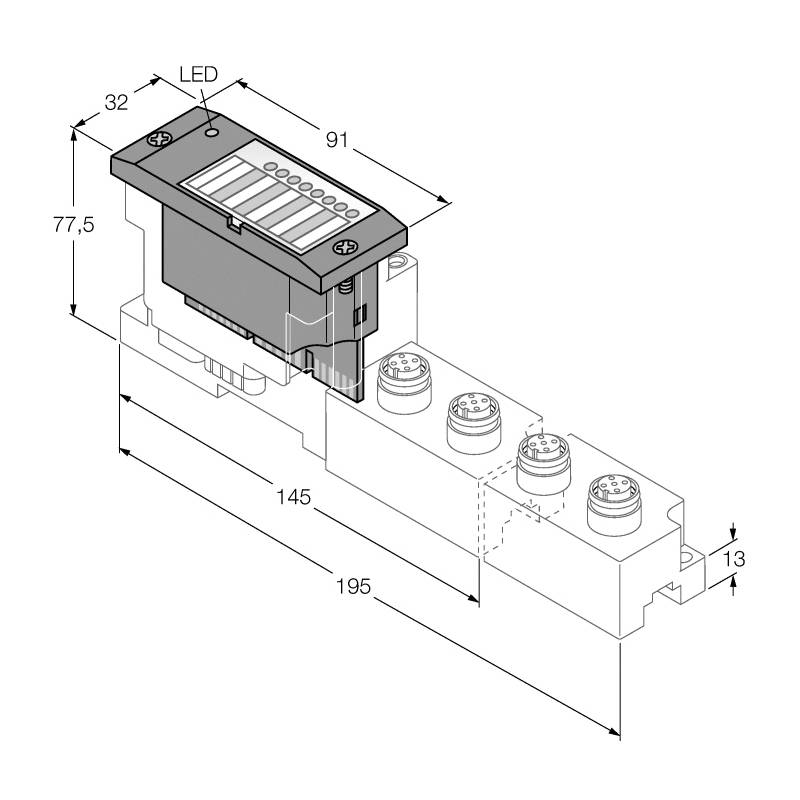

Dimensions
91 mm L x 32 mm W x 59 mm H
Amperage Rating
<=30
Features
  • Independent of the type of fieldbus and connection technology used
  • LED indicate status and diagnostic
  • Electronics galvanically separated from the field level via optocouplers
  • PNP switching
  • From version VN 01-03 and higher, the module supports accelerated start-up for applications with Fast Start-Up (FSU) and QuickConnect (QC)
