Turck 13410 Embeddable Rectangular Shielded Inductive Sensor, 2-Wire AC/DC Output, 1NO-1NC Contact, 20 to 250 VAC/10 to 300 VDC

Short Description

Turck inductive Proximity Sensors are manufactured with a shielded coil, designated by "Bi" in the part number and a non-shielded coil, designated by "Ni" in the part number. Embeddable (shielded) units may be safely flush mounted in metal. Non-embeddable (non-shielded) units require a metal-free area around the sensing face. Because of possible interference of the electro-magnetic fields generated by the oscillators, minimum spacing is required between adjacent or opposing sensors. It is good engineering practice to mount sensors horizontally or with the sensing face looking down. Avoid sensors that look up wherever possible, especially if metal filings and chips are present.

Turck Inductive Sensor, Embeddable Rectangular Shielded, 15 mm Sensing Distance, Side/Rotatable Sensing Position, <=2% Full Scale Accuracy, 2-Wire AC/DC Output, 1NO-1NC Contact Configuration, 20 to 250 VAC/10 to 300 VDC, <=400/300 mA, 20/50 to 60 Hz Frequency Response, Terminal Chamber Connection, 114 mm L x 40 mm W x 40 mm H Size, IP67 Enclosure, -25 to 70 deg C, Flush Mounting, Plastic, Environmental Conditions: 55 Hz Vibration Resistance, 30 g Shock Resistance
MFG #: 13410

EECO #: TUBI15CP40FZ3X2S10

Brand: Turck
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111926
Accuracy
<=2% Full Scale
Material
Plastic
Application
Industrial Automation Applications
Output Type
2-Wire AC/DC
Mounting Type
Flush
Enclosure Type
IP67
Voltage Rating
20 to 250 VAC/10 to 300 VDC
Connection Type
Terminal Chamber
Sensing Position
Side/Rotatable
Frequency Response
20/50 to 60
Temperature Rating
-25 to 70
Contact Configuration
1NO+1NC
Environmental Conditions
55 Hz Vibration Resistance, 30 g Shock Resistance
Size

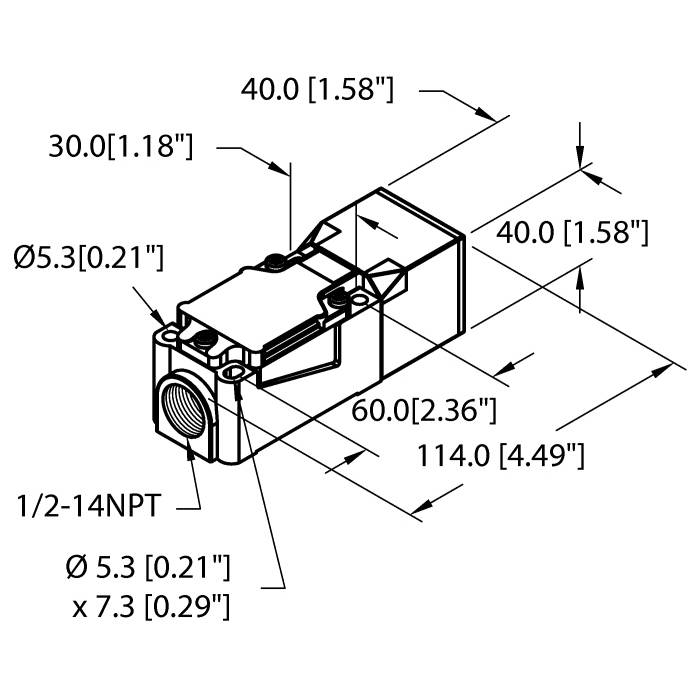

114 mm L x 40 mm W x 40 mm H
Type
Embeddable Rectangular Shielded
Warranty
Lifetime
Amperage Rating
<=400/300
Sensing Distance
15
Features
  • Variable orientation of active face in nine directions
  • Plastic, PBT-GF30-VO
  • High luminance corner LED
  • Optimum view on supply voltage and switching state from any position
  • Mounting base with 1/2-14 NPT thread
  • Combiprox® plastic housing, terminal chamber base with removable sensor
